ARTHUR HOLM ERT 30 User Manual page 10

Ip to rs422 interface control
Hide thumbs

Advertisement

User manual

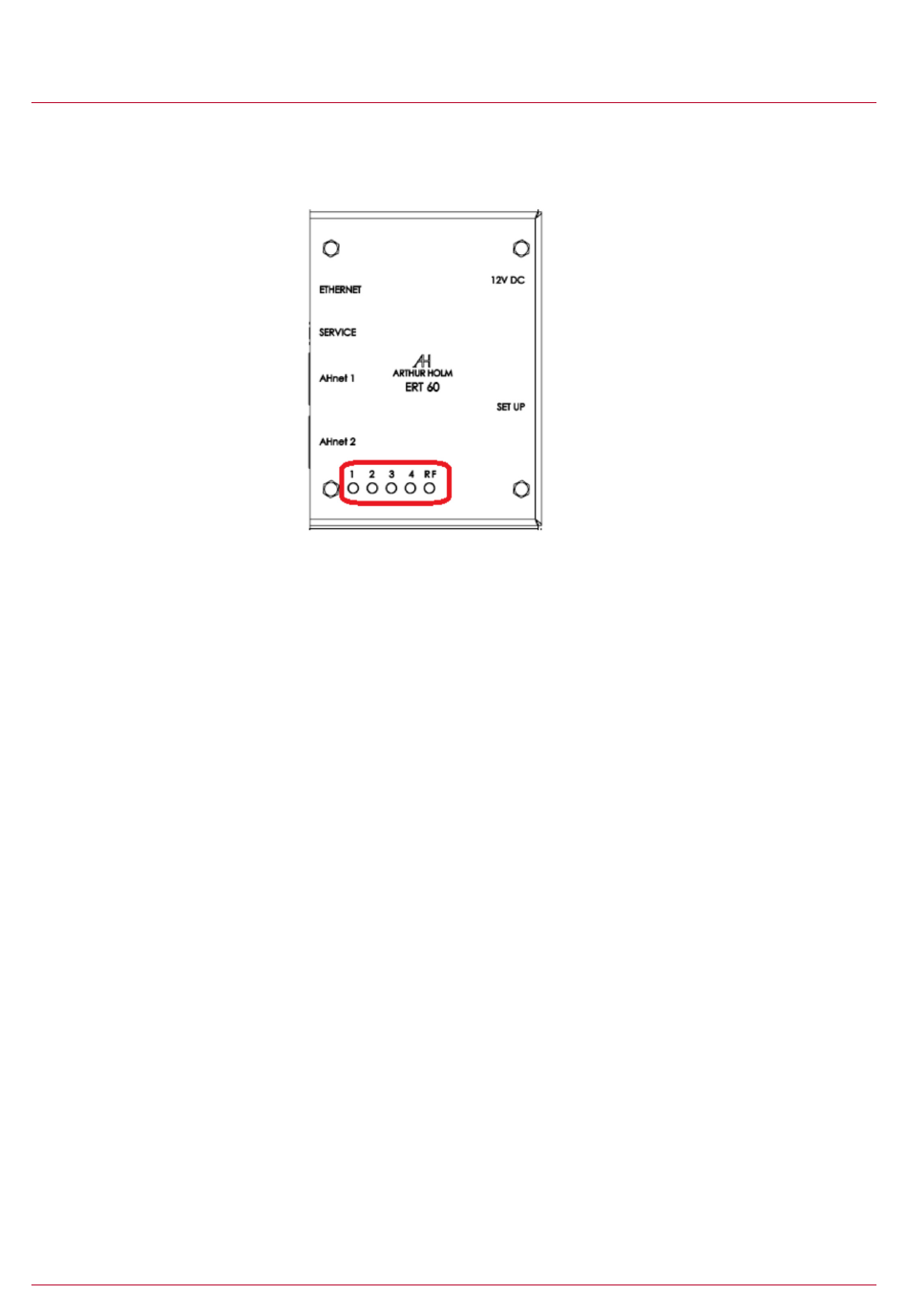

LEDs sytem indicators
1.
LED1: Change the state when an AHnet command is received from the two RS422 ports (AHnet1 or AHnet2)
2. LED2: Change the state when the unit receives data from the local network port (ETHERNET)
3. LED3: Not used
4. LED4: Change the state when the unit send an AHnet command when the automatic AHnet ID configuration is activated
(DIP2). The ERT interface sends commands to the units connected on AHnet1 and AHnet2 to automatic configure the AHnet
ID on each unit
5. RF: Brigths when a mobile or tablet is connected to the unit to control and configure the ERT using the AHlink APP
