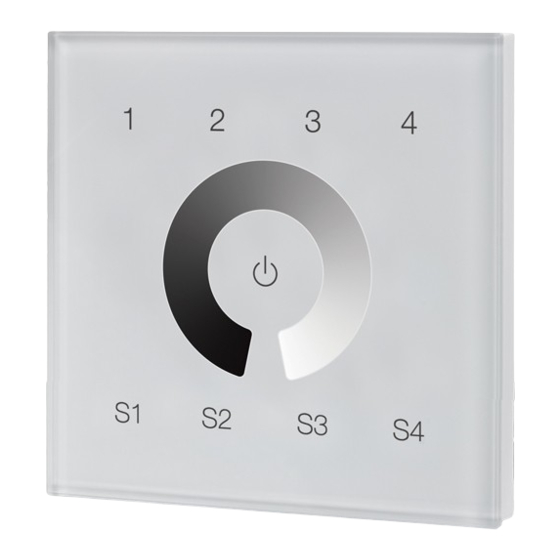

ZigBee Wireless Touch Dimmer Switch
Important: Read All Instructions Prior to Installation
Function introduction
Group buttons, click to choose a group,
press and hold down to turn ON/OFF it
LED indicator
Brightness wheel, slide
clockwise to increase
light intensity, slide
counter-clockwise to
decrease light intensity
Scene buttons, press and hold down
to save a scene, click to recall it.
19.4 mm
AC Power input
All ON/OFF button, click to
switch ON/OFF all paired
lighting devices
Press and hold down to search
and pair to ZigBee network or
factory reset the dimmer
switch.
Note: This remote supports
4 groups for binding max. 30
lighting devices. 4 scenes
can be saved and recalled
for each group.
Front side
60.3 mm
52.0 mm
ZigBee Controller
L
N
Back side
Product Data
09.ZG2TC4.04786
Protocol
Input Voltage
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Basic
• Power Configuration
Output clusters:
• Identify
• Scenes
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
Operation
1.This ZigBee dim remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control
single color ZigBee lighting devices.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the remote from
previous zigbee network if it has
already been added to it, otherwise
pairing will fail. Please refer to the
part "Factory Reset Manually".
Step 3: Press and hold down until
LED indicator turns on.
• ZigBee wireless dimmer switch based on ZigBee 3.0
ZigBee 3.0
• Full touch glass interface, smooth light intensity
100-240VAC
control
• Enables to pair ZigBee lighting devices via touchlink
2.4GHz
commissioning without coordinator
30m
• Supports find and bind mode to pair with ZigBee
lighting devices
IP20
• Supports 4 groups for binding max. 30 lighting devices
• 2.4 GHz global operation
0.1%-100%
• Transmission range up to 30m
86x86x29.1mm
• Compatible with universal ZigBee Gateway products
• Compatible with universal ZigBee dimmable lighting
devices
• Identify
• Diagnostics
• Group
• On/off
• Level control
LED indicator
Step 2: From your zigbee
controller or hub interface, choose
to add device or accessory and
enter Pairing mode as instructed
by the controller.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network.
Indicator will then blink 5 times
quickly for successful pairing.
• Ota
