Cross Technologies 2005-02P4 Instruction Manual

Upconverters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

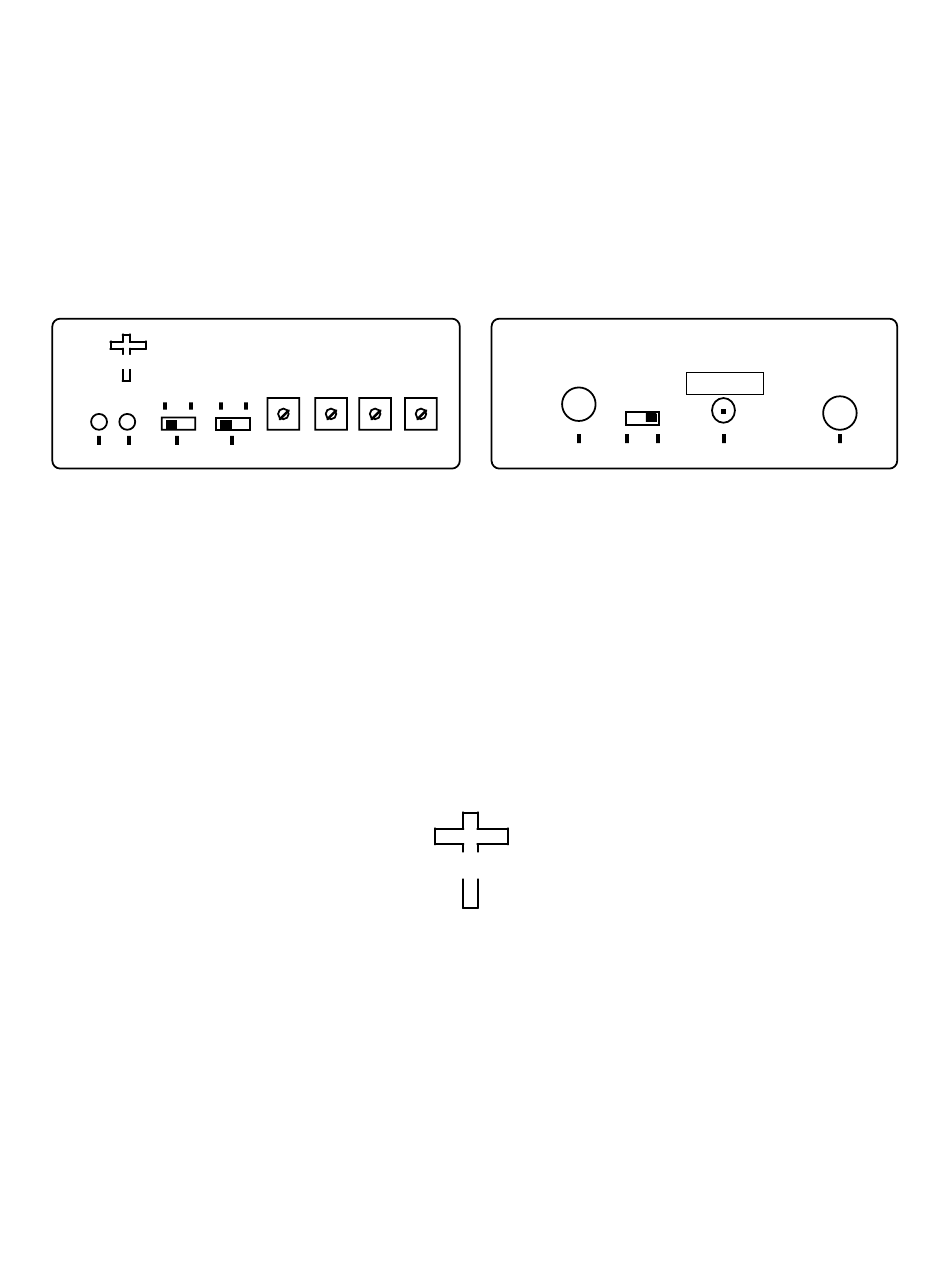

Instruction Manual
2005 TEST UPCONVERTER
C
T
ROSS
ECHNOLOGIES, INC.
C KU
70 140
DC
ALARM
LO
IF
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
GHz
100MHz
10MHz 1MHz
FREQUENCY
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2005-02P4/03P4
C
T
ROSS
ECHNOLOGIES, INC.
IF IN
GAIN
J1
HI LOW
Upconverters
August 2019, Rev. J
DC POWER
RF OUT
+DC IN
+15V, 600 ma
J3
J2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2005-02P4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 2005-02P4

Summary of Contents for Cross Technologies 2005-02P4

  • Page 1 HI LOW Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    WARRANTY - The following warranty applies to all Cross Technologies, Inc. products. All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies.

  • Page 3: General

    These IF signals must be “clean”(contain only the desired 70 or 140 MHz signal). The 2005-02P4, for loop-back applications, converts a 70 MHz signal to a 950-2050 MHz output signal range in 1 MHz steps utilizing a high-side LO (C-band) that ranges from 1020 to 2120 MHz. The 2005-02 can also...

  • Page 4: Technical Characteristics

    1.2 Technical Characteristics TABLE 1.1 2005 Upconverter Specifications Input Characteristics 75 Ω Impedance Return Loss 12 dB Frequency 70 or 140 MHz center Input Level -10 to -40 dBm Input 1 dB comp / 3rd order 0 / +10 dBm (low gain), -20 / -10 dBm (high gain) Output Characteristics 75 Ω...

  • Page 5: Installation

    2.0 Installation 2.1 Mechanical The 2005 is packaged in an aluminum extrusion. The -R option is mounted on a 1 3/4” X 19”panel that can be mounted to a rack using the 4 holes at the ends. Both units derive +DC from the RF out center conductor (+14 to +20 VDC) or the wall power supply (+15VDC unregulated).

  • Page 6: Accessing The Pc Card

    2.4 Accessing the PC Card There are NO USER JUMPERS or other on-card controls. ALTHOUGH IT IS NOT RECOMMENDED AND MAY VOID THE WARRANTY the following explains how to remove the printed circuit board (PCB) from the extrusion: 1. Always remove power when installing or removing the PCB from the extrusion 2.

  • Page 7: Operation

    Figure 2.2). There is no muting of the output carrier during frequency selection. If the switches are set to an invalid frequency, alarm LED DS2 will light. 2.5.3 LO and IF for the 2005-02P4 The 2005-02 operates over it’s full 950 to 2050 MHz range with high side LO and 70 MHz input. Normally, LNB’s use high side LO for C-band and low side LO for Ku-band.

  • Page 8: Environmental Use Information

    3.0 Environmental Use Information A. Elevated operating ambient temperature - if installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack may be greater than room ambient temperature. Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature). B.
  • Page 9 ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com Printed in USA 2005-02/03 Manual, Rev. J Page 9 08/14/2019...

This manual is also suitable for:

2005-03p4
