Model 2015-03A
Instruction Manual
Upconverter
September 2018, Rev. 0

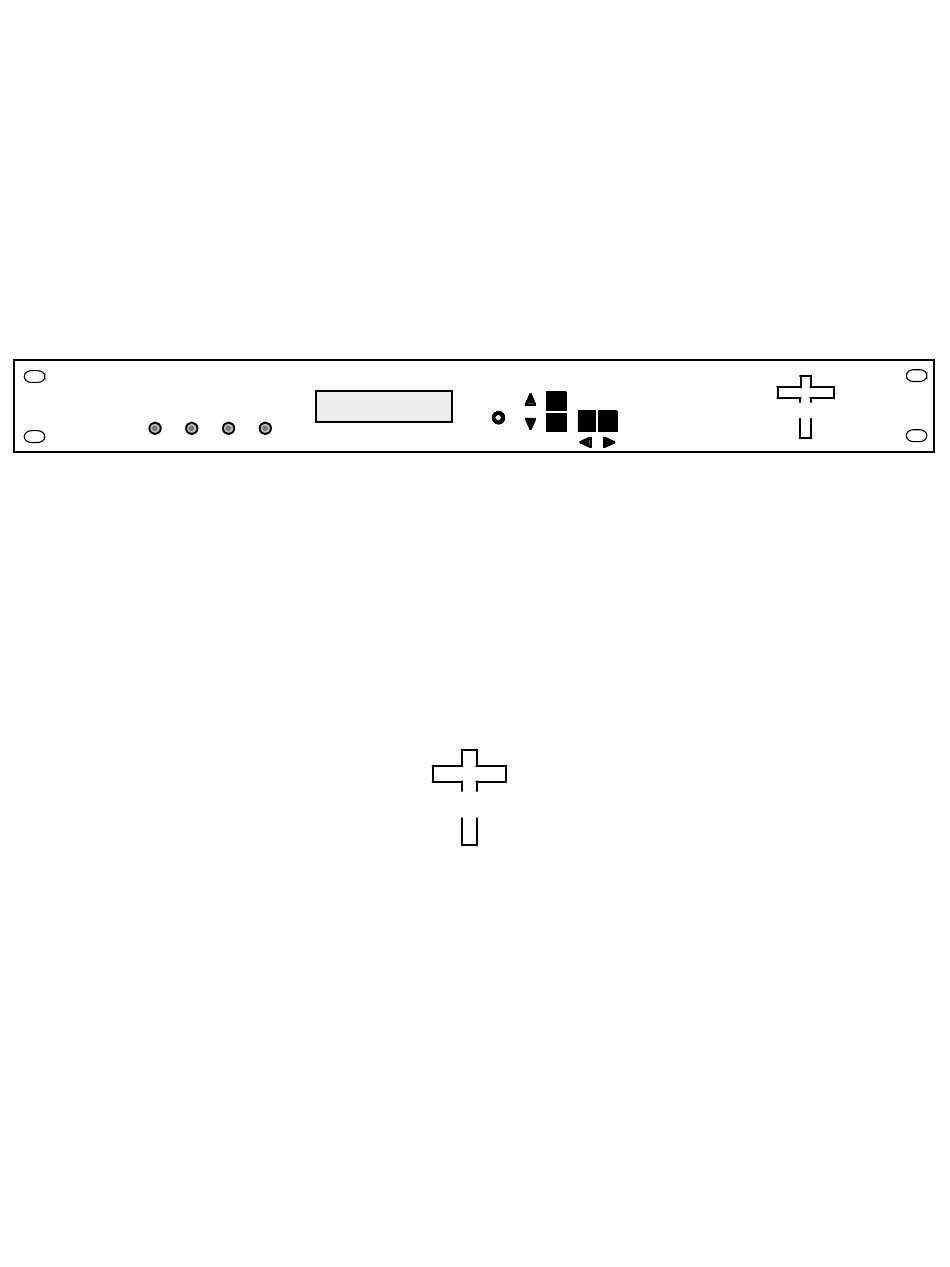

MODEL 2015
UPCONVERTER
F=1525
G=+05
MENU
C
T
ROSS
ECHNOLOGIES INC.
EXECUTE
REMOTE POWER
MUTE
ALARM
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
