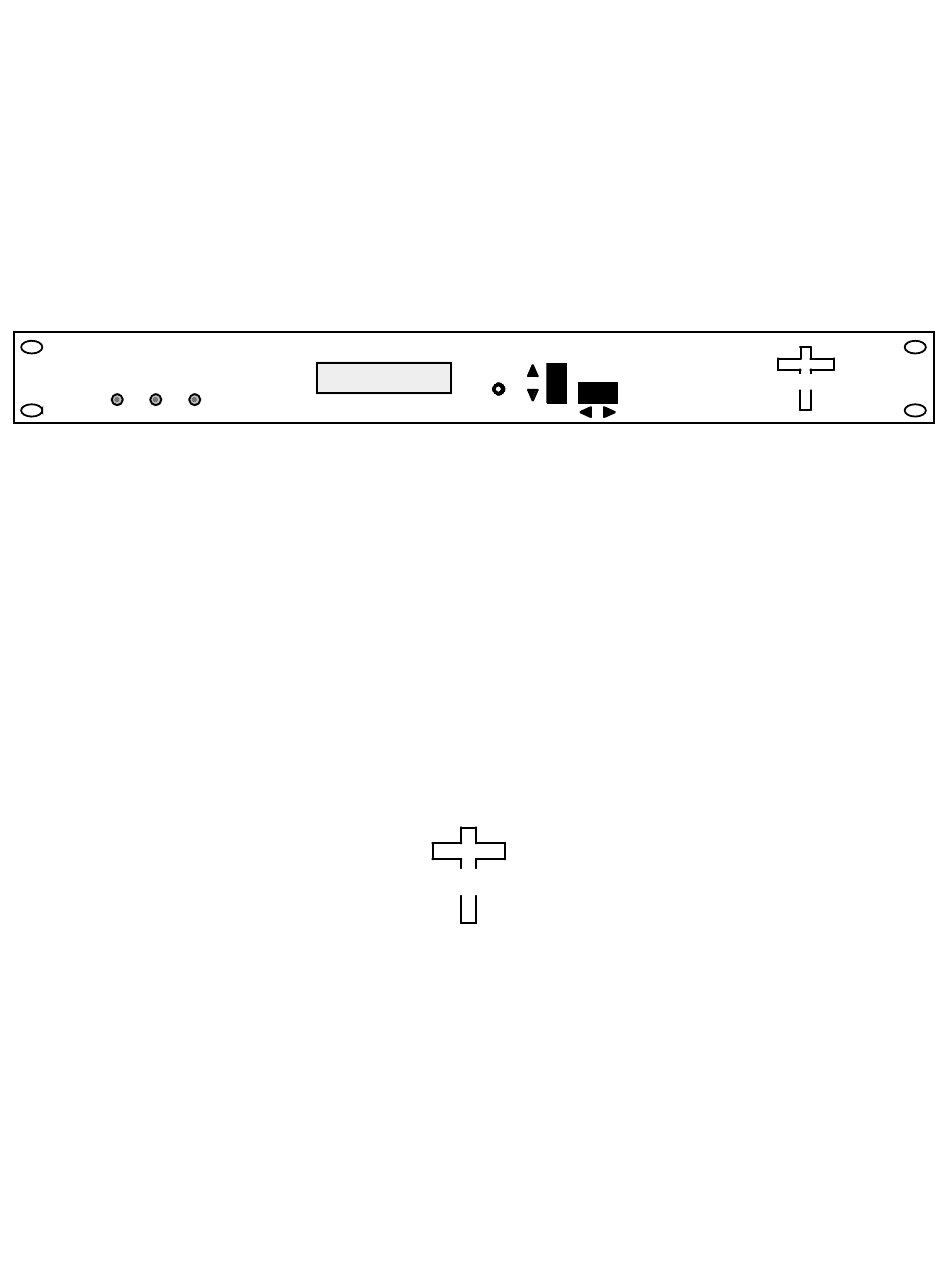

Instruction Manual
ALARM
REMOTE
POWER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
F = 5950.125
MENU
G = +30.0
EXECUTE
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2016-57
Downconverter
July 2020, Rev.0
MODEL 2016
DOWNCONVERTER
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2016-57 and is the answer not in the manual?

Questions and answers

Related Manuals for Cross Technologies 2016-57

Summary of Contents for Cross Technologies 2016-57

  • Page 1 POWER Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    1.0 General 1.1 Equipment Description The 2016-57 Downconverter converts 5.845 to 6.725 GHz to 70 ± 18 MHz in 125 kHz steps (1 kHz steps, option X1005) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection with ±0.01 ppm stability.

  • Page 4: Technical Characteristics

    1.2 Technical Characteristics TABLE 1.0 2016-57 Downconverter Specifications* Input Characteristics (RF) Impedance/Return Loss 50Ω / 14 dB min. Frequency 5.845 to 6.725 GHz Noise Figure, maimum 15 dB (max. gain) Level -70 to -30 dBm Output Characteristics (IF) Impedance/Return Loss 75Ω...
  • Page 5 1 kHz Frequency step Remote M&C Interface: RS485/422 Ethernet;with Web Browser (WB) Ethernet;with Web Browser (WB) & SNMP Ethernet with TCP/IP, Telnet Connector Options See TABLE 2.2 *+10˚C to +40˚C; Specifications subject to change without notice 2016-57 Manual, Rev 0. Page 5 7/14/20...

  • Page 6: Monitor & Control Interface

    A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C, RS-422, or RS-485 - Option-Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&CPort...
  • Page 7 B) Status Requests Table 1.1 lists the status requests for the 2016-57 and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. TABLE 1.1 2016-57 Status Re e quests...
  • Page 8 C) Commands Table 1.2 lists the commands for the 2016-57 and briefly describes them. After a command is sent the 2016-57 sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...

  • Page 9: Installation

    2.1 Mechanical The 2016-57 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-57 can be secured to a rack using the 4 holes on the front panel.

  • Page 10: Front Panel Controls & Indicators

    Menu items when in program mode. Does not which values are being adjusted. Does function in the normal display mode not function in the normal display mode FIGURE 2.3 2016-57 Front Panel Controls and Indicators 2016-57 Manual, Rev 0. Page 10 7/14/20...

  • Page 11: Operation

    2.4 Operation 2.4.1 Installing and Operating the 2016-57 Downconverter 1. Connect a -70 dBm to -30 dBm signal to RF IN, J2 (Figure 2.2) 2. Connect the IF OUT, J1, to the external equipment 3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.

  • Page 12: Menu Settings

    If programming is initiated and no operator action takes place for approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2016-57 Manual, Rev 0. Page 12 7/14/20...
  • Page 13 During frequency, gain changes, the vertical movement will raise or lower the number in the direction of the arrows. b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2016-57 Manual, Rev 0. Page 13 7/14/20...
  • Page 14 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F = 5950.125 G = +30 Figure 2.5 gives the menu items and how to make changes. 2016-57 Manual, Rev 0. Page 14 7/14/20...
  • Page 15 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F = 5950.125 G = +30 Figure 2.5 gives the menu items and how to make changes. 2016-57 Manual, Rev 0. Page 15 7/14/20...
  • Page 16 Menu 6 Set RS-485 Address SCROLL PUSH BUTTON (option Q) SAVE SETTINGS? Save? When “R” is selected or at SCROLL <> PUSH BUTTON the end of the menu options FIGURE 2.5 Menu Display and Sequence 2016-57 Manual, Rev 0. Page 16 7/14/20...

  • Page 17: Environmental Use Information

    F. Top Cover - There are no servicable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE RE-INSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2016-57 Manual, Rev 0. Page 17 7/14/20...
