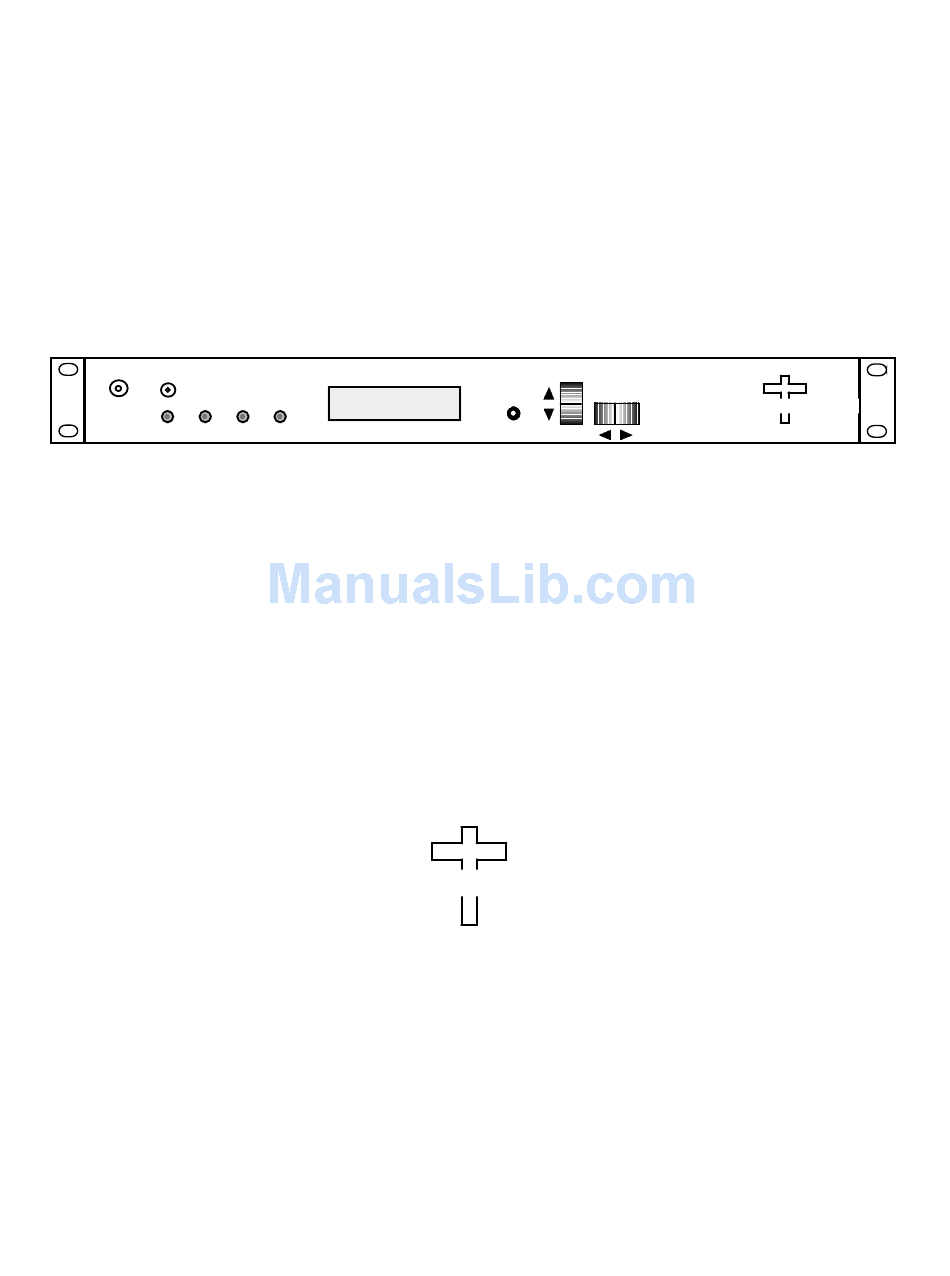

Instruction Manual
IF MONITOR
RF MONITOR
REMOTE POWER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
F = 5950.000
G = +10.0
MUTE
ALARM
C
T
ROSS
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
MENU
EXECUTE
ECHNOLOGIES, INC.
Model 2015-58T
Upconverter
November 2012, Rev. D
MODEL 2015
UPCONVERTER
C
T
ROSS
ECHNOLOGIES INC.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cross Technologies 2015-58T
Summary of Contents for Cross Technologies 2015-58T
- Page 1 REMOTE POWER MUTE ALARM Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. Printed in USA.
-
Page 2: Table Of Contents
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products. All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. -
Page 3: General
IF input and 10MHz reference input and output, and Type N female for the RF output (other connector configurations available). The 2015-58T is powered by a 100-240 ±10% VAC power supply; and housed in a 1.75” X 19” X 16” rack mount chassis. -
Page 4: Technical Characteristics
Ethernet with Web Browser (WB) - W18 Ethernet with Web Browser & SNMP Connector / Impedance 50Ω Type N (RF), 50Ω BNC (IF) *+0 to +50 degrees C; Specifications subject to change without notice. 2015-58T Manual_Rev. D Page 4 11/29/12... -
Page 5: Monitor & Control Interface
1.3 Monitor and Control Interface A) Remote Serial Interface Protocol - RS-485, RS-422 or RS-232C (selectable), 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit. M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&C Port... - Page 6 B) Commands - Table 1.2 lists the commands for the 2015-58T and briefly describes them. After a command is sent the 2015-58T sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...
-
Page 7: Environmental Use Information
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2015-58T Manual_Rev. D Page 7 11/29/12... -
Page 8: Installation
2.1 Mechanical The 2015-58T consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assembly. The 2015-58T can be secured to a rack using the 4 holes on the front panel. -
Page 9: Front Panel Controls & Indicators
5845 to 6725 MHz (optional) 100-240 VAC, 47-63 Hz. -30 to -10 dBm input -20 to 0 dBm output FIGURE 2.2 2015-58T Rear Panel Inputs and Outputs Table 2.1 J10 Pinouts (RS-485/RS-422/RS-232C)* Table 2.1 J10 Pinouts Description Rx+ (RS-232C) Tx+ (RS-232C) -
Page 10: Operation
2.4 Installation / Operation 2.4.1 Installing and Operating the 2015-58T Upconverter 1. Connect a -30 dBm to -10 dBm, 70 MHz signal to IF IN, J4 (Figure 2.2) 2. Connect RF OUT, J5, to the external equipment. 3. Connect 100- 240 ±10% VAC, 47 - 63 Hz to AC input on the back panel. -
Page 11: Menu Settings
If programming is initiated and no operator action takes place for approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2015-58T Manual_Rev. D Page 11 11/29/12... - Page 12 A) During frequency, gain changes, the vertical movement will raise or lower the number in the direction of the arrows. B) For other functions such as Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2015-58T Manual_Rev. D Page 12 11/29/12...
- Page 13 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to the default display: F = 5850.000 G = +10.0 Figure 2.5 shows all the menu items and how to make changes. 2015-58T Manual_Rev. D Page 13 11/29/12...
- Page 14 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to: F = 5850.000 G = +20.0 Figure 2.5 gives the menu items and how to make changes 2015-58T Manual_Rev. D Page 14 11/29/12...
- Page 15 PUSH BUTTON PUSH BUTTON (option -Q) Save Settings? At the end or SAVE SETTINGS? SCROLL <> PUSH BUTTON when “R” is selected from any of the above menus FIGURE 2.5 Menu Display and Sequence 2015-58T Manual_Rev. D Page 15 11/29/12...
-
Page 16: Shiloh Road Alpharetta, Georgia
ROSS ECHNOLOGIES, INC. 170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com Printed in USA 2015-58T Manual_Rev. D Page 16 11/29/12...
