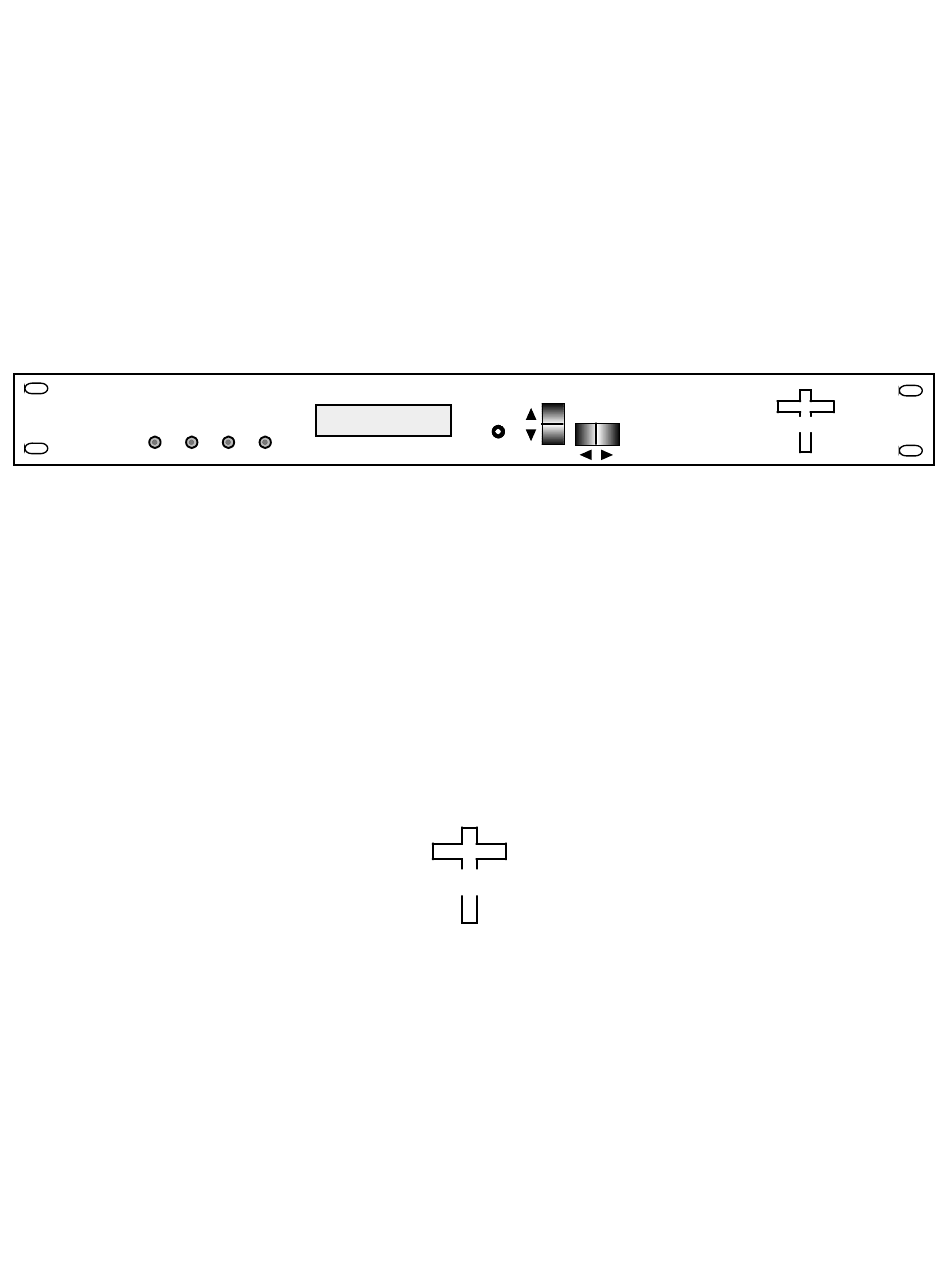

Instruction Manual
REMOTE POWER
MUTE
ALARM
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
F = 7250.000 G=+10
MENU
REF=INT
EXECUTE
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2015-7075
Upconverter
February 2024, Rev. 0
MODEL 2015
UPCONVERTER
C
ROSS
T
ECHNOLOGIES INC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2015-7075 and is the answer not in the manual?

Questions and answers

Related Manuals for Cross Technologies 2015-7075

Summary of Contents for Cross Technologies 2015-7075

  • Page 1 ALARM Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    WARRANTY - The following warranty applies to all Cross Technologies, Inc. products. All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies.

  • Page 3: General

    MODEL 2015-7075 Upconverter 1.0 General 1.1 Equipment Description The 2015-7075 Upconverter converts 70 ± 18 MHz to 7.0 to 7.5 GHz in 125 kHz steps. Synthesized local oscillators (LO) provide ±0.01 ppm stability frequency selection. Push button switches select the RF frequency, gain, and other parameters.

  • Page 4: Technical Characteristics

    Ethernet with Web Browser & SNMP - W28 Ethernet with TCP/IP, Telnet® - W828 W8 + W18 + 28 Contact Cross Technologies for other available options. *10˚C to 40˚C; Specifications subject to change without notice © 2020 Cross Technologies, Inc. 2015-7075 Manual_Rev.0 Page 4...
  • Page 5 A) Remote Serial Interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C standard, RS-422/RS-485 - Option -Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&C Port...
  • Page 6 B) Status Requests - Table 1.3 lists the status requests for the 2015-7075 and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. Status Requests specific to a switch must be preceeded by *i where i is the switch number.
  • Page 7 Table 1.3 2015-7075 Status Requests Continued Table 1.3 2015-7075 Status Requests Continued Table 1.3 2015-7075 Status Requests Continued Command Syntax Description Get Mute Status {aaSM} returns: {aaSMx} where: aa = unit address, range = 00 to 31, only included if the interface is RS485.
  • Page 8 C) Commands - Table 1.2 lists the commands for the 2015-7075 and briefly describes them. After a command is sent the 2015-7075 sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...
  • Page 9 Table 1.2 2015-7075 Commands Table 1.2 2015-7075 Commands Command Syntax Description Set Frequency {aaCFxxxxxxx} where: aa = unit address, range = 00 to 31, only used if interface is RS485, otherwise omit F = command code xxxxxxxx = desired switch output frequency in kHz.
  • Page 10 Table 1.2 2015-7075 Commands Continued Table 1.2 2015-7075 Commands Continued Table 1.2 2015-7075 Commands Continued Command Syntax Description Set Mute {aaCMx} where: aa = unit address, range = 00 to 31, only used if interface is RS485, otherwise omit M = command code x = 0 or 1.

  • Page 11: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2015-7075 Manual_Rev.0 Page 11 02/15/2024...

  • Page 12: Installation

    2.1 Mechanical The 2015-7075 consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assembly. The 2015-7075 can be secured to a rack using the 4 holes on the front panel.
  • Page 13 100-24 ±10% VAC, 47-63 Hz. 50/75 ohms, BNC female connector female connector. See Table 2.2 for other options. FIGURE 2.2 2015-7075 Rear Panel Inputs and Outputs TABLE 2.1 J10 Pinouts (RS-232C/422/485*) TABLE 2.1 J10 Pinouts (RS-232C/422/485*) Function Rx+ (RS-232C) TABLE 2.2 IF/RF Connector Options TABLE 2.2 IF/RF Connector Options...

  • Page 14: Operation

    2015-7075 Front Panel Controls and Indicators 2.4 Installation / Operation 2.4.1 Installing and Operating the 2015-7075 Upconverter 1. Connect a -30 dBm to -10 dBm, 70 MHz signal to IF IN, J4 (Figure 2.2) 2. Connect RF OUT, J5, to the external equipment.
  • Page 15 AC Fuse - 5 amp slow blow (Type T), 5 mm X 20 mm FUSE INPUT 100-240± 10%VAC TYPE T 5A GDC 47-63 Hz 250 VOLT 2A MAX FOR 100 - 240 V~ FIGURE 2.4 Fuse Location and Spare Fuse 2015-7075 Manual_Rev.0 Page 15 02/15/2024...

  • Page 16: Menu Settings

    If programming is initiated and no operator action takes place for approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2015-7075 Manual_Rev.0 Page 16 02/15/2024...
  • Page 17 A. During frequency, gain changes, the vertical movement will raise or lower the number in the direction of the arrows. B. For other functions such as Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2015-7075 Manual_Rev.0 Page 17 02/15/2024...
  • Page 18 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to the default display: F = 7250.000 G=+10 REF=INT Figure 2.5 shows all the menu items and how to make changes. 2015-7075 Manual_Rev.0 Page 18 02/15/2024...
  • Page 19 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to: F = 7250.000 G=+10 REF=INT Figure 2.5 gives the menu items and how to make changes 2015-7075 Manual_Rev.0 Page 19 02/15/2024...
  • Page 20 PUSH BUTTON SCROLL PUSH BUTTON (option -Q ONLY) SAVE SETTINGS? Save Settings? At the end or SCROLL <> PUSH BUTTON when “R” is selected from any of the above menus FIGURE 2.5 Menu Display and Sequence 2015-7075 Manual_Rev.0 Page 20 02/15/2024...
  • Page 21 ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com Printed in USA 2015-7075 Manual_Rev.0 Page 21 02/15/2024...
