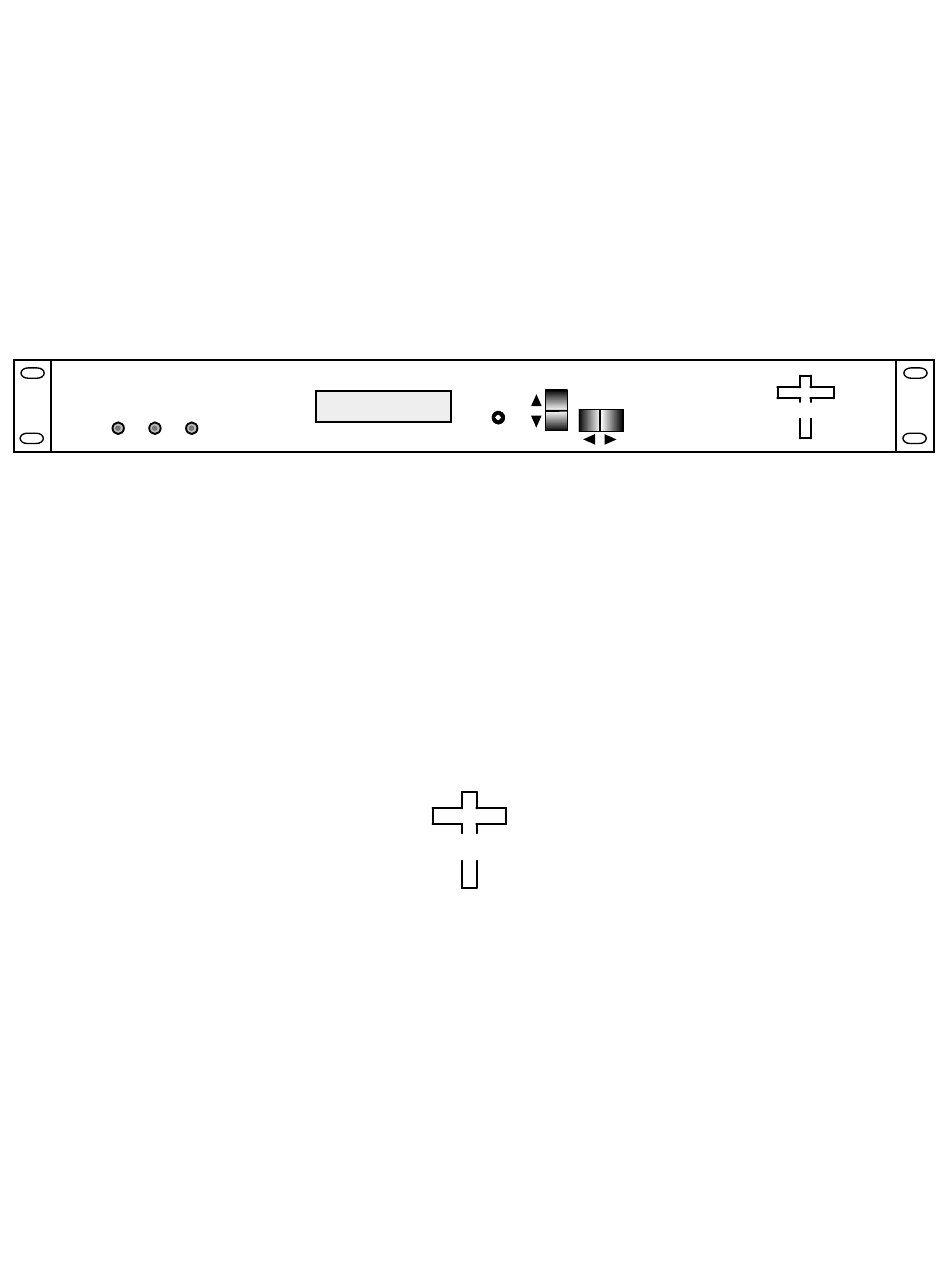

Instruction Manual
ALARM
REMOTE
POWER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
F=750
G=+25.0
MENU
EXECUTE
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2016-95
Downconverter
March 2017, Rev. A
MODEL 2016
DOWNCONVERTER
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2016-95 and is the answer not in the manual?

Questions and answers

Related Manuals for Cross Technologies 2016-95

Summary of Contents for Cross Technologies 2016-95

  • Page 1 POWER Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    1.0 General 1.1 Equipment Description The 2016-95 Downconverter converts 250 to 950 MHz to 70 ± 18 MHz in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication of DC power, PLL alarm or Remote operation.

  • Page 4: Technical Characteristics

    RS-422/485 Remote Interface Temperature Sensor W8 - Ethernet M&C Remote Interface 125 kHz step size Connector Options See TABLE 2.2 **+10˚C to +40˚C; Specifications subject to change without notice Cross Technologies, Inc., 2017 2016-95 Manual, Rev. A Page 4 03/07/17...
  • Page 5 A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C, RS-422, or RS-485 - option -Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&CPort...
  • Page 6 B) Status Requests - Table 1.2 lists the status requests for the 2016-95 and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. TABLE 1.2 2016-95 Status Req q uests...
  • Page 7 C) Commands - Table 1.1 lists the commands for the 2016-95 and briefly describes them. After a command is sent the 2016-95 sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...

  • Page 8: Installation

    A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016- 95 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-95 is assembled.
  • Page 9 J3 - 10MHz REF INPUT (option -E) 10 MHz external reference Output, 10 MHz external reference input, BNC female connector. BNC female connector. FIGURE 2.2 2016-95 Rear Panel I/Os TABLE 2.1 J1 1 0 J10 Pinouts (RS-232C*) Function Not Used...
  • Page 10 DC power. controls which values are being program mode. Does not function in the adjusted. Does not function in the normal display mode normal display mode FIGURE 2.3 2016-95 Front Panel Controls and Indicators 2016-95 Manual, Rev. A Page 10 03/07/17...

  • Page 11: Operation

    2.4 Operation 2.4.1 Installing and Operating the 2016-95 Downconverter 1. Connect a -70 dBm to -20 dBm signal to RF IN, J2 (Figure 2.2) 2. Connect the IF OUT, J1, to the external equipment 3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.

  • Page 12: Menu Settings

    If programming is initiated and no operator action takes place for approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2016-95 Manual, Rev. A Page 12 03/07/17...
  • Page 13 During frequency , gain changes, the vertical movement will raise or lower the number in the direction of the arrows. b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2016-95 Manual, Rev. A Page 13 03/07/17...
  • Page 14 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F=750 G=+25.0 Figure 2.5 gives the menu items and how to make changes. 2016-95 Manual, Rev. A Page 14 03/07/17...
  • Page 15 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F=750 G=+25.0 Figure 2.5 gives the menu items and how to make changes. 2016-95 Manual, Rev. A Page 15 03/07/17...
  • Page 16 Menu 7 Set RS-485 Address SCROLL PUSH BUTTON (Option -Q) SCROLL <> PUSH BUTTON SAVE SETTINGS? Save? When “R” is selected or when you get to the end FIGURE 2.5 Menu Display and Sequence 2016-95 Manual, Rev. A Page 16 03/07/17...

  • Page 17: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2016-95 Manual, Rev. A Page 17 03/07/17...
  • Page 18 ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com Printed in USA 2016-95 Manual, Rev. A Page 18 03/07/17...
