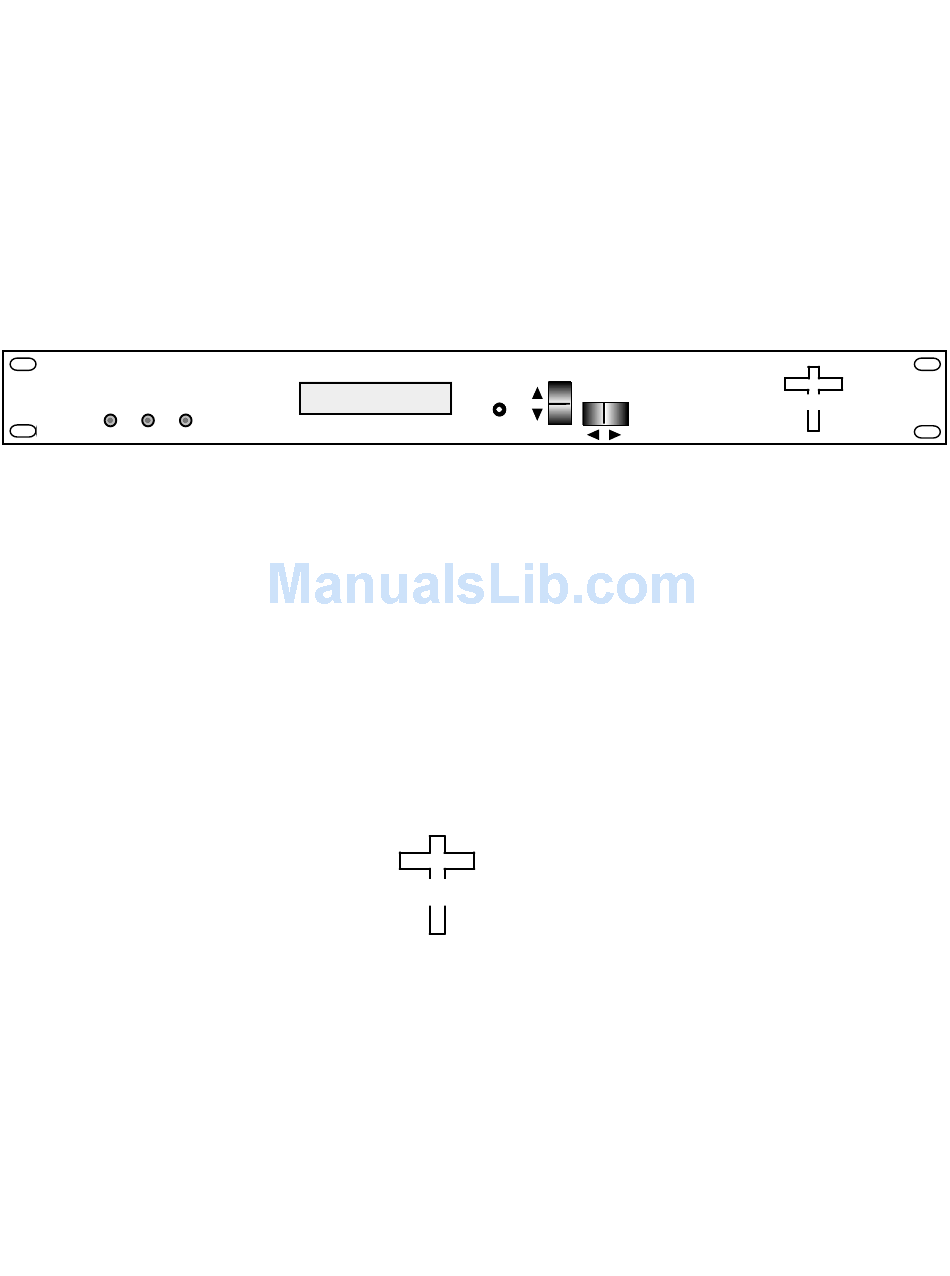

Instruction Manual
ALARM
REMOTE
POWER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
F=1544
G=25
ATTEN=10 REF=AUTO-I
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 2016-1522#
Downconverter
MODEL 2016
DOWNCONVERTER
MENU
EXECUTE
June 2017, Rev A
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2016-1522 and is the answer not in the manual?

Questions and answers

Related Manuals for Cross Technologies 2016-1522

Summary of Contents for Cross Technologies 2016-1522

  • Page 1 Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    1.1 Equipment Description The 2016-1522# Downconverter converts 1.544 or 2.226 GHz to 70 MHz. The gain is 0 to +50 dB, adjustable in 1±1 dB steps. Push button switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), and Remote operation (yellow).

  • Page 4: Technical Characteristics

    Size 19 inch standard chassis 1.75” high X 16.0” deep Power 100-240 ±10% VAC, 47-63 Hz, 25 watts maximum *Custom Specifications and/or Standard Options (shown below) included with Model 2016-1522# Option H - ±0.01 10MHz Internal Reference Option NN -...

  • Page 5: Monitor & Control Interface

    A) Remote serial interface Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS-232C, RS-422, or RS-485 - Option-Q) M&C Cable Diagram - Cross Technologies Frequency Converters Male DB-9 Female DB-9 2015/16/17 M&C Port...
  • Page 6 B) Status Requests Table 1.1 lists the status requests for the 2016-1522# and briefly describes them. PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below, should be used ONLY when RS-485, (OPTION-Q), is selected. TABLE 1.1 TABLE 1.1...
  • Page 7 C) Commands Table 1.2 lists the commands for the 2016-1522# and briefly describes them. After a command is sent the 2016-1522# sends a return “>” indicating the command has been received and executed. General Command Format - The general command format is {aaCND...}, where:...
  • Page 8 G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 2016-1522# Manual, Rev. 0 Page 8 06/19/17...

  • Page 9: Installation

    2.1 Mechanical The 2016-1522# consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-1522# can be secured to a rack using the 4 holes on the front panel.

  • Page 10: Rear Panel Inputs & Outputs

    70 ±5 MHz dBm 3 ± 3 dBm, 75Ω, BNC female connector. 3 ± 3 dBm, 75Ω, BNC female connector. see Table 2.2. FIGURE 2.2 2016-1522# Rear Panel I/Os TABLE 2.1 J1 1 0 J10 Pinouts (RS-232C*) Function Not Used...

  • Page 11: Front Panel Controls & Indicators

    Menu items when in controls which values are being program mode. Does not function in the adjusted. Does not function in the normal display mode normal display mode FIGURE 2.3 2016-1522# Front Panel Controls and Indicators 2016-1522# Manual, Rev. 0 Page 11 06/19/17...

  • Page 12: Operation

    2.4 Operation 2.4.1 Installing and Operating the 2016-1522# Downconverter 1. Connect a -50 dBm to -20 dBm signal to RF IN, J2 (Figure 2.2). 2. Connect the IF OUT, J1, to the external equipment. 3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.

  • Page 13: Menu Settings

    If programming is initiated and no operator action takes place for approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its previous status and you will need to start over. 2016-1522# Manual, Rev. 0 Page 13 06/19/17...
  • Page 14 During frequency , gain changes, the vertical movement will raise or lower the number in the direction of the arrows. b. For other functions such Mute on/off, the vertical switch will alternately turn the function on or off regardless of the direction operated. 2016-1522# Manual, Rev. 0 Page 14 06/19/17...
  • Page 15 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F = 1544 G=+10 Figure 2.5 gives the menu items and how to make changes. 2016-1522# Manual, Rev. 0 Page 15 06/19/17...
  • Page 16 Selecting Y will save the new settings. Selecting N will revert to the previous settings. Pushing the Menu/Execute switch then takes you to this: F = 1544 G=+20 Figure 2.5 gives the menu items and how to make changes. 2016-1522# Manual, Rev. 0 Page 16 06/19/17...
  • Page 17 Internal 10 MHz Reference. REF = AUTO -I appears on the front panel display where -I indicates that the unit is using the Internal 10 MHz Reference. The Internal 10 MHz Reference is present on the reference output connector, J18. 2016-1522# Manual, Rev. 0 Page 17 06/19/17...
  • Page 18 LNB DC = 0.250A Menu 8 View LNB current SCROLL PUSH BUTTON (option -L) SAVE SETTINGS? SCROLL <> PUSH BUTTON Save? When “R” is selected or at the end of the menu options 2016-1522# Manual, Rev. 0 Page 18 06/19/17...

  • Page 19: Shiloh Road Alpharetta, Georgia
