Assembly Instructions
Soltice
Connecting Tables
August 2019
connecting
table bracket
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Required Tools
• Phillips screwdriver or #2 Phillips
Metal
®
driver bit and electric drill
Connecting Tables Assembly
Note: Multiple seating must
be joined together first, before
assembling connecting tables.
Once assembled together, do not
move seating units that exceed
three seating positions without the
assistance of a second person, as
damage may occur to the assembly.
1. Carefully un-pack all contents
from packaging. Arrange seating
to the approximate location per the
space-planning layout, leaving a gap
between the seats intended to join
with tables (Figure 1).
Note: Center connecting tables
and 45 degree connector tables
are supported by the two adjoining
seating units using connecting table
brackets. End tables are supported
by one adjoining seating unit with a
connecting table bracket, 90 degree
connector tables are supported by
two adjoining seating units using
connecting table brackets and both
table units require the installation of
a leg for additional support. If center
connecting tables or 45 degree
connector tables are to be installed,
proceed to "Center Connecting
Table & 45 Degree Connector Table
Assembly" instructions on this page.
If ONLY end or 90 degree connector
tables are to be installed, proceed
"Connecting End Table & 90 Degree
Connector Table Assembly"
instructions on the next page.
Center Connecting Table &
45 Degree Connector Table
Assembly
1. Move two multiple seating
units close enough together so
the tabletop to be installed can
be supported by pre-installed
connecting table brackets of both
seating units (Figure 1).

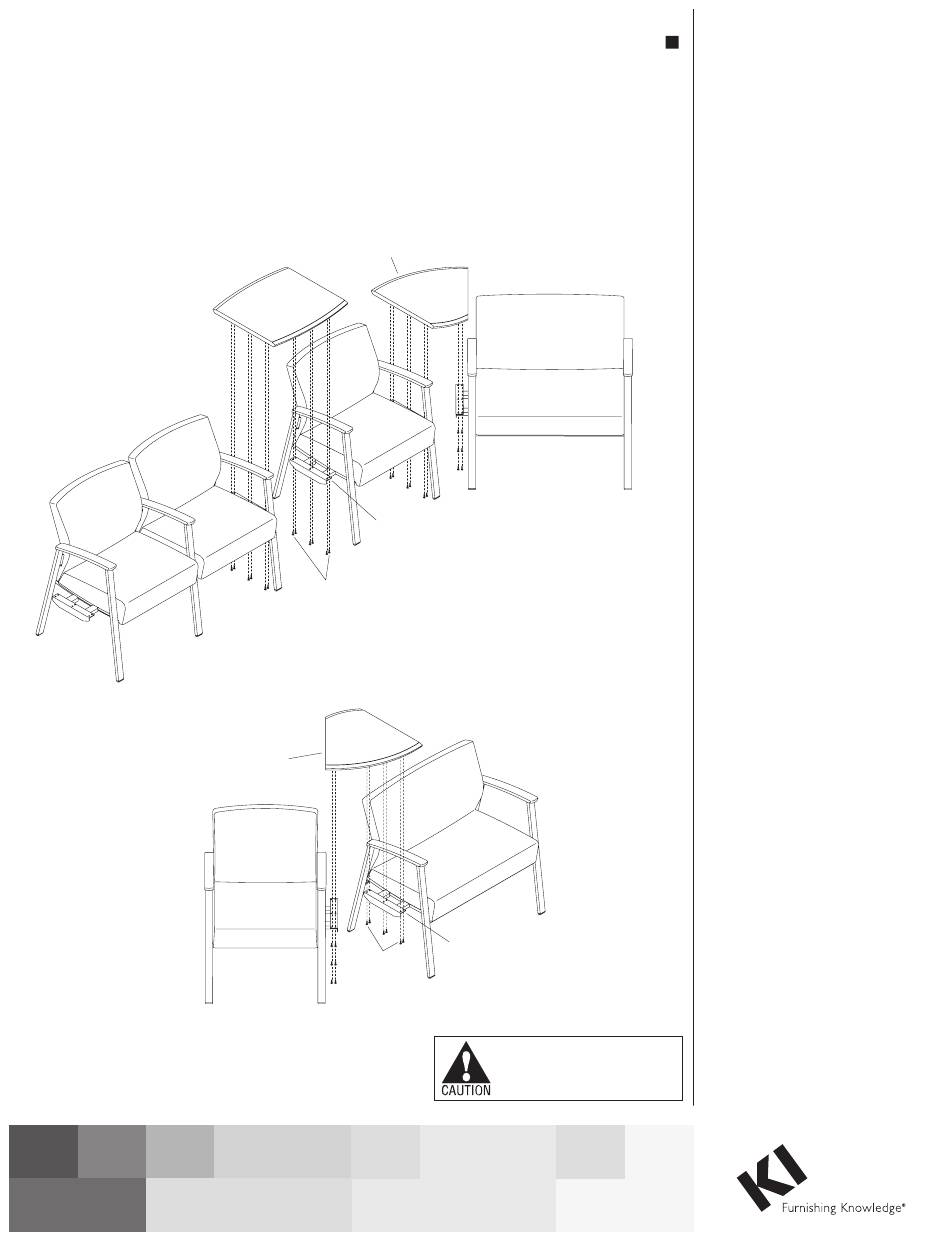

2. Place the center connecting table
(Figure 1) or 45 degree connector
table (Figures 1 & 2) onto the two
table brackets. Align the pre-drilled
holes of the underside of the tabletop
with the mounting holes of each
table bracket and secure using six
#10 x / " wood screws per bracket
3
4
(Figures 1 & 2).
