Assembly Instructions

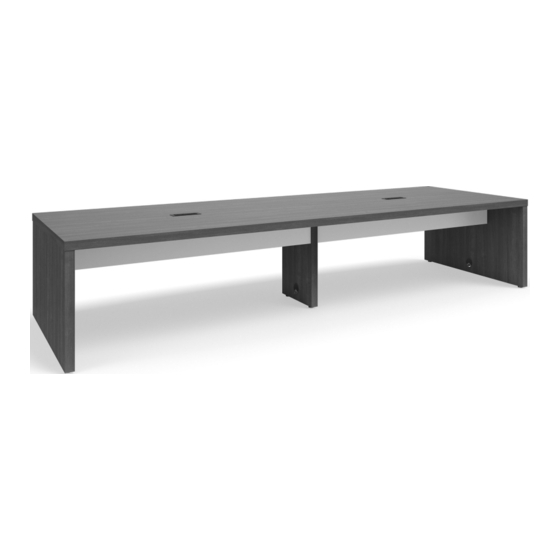

Serenade™ Gathering Table
April 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Serenade and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KI Serenade

Summary of Contents for KI Serenade

  • Page 1 Assembly Instructions Serenade™ Gathering Table April 2020...

  • Page 2: Table Of Contents

    Serenade™ Gathering Table - Table of Contents Assembly Instructions Serenade™ Gathering Table Serenade Gathering Table - Overview ............. 3 End Panel Leg Assembly ................ 5 Modesty Panel & Stringer Assembly ............6 18-24” Deep Tables 18-24” Deep Tables - Modesty Panel Installation ........7 18-24”...

  • Page 3: Serenade™ Gathering Table

    Serenade™ Gathering Table - Overview Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.
  • Page 4 Serenade™ Gathering Table - Overview Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 5: End Panel Leg Assembly

    Failure to assemble properly, or to secure parts may result in assembly failure and personal injury. Serenade Gathering Table - Overview Caution: The assistance of a second person is required to assemble Serenade Gathering Tables.

  • Page 6: Modesty Panel & Stringer Assembly

    Depending on your Tables and the second section configuration, the table assembly explains how to assemble 30-48” may include a short modesty panel, deep Serenade Gathering Tables. If full-height full-height modesty panel and/or the table being assembled is 18-24” modesty panel a stringer.

  • Page 7: 18-24" Deep Tables - Modesty Panel Installation

    Serenade™ Gathering Table - 18-24” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 8: 18-24" Deep Tables - 60-96" Wide Stringer Installation

    Serenade™ Gathering Table - 18-24” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 9: 18-24" Deep Tables - 108-144" Wide Stringer Installation

    Serenade™ Gathering Table - 18-24” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.
  • Page 10 Serenade™ Gathering Table - 18-24” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 11: 18-24" Deep Tables - End Panel Leg Installation

    Serenade™ Gathering Table - 18-24” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 12: 18-24" Deep Tables - Tabletop Installation

    Serenade™ Gathering Table - 18-24” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 13: 30-48" Deep Tables - Modesty Panel Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 14: 30-48" Deep Tables - Stringer Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 15: 30-48" Deep Tables - Middle Panel Leg Assembly

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 16: 30-48" Deep Tables - Middle Panel Leg Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 17: 30-48" Deep Tables - Second Modesty Panel Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 18: 30-48" Deep Tables - Second Stringer Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 19: 30-48" Deep Tables - End Panel Leg Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 20: 30-48" Deep Tables - Tabletop Installation

    Serenade™ Gathering Table - 30-48” Deep Tables Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 21: Velcro ® Wire Manager Installation

    #10 x / ” this page before proceeding screw (Figure 1 & detail C). 5. The Serenade Gathering Table is available with three different power module options: 4-Port, PowerUp and Villa. If a 4-Port power module with 3-prong plug is to be installed, reference “4-Port Power Module...

  • Page 22: 4-Port Power Moduel Installation

    Serenade™ Gathering Table - Electrical Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 23: Powerup Module Installation

    Serenade™ Gathering Table - Electrical Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 24: Villa Power Module Installation

    Serenade™ Gathering Table - Electrical Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 25: Power Module Cable Routing

    Serenade™ Gathering Table - Electrical Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.

  • Page 26: Connections With Source Power

    Serenade™ Gathering Table - Electrical Assembly Instructions GROUNDING INSTRUCTIONS Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be This product is for use on a nominal 120-volt circuit and has a grounding plug tightened securely and must be checked periodically after that looks like the plug illustrated in Detail Q.
  • Page 27 Serenade™ Gathering Table - Accessories Assembly Instructions Assemble units as described herein only. To do otherwise may result in instability. All screws, nuts and bolts must be tightened securely and must be checked periodically after assembly. Failure to assemble properly, or to secure parts may result in assembly failure and personal injury.
  • Page 28 1330 Bellevue Street P .O. Box 8100 Green Bay, Wisconsin 54308-8100 1-800-424-2432 www.ki.com KI is a registered trademark of Krueger International, Inc. © 2020 Krueger International, Inc. All Rights Reserved Code KI-AI-000063/KI/PDF/0420...
