KI Soltice Metal Multiple Seating Assembly Instructions Manual

double adder unit
(left-handed end)

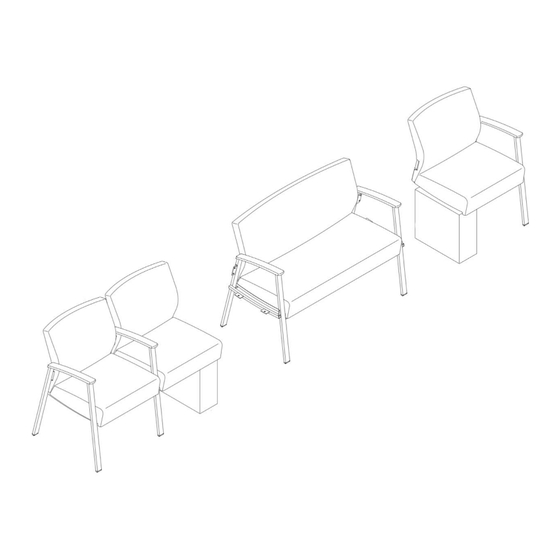

Figure 1
loveseat
starter unit
back-mount
bracket
seat-mount
bracket
cardboard
support
Assembly Instructions
Soltice
Multiple Seating
June 2023
single adder unit
(right-handed end)
cardboard
support
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Metal
®
Required Tools
• Phillips screwdriver or #2 Phillips
driver bit and electric drill
Hardware Included for Installation
• / -20 x
1 3
4
screws (backrest)
• / -20 x 1" pan head phillips
1
4
screws (seat)
• / " external lock washers
1
4
(back & seat)
• / " flat washers (back & seat)
1
4
Multiple Seating Assembly
Note: The assistance of a second
person is required to assemble and
place multiple seating in it's final
location.
Note: A seating unit with legs at
both sides, and brackets to attach
units to at one, or both ends is
called a "starter" unit. A seating unit
(single, double or triple) which has
one leg left off in the manufacturing
process is called an "adder". Adder
units may be right- or left-handed
and each ships with a cardboard
support for stability. Take care
unpacking and transferring adders to
assembly locations as damage may
occur if not handled properly.
1. Carefully un-pack all contents
from packaging. Use the cardboard
supports to temporarily stabilize
adders in the upright position.
Arrange seating in approximate
location per the space-planning
layout, leaving a gap between the
units to be joined together (Figure 1).
Note: Once assembled together, do
not move seating units that exceed
five seating positions, as damage
may occur to the assembly.
/ " pan head phillips
4
