230V~ RECEIVER WITH DIMMER FUNCTION FOR THE CONTROL OF RESISTIVE,
CAPACITIVE, INDUCTIVE AND LED LOADS. Push-button input for manual controls.
Product code
Programming button P2
Aerial
Programming button P1 (radio receiver)
Dimensions
25 mm
TVDLCxxxA01
PRODUCT:
TVDLC868A01
TVDLC000A01
Led
50 mm
50 mm
TVDLC916A01
(868.3Mhz)
(without built-in radio receiver)
Load
Resistive
Inductive
Capacitive
LED
Mounting
Min.
25W
25VA
25VA
7W
T634.02
DOC.:
(916Mhz)
Max.
250W
250VA
250VA
100W
03/10/17
DATE:
Advertisement
Related Manuals for TELECO AUTOMATION TVDLC868A01
Summary of Contents for TELECO AUTOMATION TVDLC868A01

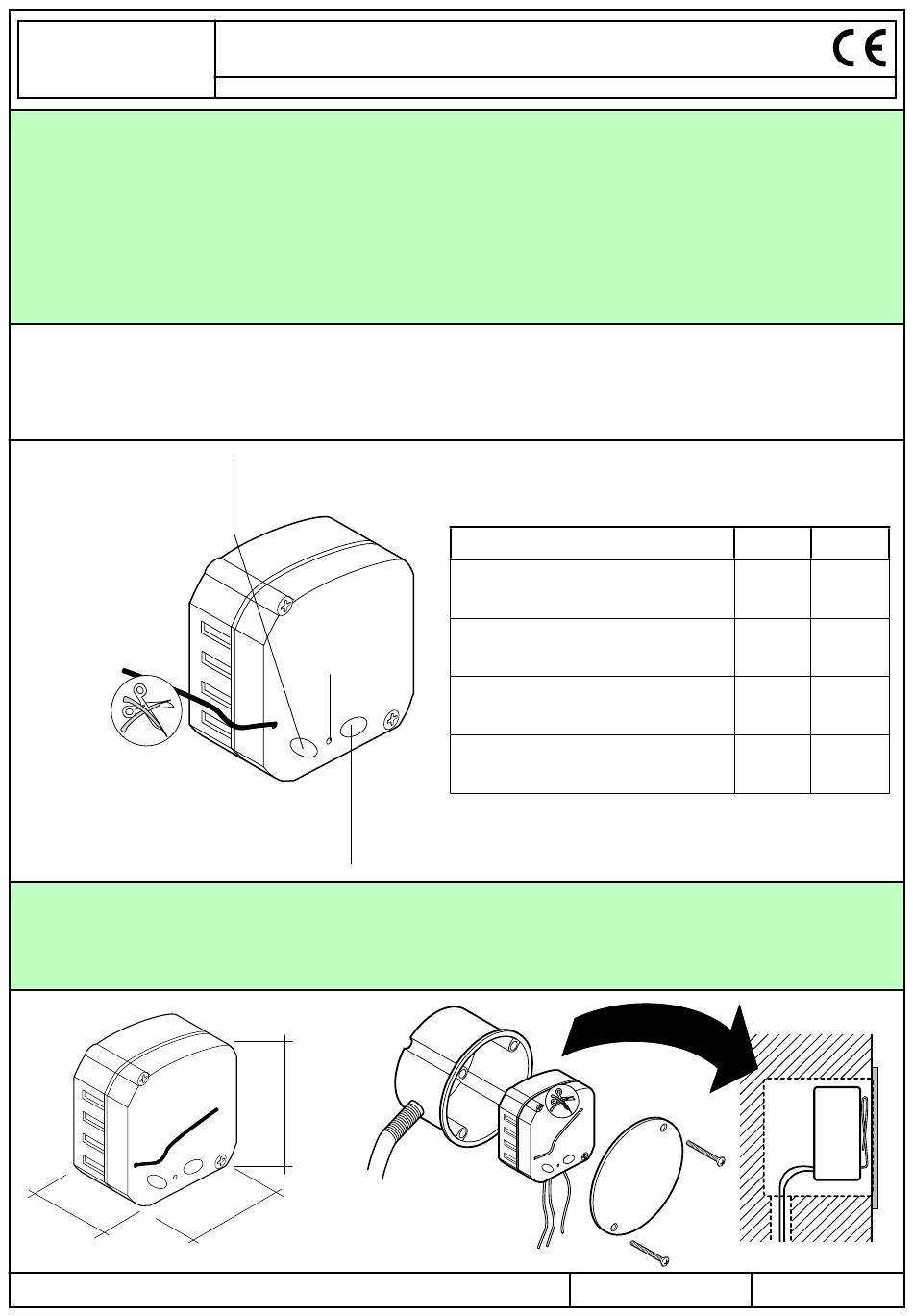

- Page 1 230V~ RECEIVER WITH DIMMER FUNCTION FOR THE CONTROL OF RESISTIVE, CAPACITIVE, INDUCTIVE AND LED LOADS. Push-button input for manual controls. TVDLC868A01 TVDLC916A01 (868.3Mhz) (916Mhz) TVDLC000A01 Product code (without built-in radio receiver) Programming button P2 Load Min. Max. 250W Resistive 25VA...
- Page 2 Wirings Push-button input STL* - Snubber circuit (included). STL002 STL001 It’s possible to connect in parallel more than one push-button. dmm g08s dmm g08s dmm a01 dmm a01 dmm g08s Snubber circuit for low LED loads (optional). < 0,5 s >...
- Page 3 Configuration of the load type it’s possible to repeat the procedure in order to identify the most suitable setting of the system, especially in case of LED loads. keep it pressed CONFIGURED VALUE intermittent sound NEW VALUE . . . Press 2 times the button P2 and keep it pressed.
- Page 4 Configuration of the minimum level of light intensity keep it pressed CONFIGURED Adjust the minimum brightness to the desired level. Press 1 time the button P2 and keep it pressed. DEFAULT VALUE Activation/deactivation of the memory of the last light intensity value ACTIVATION keep it pressed last value...
- Page 5 Wireless command devices (version with built-in radio receiver) 100% Green Mouse 100% DIM + DIM - Min. DIM + Min. DIM - Transmitter with integrated light sensor 7/42 channels Single command channel See the product’s instructions for details. DIM + 100% 100% DIM +...
- Page 6 Radio codes memorization (with P1) TYPE OF MEMORIZATION continuous sound keep it pressed 7 channels (see p.5) < 1 s > 1 s 1 button: ON/OFF DIMMER ꜛ ꜜ 1 button with function ON Press the button of the intermittent sound 1 button with function OFF transmitter relative to the code to memorize.
- Page 7 Radio codes deletion TYPE OF DELETION keep it pressed intermittent sound Press the button of the transmitter Single radio code relative to the code to delete. continuous sound All the radio codes (10s.) Disabling any button of a 4 or 7/42 channels transmitter DISABLED keep it pressed ENABLED...
- Page 8 Remote memorization of further radio codes memorized continuous sound memorized continuous sound intermittent sound P3 button is located inside the transmitter. The added radio code will have the same functions of the code used for the memorization. This procedure is compatible with any type of transmitter.
- Page 9 Modification of the preset light values of a 4 or 7/42 channel transmitter If any transmitter with modified light values is used in the remote memorization (page 8), the added transmitter will have the same modified values. Load continuous sound 5 s) 1.
- Page 10 Failure to do so may incur the penalties established by laws governing waste disposal. Hereby Teleco automation s.r.l. declares that the product complies with the essential requirements and other relevant provisions, established by the Directive 1999/5/EC. The declaration of conformity can be consulted...
-
Page 11: Technical Specifications
The connection cables must have a section suitable to the maximum load applied to the output, and to the additional devices connected to the input. IP20 Protection rating -20°C - +50°C Operating temperature range 868.3 MHz (TVDLC868A01) 916 MHz Reception frequency (TVDLC916A01) ------------- (TVDLC000A01) Radio memory capability (transmitters) (TVDLC868A01, TVDLC916A01) 50 x 50 x 25 Dimensions (mm)
