TELECO AUTOMATION TVLink RS868 Quick Start Manual

RECEIVER TVRGB868 CONTROLLING RGB LEDS WITH DIMMING FUNCTION
Attention!
Connect the power supplier and the LED RGB in a correct way to
the receiver before connecting the power supplier to the
electricity network.
A faulty connection of the LED diodes (polarity inversion) could
damages them, therefore pay attention during their connection
by respecting the polarity.
GENERAL DESCRIPTION
Electronic for the scenes regulation with LED RGB via radio and
with external push buttons. Possibility to create scenes, ON/OFF
control, automatic cycles of light variation with adjustment of
the cycle time and the direction of the colours rotation.
Possiblity to dimmer the selected light from the transmitter.
(see point 8)
- Separate 24 Vdc power supplier.
- Possibility to connect three different LEDs (RGB) with
connection on 6 or 4 wires with common cathode.
Models:
TVRGBD868A01 Master for 350mA Leds
TVRGBD868B01 Master for 700mA Leds
TVRGB868M01 Slave for 350mA Leds
TVRGB868N01 Slave for 700mA Leds
- Functioning:
a) by means of a 7- channel transmitter, or 1-channel transmitters.
b) by means of manual push buttons.
Functions of transmitter channels
It is possible to memorise the channels of the transmitters individually
or completely.
- Individually:
1) The channels of the transmitter are memorised individually, the
colour changes at each impulse between the 8 pre-programmed colours.
To turn off the colour, press the push button for more than 2 sec.
At each turning-on will restart the colour that has been previously
selected.
2) The channel of the transmitter operates only on the white light, with
short impulses (<300 ms.) it turns the light on and off, by holding it
pressed, increases or decreases the intensity.
At each turning-on will restart the intensity of white light that has been
previously selected.
- Completely: This memorisation requires the utilisation of 7-channel
transmitters, the functions of the push buttons are described on the
pictures here below.

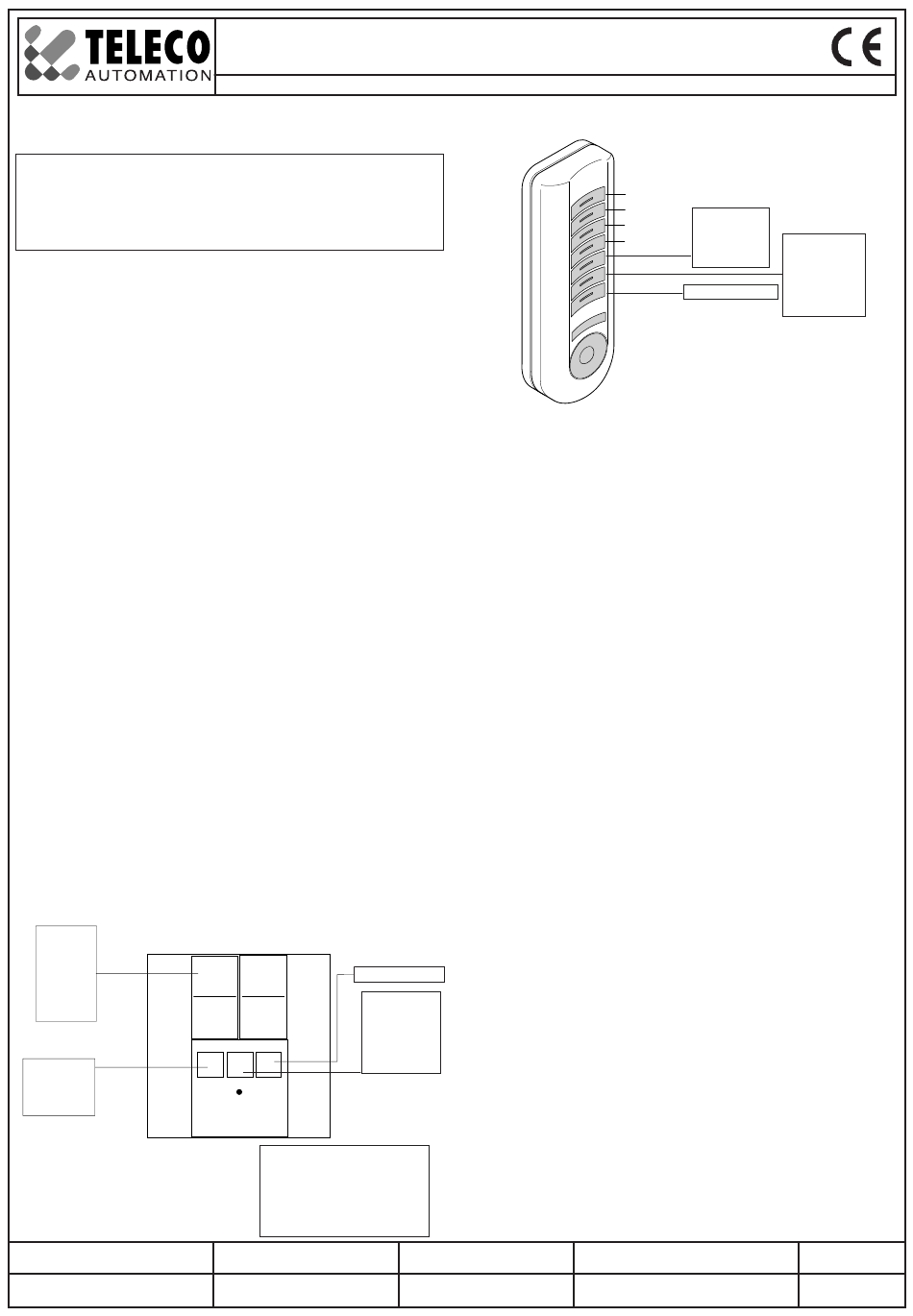

1- Functioning with 7-channel transmitters
a) The 4 first control channels can control up to 8 pre-programmed
base colours which are changeable.
1- Red
2- Green
3- Blue
Ch1
4- White
5- Light-blue
6- Yellow
7- Magenta
8- Orange
Ch2
Ch5 shift push-
button to select
the push-buttons
from 1 to 4 and
from 5 to 8
Code Number:
TVRGBD868
TELECO AUTOMATION SRL -
++39.0438.388511 FAX: ++39.0438.388536
TELEPHONE:
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
Ch3
1 3
Ch7 OFF push-button
7
5
Ch6
4
2 push to start the
moving sequence
8
6 in clock-wise
Ch4
direction, push
again to invert the
direction.
During the sequence the
colour speed can be set as
follows:
1 = 4 seconds fade, 1 second stable
2 = 16 seconds fade, 6 seconds stable
3 = 28 seconds fade, 10 seconds stable
4 = freeze/unfreeze movement
Series
TVLink RS868
Viale del Lavoro, 5 - 31014 Colle Umberto (TV) ITALY
Ch1
Ch2
Ch3
Ch4
Ch5
Ch6
Ch7
1= red, 2=green, 3=blue, 4=white, 5=light-blue, 6=yellow, 7= magenta,
8=orange
b) The first push button Ch5 selects the first 4 colours or the second 4
colours.
c) The push button Ch6 activates the automatic cycle of colour
variation (point 2).
d) The push button Ch7 carries out the turning-off function.
2-Fonctionning of automatic sequence mode
This sequence activates automatically a colour variation, both in
clockwise, both in anti-clockwise direction. The starting colour
will be the last selected colour or the colour which is active in
that moment.
Procedure to activate rotation
- Press the central push button Ch6, the turning-off and returning-on of
the lights indicates that you have entered the mode, release the push
button to start the sequence with rotation in clockwise direction.
- To change the rotation direction, anti-clockwise, push again Ch6, the
control is signalised by the turning-off and returning-on of the lights.
When the sequence will be activated, the scanning speed between a
colour and another one is taken from the last setting or of a default
value of 4 sec., when you are in rotation mode it is possible to vary the
scanning speed by pressing one of the channel push buttons with the
following function:
Schedule 1:
Ch1= 4 sec. cycle, 1 sec. stationary on the light value
Ch2= 16 sec. cycle, 6 sec. stationary on the light value
Ch3= 28 sec. cycle, 10 sec. stationary on the light value
Ch4= stop the movement at the current light value/ restart the
movement.
To turn off the sequence press the push button Ch7
Each selection is signalised by the turning-off and turning-on of the
lights.
3- How to change the light value of one of the 8 pre-programmed
on the transmitter
1- Press the channel with the colour which is to be modified, the light
will turn-on on its value.
2- Press and hold down the automatic cycle- push button Ch6 for more
than 4 sec., the light will turn off and return on one time after 2 sec. and
a second time after 4 sec. which indicates that you have entered the
new-colour-memorisation-mode.
After you have entered the mode, the colour variation will start with a
speed of 4 sec. between a colour and the next one and a pause of 1 sec.
at each colour, by pressing again the Ch6 push button it is possible to
change immediately the rotation direction.
3- Press for 3 sec. one of the 8 colour push buttons in order to
memorise the new light value, the light will turn off and return on for
confirmation, afterwards you will turn back to the standard mode.
Model number
1
5
1
2 6
Ch5 shift push-
3 7
button to select
the push-buttons
8
4
from 1 to 4 and
from 5 to 8
Ch7 OFF push-button
Draft
T271.03
Ch6
push to start the
moving sequence
in clock-wise
direction, push
again to invert the
direction.
Date
15-11-07
