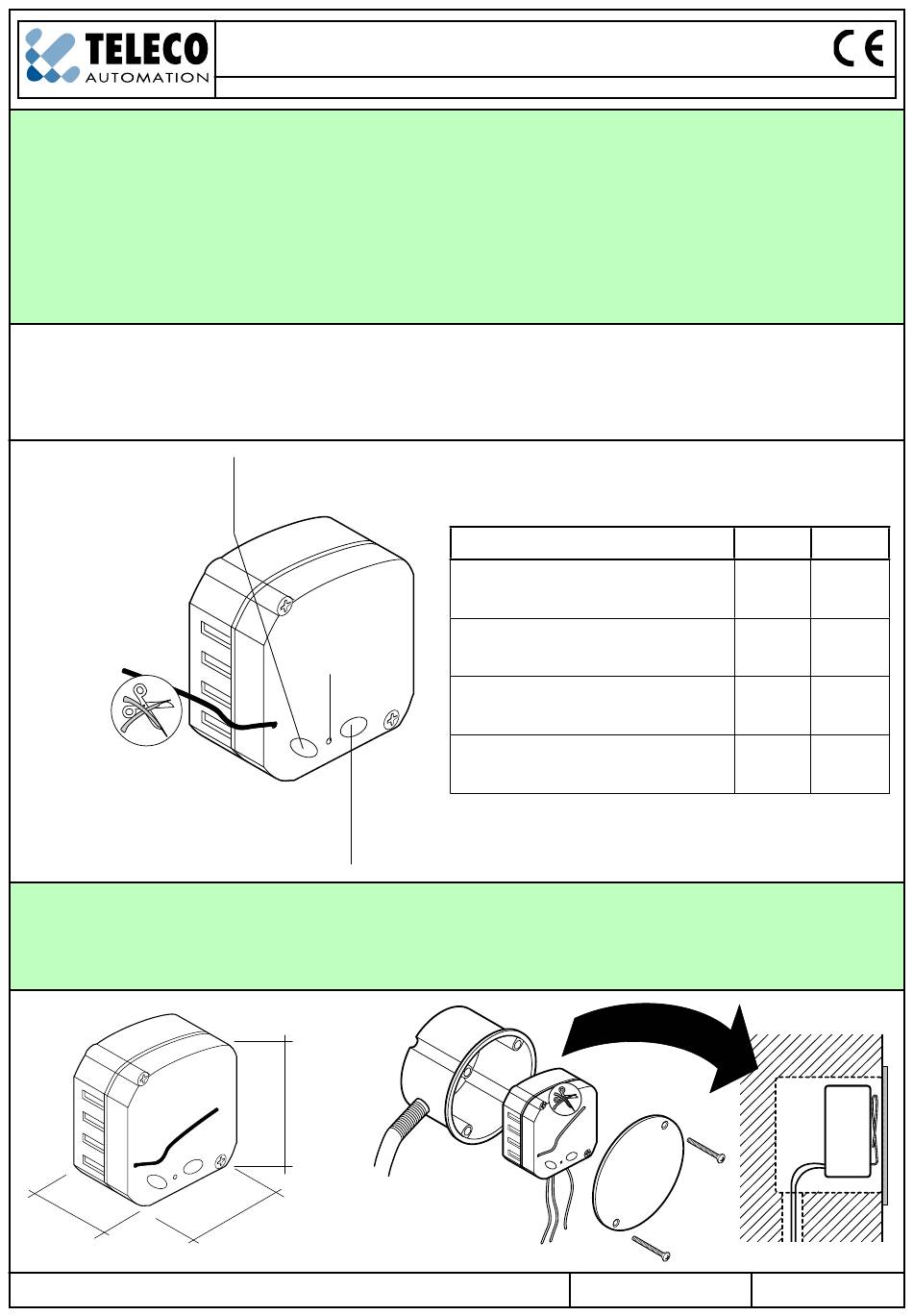

Receiver with dimmer function for the control of resistive, capacitive, inductive and led loads
Hide thumbs Also See for TVDLC868A01:

Advertisement

Quick Links

IT - RICEVITORE 230Vac CON FUNZIONE DIMMER PER IL CONTROLLO DI CARICHI DI TIPO
RESISTIVO, CAPACITIVO, INDUTTIVO E LED. Ingresso pulsante manuale.
EN - 230Vac RECEIVER WITH DIMMER FUNCTION FOR THE CONTROL OF RESISTIVE,
CAPACITIVE, INDUCTIVE AND LED LOADS. Push-button input for manual controls.
FR - RÉCEPTEUR SANS FIL 230Vac AVEC FONCTION VARIATION POUR LE CONTROLE DE
CHARGES DE TYPE RESISTIF, CAPACITIF, INDUCTIF ET LED. Entrée pour bouton-poussoir.
DE - 230Vac DRAHTLOSER EMPFÄNGER MIT DIMM-FUNKTION FÜR DIE STEUERUNG VON
LEDS, INDUKTIVEN, KAPAZITIVEN UND WIDERSTANDSLASTEN. Eingang manueller Taster.
IT - Codice prodotto
EN - Product code
FR - Code du produit
DE - Artikelnummer
IT - Tasto di programmazione P2
EN - Programming button P2
FR - Bouton de programmation P2
DE - Programmierungstaste P2
IT - Antenna
EN - Aerial
FR - Antenne
DE - Antenne
IT - Tasto di programmazione P1 (ricevitore radio)
EN - Programming button P1 (radio receiver)
FR - Bouton de programmation P1 (récepteur radio)
DE - Programmierungstaste P1 (Funkempfänger)
IT - Dimensioni
EN - Dimensions
FR - Dimensions
DE - Abmessungen
25 mm
TVDLCxxxA01
PRODUCT:
TELECO AUTOMATION SRL -
++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com
TELEPHONE:
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
TVDLC868A01
TVDLC000A01
Led
50 mm
50 mm
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
(868.3Mhz)
(senza ricevitore radio
sans récepteur
intégré, ohne integriertem Funkempfänger)
Carico -
Load -
Resistivo -
Resistif -
Induttivo -
Inductif -
Capacitivo -
Capacitif -
Montaggio
Mounting
Fixation
Montage
TVDLC916A01
integrato, without built-in radio receiver,
Charge -
Last
Resistive
Widerstandlast
Inductive
Induktiv
Capacitive
Kapazitiv
LED
T634.01
DOC.:
(916Mhz)
Min.
Max.
25W
250W
25VA
250VA
25VA
250VA
7W
100W
16/11/15
DATE:

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVDLC868A01 and is the answer not in the manual?

Questions and answers

Summary of Contents for TELECO AUTOMATION TVDLC868A01

  • Page 1 ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights IT - RICEVITORE 230Vac CON FUNZIONE DIMMER PER IL CONTROLLO DI CARICHI DI TIPO RESISTIVO, CAPACITIVO, INDUTTIVO E LED. Ingresso pulsante manuale.
  • Page 2 IT - Collegamenti EN - Wirings FR - Connexions DE - Anschlüsse IT - Ingresso pulsante EN - Push-button input FR - Entrée pour bouton-poussoir DE - Eingang Taster STL* oppure oder IT - Circuito stabilizzatore (in dotazione) EN - Snubber circuit (included). FR - Circuit stabilisateur (inclus).
  • Page 3 IT - Configurazione del tipo di carico EN - Configuration of the load type FR - Configuration du type de charge DE - Konfigurierung der Lastart IT - È possibile ripetere la procedura al fine di identificare le migliori impostazioni del sistema, specialmente in caso di carichi LED. EN - It’s possible to repeat the procedure in order to identify the most suitable setting of the system, especially in case of LED loads.
  • Page 4 IT - Configurazione del valore minimo di intensità luminosa EN - Configuration of the minimum level of light intensity FR - Configuration du niveau le plus bas de l’intensité lumineuse DE - Einstellen der minimalen Helligkeit tenere premuto CONFIGURATO keep it pressed CONFIGURED maintenir appuyé...
  • Page 5 IT - Dispositivi di comando wireless (versione con ricevitore radio integrato) EN - Wireless command devices (version with built-in radio receiver) FR - Dispositifs de commande sans fil (version avec récepteur intégré) DE - Drahtlose Steuerungsgeräte (Ausführung mit integriertem Funkempfänger) 100% Green Mouse 100%...
  • Page 6 IT - Memorizzazione codici radio (con P1) EN - Radio codes memorization (with P1) FR - Mémorisation des codes radio (avec P1) DE - Einlernung Sendekanäle (mit P1) IT - TIPO DI MEMORIZZAZIONE suono continuo EN - TYPE OF MEMORIZATION continuous sound tenere premuto son continu...
  • Page 7 IT - Cancellazione codici radio EN - Radio codes deletion FR - Suppression des codes radio DE - Löschung von Sendekanälen IT - TIPO DI CANCELLAZIONE EN - TYPE OF DELETION FR - TYPE DE SUPPRESSION tenere premuto keep it pressed DE - LÖSCHUNGSART suono intermittente intermittent sound...
  • Page 8 IT - Memorizzazione remota di ulteriori codici radio EN - Remote memorization of further radio codes FR - Mémorisation à distance d’autres codes radio DE - Fern- Speicherung von weiteren Sendekanälen IT - Il tasto P3 si trova all’interno del trasmettitore. memorizzato Il codice radio aggiunto avrà...
  • Page 9 IT - Modifica dei valori di luminosità preimpostati di un trasmettitore 4 o 7/42 canali EN - Modification of the preset light values of a 4 or 7/42 channel transmitter FR - Modification des valeurs de luminosité préréglées d’un émetteur 4 ou 7/42 canaux DE - Änderung der voreingestellten Helligkeitswerte eines 4 oder 7/42-Kanal Senders IT - Se un trasmettitore con valori di luminosità...
