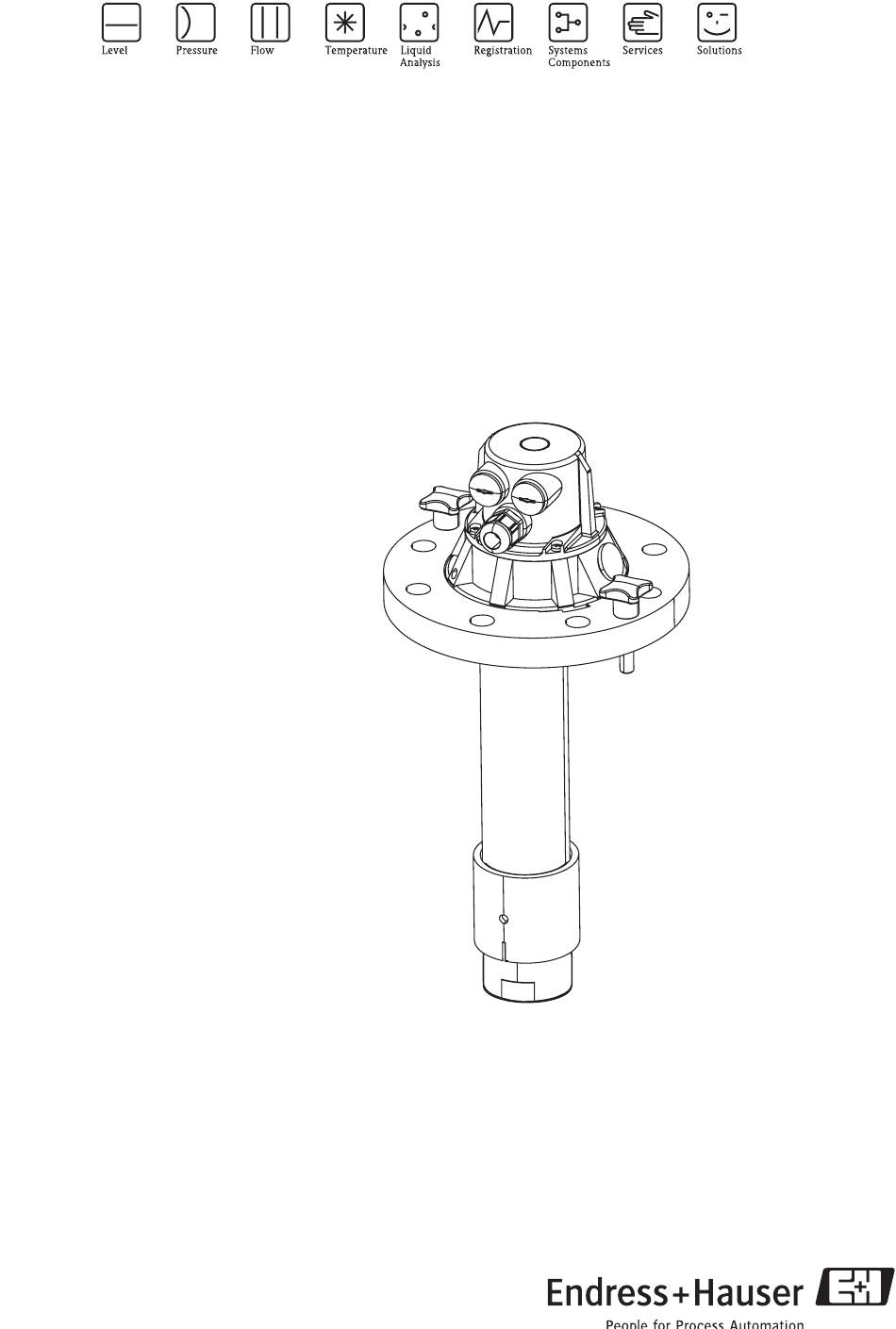

- Page 1 Operating Instructions Dipfit W CLA111 Immersion assembly for conductivity measurement BA135C/07/en/06.07 71042049...
- Page 2 Dimensions Page 23 Environment and process, weight, materials etc. Æ Æ Index Page 25 You can find important terms and keywords on the individual sections here. Use the keyword index to find the information you need quickly and efficiently. Endress+Hauser...
-
Page 3: Table Of Contents
Dipfit W CLA111 Table of contents Safety instructions ....4 Designated use ......4 Installation, commissioning and operation . -
Page 4: Safety Instructions
Dipfit W CLA111 Safety instructions Designated use The immersion and process assembly Dipfit W CLA111 is suitable for universal use in water and wastewater applications. Its mechanical design permits its use in pressurized systems (see "Technical data"). Any other use than the one described here compromises the safety of persons and the entire measuring system and is, therefore, not permitted. -
Page 5: Notes On Safety Icons And Symbols
Dipfit W CLA111 Safety instructions Notes on safety icons and symbols Warning! This symbol alerts you to hazards. They can cause serious damage to the instrument or to persons if ignored. Caution! " This symbol alerts you to possible faults which could arise from incorrect operation. They could cause damage to the instrument if ignored. -
Page 6: Identification
You can find possible assembly versions and the resulting order codes in the product structure. Scope of delivery The scope of delivery comprises: • Dipfit W CLA111 assembly (ordered version) • Measuring cable with plug for two-electrode sensor CLS21 • O-ring for sensors CLS21 and CLS21D •... -
Page 7: Installation
Dipfit W CLA111 Installation Installation Incoming acceptance, transport, storage • Make sure the packaging is undamaged! Inform the supplier about damage to the packaging. Keep the damaged packaging until the matter has been settled. • Make sure the contents are undamaged! Inform the supplier about damage to the delivery contents. - Page 8 Installation Dipfit W CLA111 Ø18(0.71) Ø18(0.71) 133(5.24) 133(5.24) 180(7.09) 180(7.09) 220(8.66) 220(8.66) mm (inch) mm (inch) a0007041 a0007046 Fig. 4: Pressurized flange DN 100 for CLA111-C Fig. 5: Flange DN 100 for CLA111-A/B Through hole for star handle screws CLS21...
-
Page 9: Installation Instructions
Dipfit W CLA111 Installation Installation instructions 3.3.1 Measuring system a0007461 Fig. 7: Example of a complete measuring system Sensor holder Cable gland Pg 13.5 Immersion assembly Dipfit W CLA111 Extension cable Measuring cable Transmitter Liquiline M CM42 Endress+Hauser... - Page 10 Installation Dipfit W CLA111 3.3.2 Installation of the assembly a0007459 a0007455 Fig. 9: Version B with adjustable flange DN 100 Fig. 8: Version A and C with flange DN 100 Phillips screw (4 pieces) Adjustable flange adapter (2 half-shells) Assembly head...
- Page 11 Dipfit W CLA111 Installation Phillips screws Marker "final position" Assembly pipe Half-shells a0007049 Fig. 10: Adjustable flange adapter Installation of the assembly with adjustable flange DN 100: Attach flange DN 100 to mounting frame. Put the half-shells (4) of the adapter to the desired position of the pipe.
- Page 12 Installation Dipfit W CLA111 3.3.3 Version with suspension bracket Suspension bracket (AISI 316 Ti) Dummy plug Pg 16 Assembly head Cable gland Pg 13.5 Weight (half-shells) Cable clamp to fix the half-shells Sleeve Sensor holder Sensor a0007460 Mounting The suspended version of the assembly can be mounted at basins using the assembly holder CYH101.
- Page 13 Dipfit W CLA111 Installation 3.3.4 Version for pendulum frame mounting a0007052 Fig. 12: Retaining ring Assembly pipe Marker "final position" Phillips screws Half-shells Knurled thumb screws a0007053 Fig. 13: Pendulum frame a0007472 Fig. 11: Version F for pendulum frame mounting...
- Page 14 Installation Dipfit W CLA111 Mounting The assembly version F is supplied with a retaining ring for pendulous suspension from the pendulum frame. Mounting the assembly: Put the half-shells (Fig. 12, pos. 4) of the adapter to the desired position of the assembly pipe.
-
Page 15: Sensor Installation
Dipfit W CLA111 Installation Sensor installation 3.4.1 Installation of CLS21 a0007452 Fig. 15: Removal of the sensor holder and mounting of the sensor CLS21 Bayonet lock Sensor holder O-ring Sensor CLS21 Mounting of the sensor: Push the O-ring (pos. 3) over the threaded shaft. -
Page 16: Post-Installation Check
Installation Dipfit W CLA111 3.4.2 Installation of CLS50 a0007453 Fig. 16: Removal of the sensor holder and mounting of the sensor CLS50 Bayonet lock Sensor holder Gasket Sensor CLS50 Mounting of the sensor: Push the gasket (pos. 3) over the threaded shaft. -
Page 17: Wiring
Dipfit W CLA111 Wiring Wiring Connection of the sensors Connect the sensors CLS21D and CLS50 directly at the transmitter. Connect the sensor CLS21 with the special measuring cable (included in the scope of delivery) at the terminals in the assembly head. -
Page 18: Post-Connection Check
Wiring Dipfit W CLA111 GN WH 1 2 3 4 5 6 7 a0007457 Fig. 18: Terminals for CLS21 Measuring cable CYK71 (to the transmitter) Terminals Special measuring cable (to the sensor) Post-connection check Device condition and specifications Note Is the sensor, junction box or cable damaged externally? -
Page 19: Maintenance
Dipfit W CLA111 Maintenance Maintenance Warning! Risk of injury! Before starting maintenance work on the assembly, make sure that the process line and the tank are depressurized, empty and rinsed. Maintaining the assembly To ensure a reliable measurement perform the following maintenance work: •... -
Page 20: Accessories
Accessories Dipfit W CLA111 Accessories Installation material Immersion assembly holder CYH101 • For pH, ORP, oxygen, conductivity assemblies and for oxygen and turbidity sensors; • Ordering acc. to product structure (Technical Information TI092C/07/en) Mounting frame for CPA111, CPA510, CPA530 and CLA111 •... -
Page 21: Extension Cables
Dipfit W CLA111 Accessories Extension cables Special measuring cable / extension cable CYK71 • For two-electrode conductivity sensors with integrated temperature sensor • One low-noise coaxial line, four auxiliary cores at 0.75 mm each with a common screen • Outer diameter 7 mm (0.25") Sold by the meter, (minimum) length 5 m (16.4 ft) -
Page 22: Spare Part Kits
Spare part kits Dipfit W CLA111 Spare part kits a0007491 Fig. 20: Spare parts Note! Please, refer to the following table for the spare part kits order numbers according to the positions in Fig. 20. Position Description and kit content Spare part kit order no. -
Page 23: Technical Data
Dipfit W CLA111 Technical data Technical data Environment Ambient temperature -10 ... 80 °C (14 ... 176 °F) Process Process pressure and version A, B, D, F unpressurized, 80 °C (176 °F) temperature version C 4 bar at 20 °C (58 psi at 68 °F) unpressurized, 80 °C (176 °F) - Page 24 Technical data Dipfit W CLA111 Endress+Hauser...
-
Page 25: Index
Dipfit W CLA111 Index Accessories Safety icons ........5 Assembly holder CYH101 . - Page 26 Dipfit W CLA111 Endress+Hauser...
- Page 27 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
- Page 28 www.endress.com/worldwide BA135C/07/en/06.07 Printed in Germany / FM+SGML 6.0 / DT 71042049...
