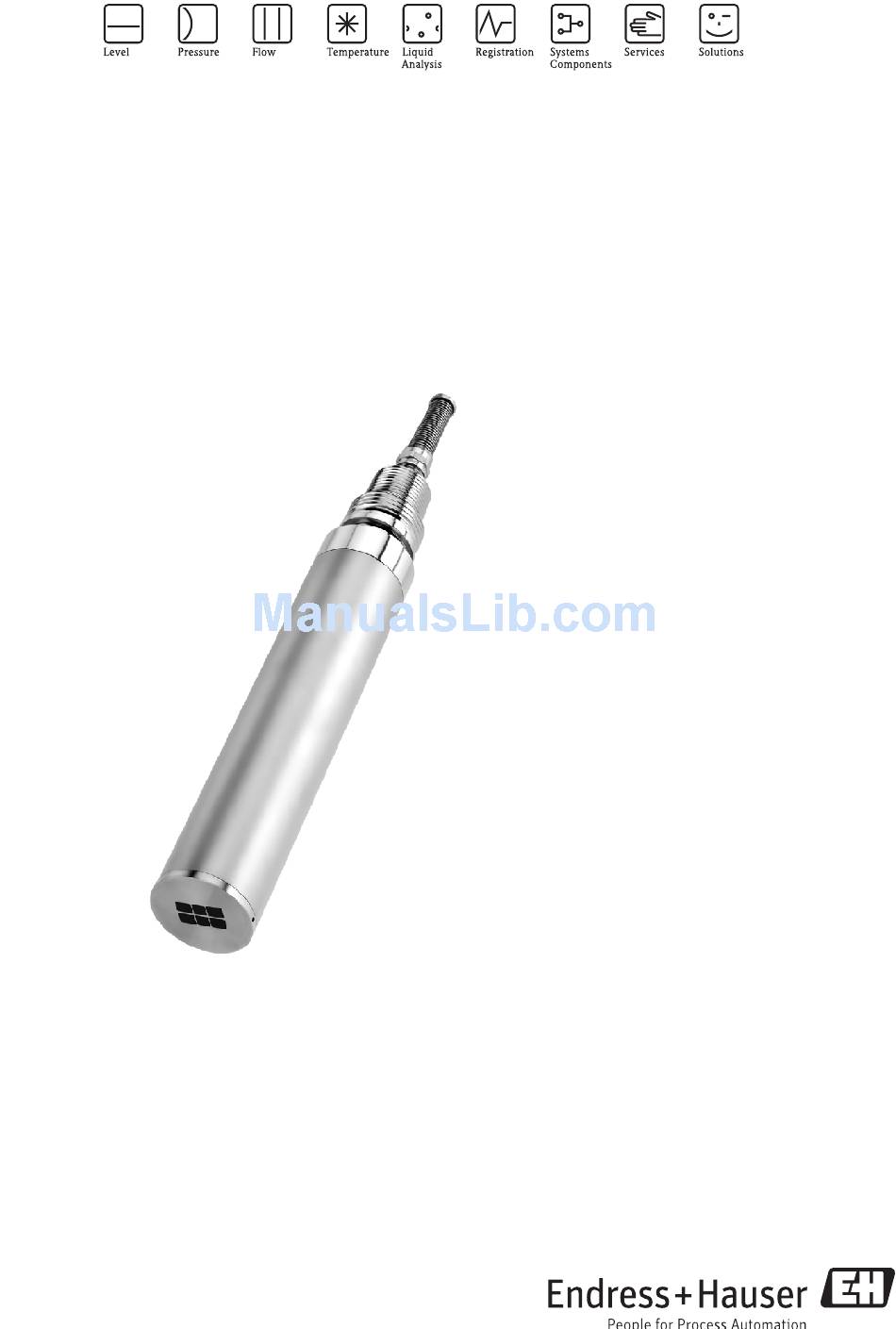

Technical Information

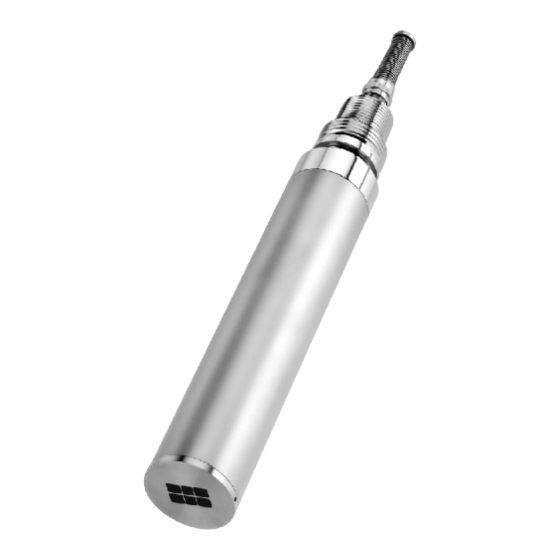

Turbimax CUS51D
Sensor for turbidity and solids content
Installation and immersion sensor for low, middle and high turbidity and
solids concentrations
TI00461C/07/EN/14.12
71159923
Application
Turbimax CUS51D is a sensor for all applications of wastewater
treatment.
• Turbidity measurement in the outlet
• Suspended solids in the activated sludge basin and in the
recirculation
• Suspended solids in the sludge treatment
• Filterable solids in the outlet
Your benefits
• All sensor principles (90°, 135° and four-beam pulsed light)
are included in the sensor head and allow optimal adaption to
the measurement task.
• The sensor is factory-calibrated (basis formazine). All
selectable applications (e.g. activated sludge) are precalibrated
and allow quick and easy commissioning.
• Standardized communication (Memosens technology) allows
"plug and play".
• Intelligent sensor - all characteristics and calibration values
are stored in the sensor.
• Calibrations provided by the customer with up to 5 points -
realizable in lab or on site.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Turbimax CUS51D
Summary of Contents for Endress+Hauser Turbimax CUS51D
-
Page 1: Technical Information
Installation and immersion sensor for low, middle and high turbidity and solids concentrations Application Turbimax CUS51D is a sensor for all applications of wastewater treatment. • Turbidity measurement in the outlet • Suspended solids in the activated sludge basin and in the recirculation •... -
Page 2: Function And System Design
Turbimax CUS51D Function and system design Measuring principle For turbidity measurement a light beam is sent through the medium and is diverted from its original direction by optically denser particles, e.g. solid matter particles. This process is also called scattering. - Page 3 Turbimax CUS51D Sensor design The turbidity sensor CUS51D is equipped with two independing sensor units that are arranged in parallel. The application-specific analysis of both signals results in stable measured values. a0012966 Arrangement of the light souces and the light receivers Light sources 1 and 2 135°...
- Page 4 Turbimax CUS51D 90° scattered light method The measurement uses a wavelength of 860 nm like described in ISO 7027 / EN 27027. The transmitted light beam is scattered by the solid matter particles in the medium. The scattered beams are detected by scattered light receivers which are arranged at an angle of 90 °...
- Page 5 % * compensation of contamination with four-beam pulsed light Measuring system A complete measuring system comprises: • Turbidity sensor Turbimax CUS51D • Transmitter Liquiline • Assembly: – Assembly Flexdip CYA112 and holder system Flexdip CYH112 or – Retractable assembly , e.g. Cleanfit CUA451...
- Page 6 Turbimax CUS51D a0013334 Measuring system with immersion assembly (example) Transmitter Liquiline Assembly Flexdip CYA112 Weather protection roof Turbidity sensor Turbimax CUS51D Holder system Flexdip CYH112 a0012964 Measuring system with retractable assembly (example) Turbidity sensor Turbimax CUS51D Transmitter Liquiline Retractable assembly Cleanfit CUA451...
- Page 7 Turbimax CUS51D a0013386 Measuring system with immersion assembly and chain holder system Holder system Flexdip CYH112 Assembly Flexdip CYA112 Transmitter Liquiline CM44x Turbidity sensor Turbimax CUS51D Weather protection roof Endress+Hauser...
-
Page 8: Power Supply
Turbimax CUS51D Input Measuring variables Turbidity Solids content Temperature Measuring range CUS51D-**C1 Application Turbidity 0 to 4000 FNU Formazine display range up to 9999 FNU Solids content 0 to 4 g/l Kaolin, filterable solids Temperature -20 to +80 °C (-4 to +176 °F) -
Page 9: Performance Characteristics
Turbimax CUS51D Performance characteristics Maximum measured error Turbidity < 2% of the measured value or 0.1 FNU (the respectively larger value is valid) Solids < 5 % of the measured value or 1 % of full scale ( the respectively larger value is valid); valid... -
Page 10: Installation Conditions
Turbimax CUS51D Installation conditions Installation instructions Mounting applications: • with retractable assembly Cleanfit W CUA451 • with wastewater assembly Flexdip CYA112 and holder system Flexdip CYH112 • with flow assembly Flowfit CYA251 Arrow 1 shows the flow direction. The installation angle α must not exceed 90°. - Page 11 Turbimax CUS51D Pipe installation The following figure illustrates various installation positions in pipes and indicates whether they are permitted or not. a0013011 Orientation and installation positions (with retractable assembly CUA451) • The pipeline diameter must be at least 100 mm (4") if reflective materials (e.g. stainless steel) are used. An onsite calibration is recommended.
-
Page 12: Mechanical Construction
Turbimax CUS51D Mechanical construction Dimensions ¾ “ (1.57) mm (inch) a0013179 Dimensions Cleaning system Cleaning system with pressurized air Consumption: 50 l/min (13.2 gal/min) Primary pressure: 1.5 to 2 bar (22 to 30 psi) Connection: 6/8 mm or 6.35 mm (¼") -
Page 13: Certificates And Approvals
To complete your order code, simply add the accessories code to the end of order code. If you have any questions, please contact your local sales office. Scope of delivery The scope of delivery comprises: • 1 sensor Turbimax CUS51D in the ordered version • 1 Operating Instructions BA461C/07/en Endress+Hauser... - Page 14 Turbimax CUS51D Accessories Assemblies Retractable assembly Cleanfit CUA451 • Retractable assembly with ball valve; for turbidity sensors; material: stainless steel • Ordering per product structure (--> Online configurator, www.products.endress.com/cua451) • Technical Information TI00369C/07/EN Wastewater assembly Flexdip CYA112 • Modular assembly system for sensors in open basins, channels and tanks •...
- Page 15 Turbimax CUS51D Transmitter Liquiline CM44x • Multiple-channel transmitter for the connection of digital sensors with Memosens technology • Power supply: 85 to 265 V AC, 18 to 36 V DC or 20 to 28 V AC (not CM448) • Universally upgradeable •...
- Page 16 TI00461C/07/EN/14.12 71159923 Printed in Germany / FM+SGML 6.0 / DT...
