Description
Asymmetry (when switching on)
Indicators shown on the right light up, interface indicator flashes red
Cause:
Internal fault
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device serviced
Asymmetry (during operation)
Indicators shown on the right light up, interface indicator flashes red
Cause:
Internal fault
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device serviced
ILZ (current zero crossing)
Indicators shown on the right light up, interface indicator flashes red
Cause:
Signal for current zero crossing not present
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device serviced
Current limit
Indicators shown on the right light up, interface indicator flashes red
Cause:
Internal fault
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device serviced
Earth current (earth current watchdog option only)
Indicators shown on the right light up, interface indicator flashes red
Cause:
Current flowing via device earth
Remedy:
-
Check ground earth connection to the workpiece
-
Switch device off and back on again
-
Fault keeps recurring => have device serviced
Mains undervoltage or overvoltage
Indicators shown on the right light up, interface indicator flashes red
Cause:
The mains voltage is outside the tolerance range
Remedy:
-
Check the mains voltage
-
Switch device off and back on again
-
Fault keeps recurring => have device serviced
Open circuit
Indicators shown on the right light up, interface indicator flashes red
Cause:
Output voltage is greater than 113 V
Remedy:
Switch machine off and on again;
if fault keeps recurring, have device serviced
Working voltage
Indicators shown on the right light up, interface indicator flashes red
Cause:
Working voltage >45 V and >2 seconds
Remedy:
Remove start signal =>
=> Check process =>
=> Set start signal again

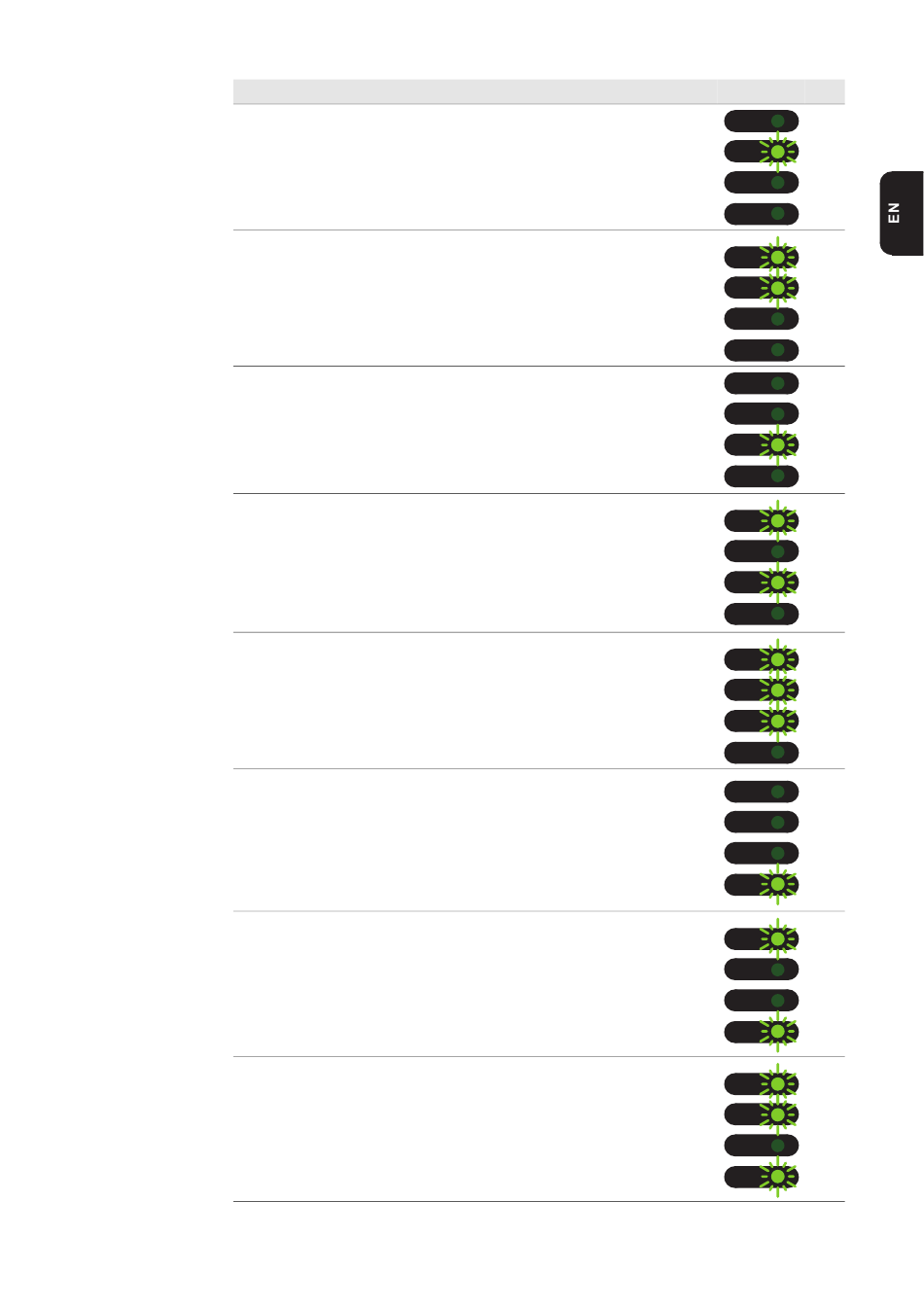

Indicator
No.
A
B
2
C
D
A
B
3
C
D
A
B
4
C
D
A
B
5
C
D
A
B
7
C
D
A
B
8
C
D
A
B
9
C
D
A
B
11
C
D
