TransSteel 3500/5000 Syn

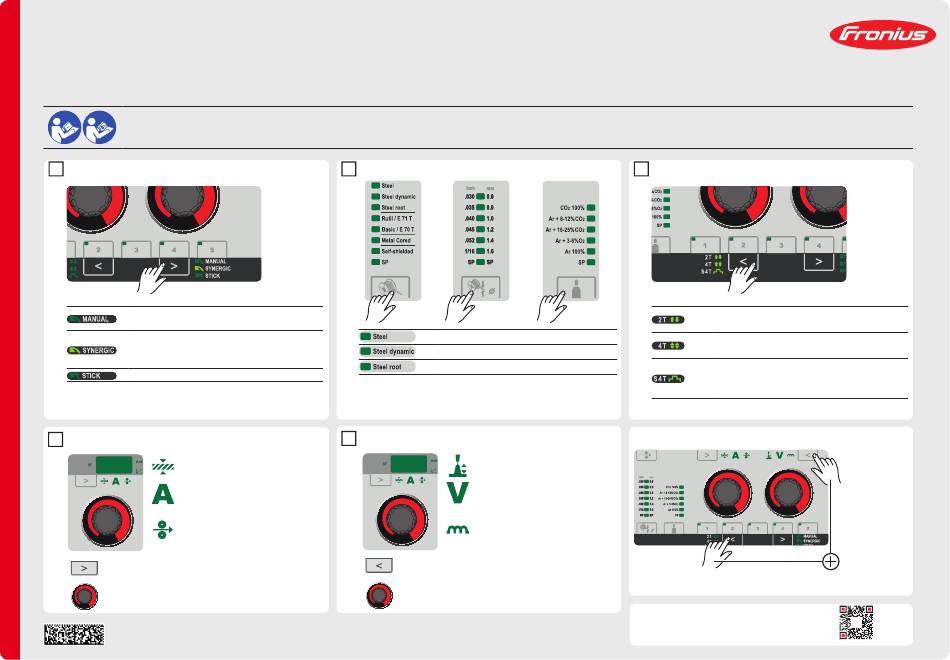

Quick guide to synergic welding
SAFETY
Before working with the device, ensure that you have read and understood all the documents provided in hard copy and online.
This document does not describe all the functions of the device. For a complete description of the device, refer to the Operating Instructions.
1 Setting the welding process
The welding power parameters can be
adjusted individually
When setting a welding power parame-
ter, the remaining parameters are set
automatically
MMA welding
4 Setting the welding power
Sheet thickness
Welding current
Wire speed
select desired parameter
set desired parameter
42,0426,0256,EN 003-01092017
2 Setting the filler metal and shielding gas
1 . 2 .
Standard welding
Fast welding, concentrated arc
Root pass welding, powerful arc
5 Adjusting parameters for correction
Arc length correction
Welding voltage
Arc-force dynamic
select desired parameter
set desired parameter
3 Setting the operating mode
3 .
2-step mode: for short weld seams,
tacking work
4-step mode: for longer weld seams,
high level of comfort
Special 4-step mode: offers settings for
starting and final current in addition to
4-step mode
Activating/deactivating the key lock
Operating Instructions:
www.fronius.com/transsteel
