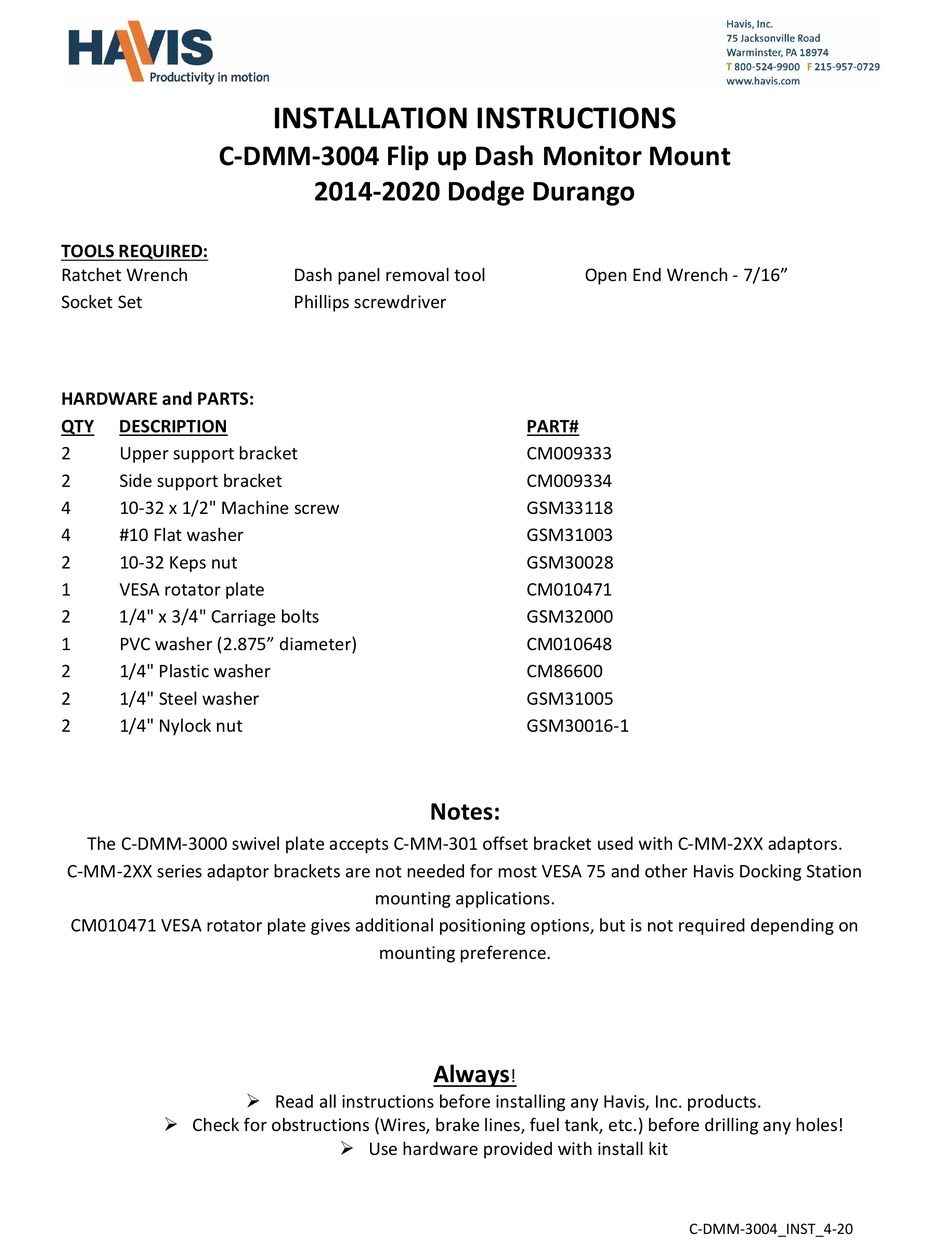

C-DMM-3004 Flip up Dash Monitor Mount

TOOLS REQUIRED:

Ratchet Wrench
Socket Set

HARDWARE and PARTS:

QTY
DESCRIPTION
2
Upper support bracket
2
Side support bracket
4
10-32 x 1/2" Machine screw
4
#10 Flat washer
2
10-32 Keps nut
1
VESA rotator plate
2
1/4" x 3/4" Carriage bolts
1
PVC washer (2.875" diameter)
2
1/4" Plastic washer
2
1/4" Steel washer
2
1/4" Nylock nut
The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX adaptors.
C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking Station
CM010471 VESA rotator plate gives additional positioning options, but is not required depending on
 Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!
Installation INSTRUCTIONS
2014-2020 Dodge Durango
Dash panel removal tool
Phillips screwdriver
mounting applications.
mounting preference.
 Read all instructions before installing any Havis, Inc. products.
 Use hardware provided with install kit
Open End Wrench - 7/16"
PART#
CM009333
CM009334
GSM33118
GSM31003
GSM30028
CM010471
GSM32000
CM010648
CM86600
GSM31005
GSM30016-1
Notes:
Always
!
C-DMM-3004_INST_4-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-DMM-3004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Havis C-DMM-3004

  • Page 1 Notes: The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX adaptors. C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking Station mounting applications. CM010471 VESA rotator plate gives additional positioning options, but is not required depending on mounting preference.
  • Page 2 C-DMM-3004 CM009333 Assembly Upper support brackets GSM33118 10-32 x 1/2” Machine screw GSM31003 #10 Flat washer CM86600 1/4" Plastic washer GSM31005 1/4" Steel washer GSM30016-1 1/4" Nylock nut CM009334 Side support bracket GSM33118 10-32 x 1/2" Machine screw GSM32000 – 1/4"x GSM30028 3/4"Carraige bolt...
  • Page 3 View of dash center instrument panel Carefully remove trim bezel / panel assembly using plastic panel tool. Remove (4) 7mm head fasteners around OEM Remove trim panel and set aside. screen. Attach the upper support brackets behind the OEM screen mounts and reinstall fasteners. Repeat process for lower side support brackets.
  • Page 4 Position VESA plate on back of Device as desired. Attach the DMM frame to the brackets using 10-32 Attach VESA plate with carriage bolts to the back x 1/2" screws and washers at the top and 10-32 x of the dock. The gray PVC washer will go between 1/2"...
