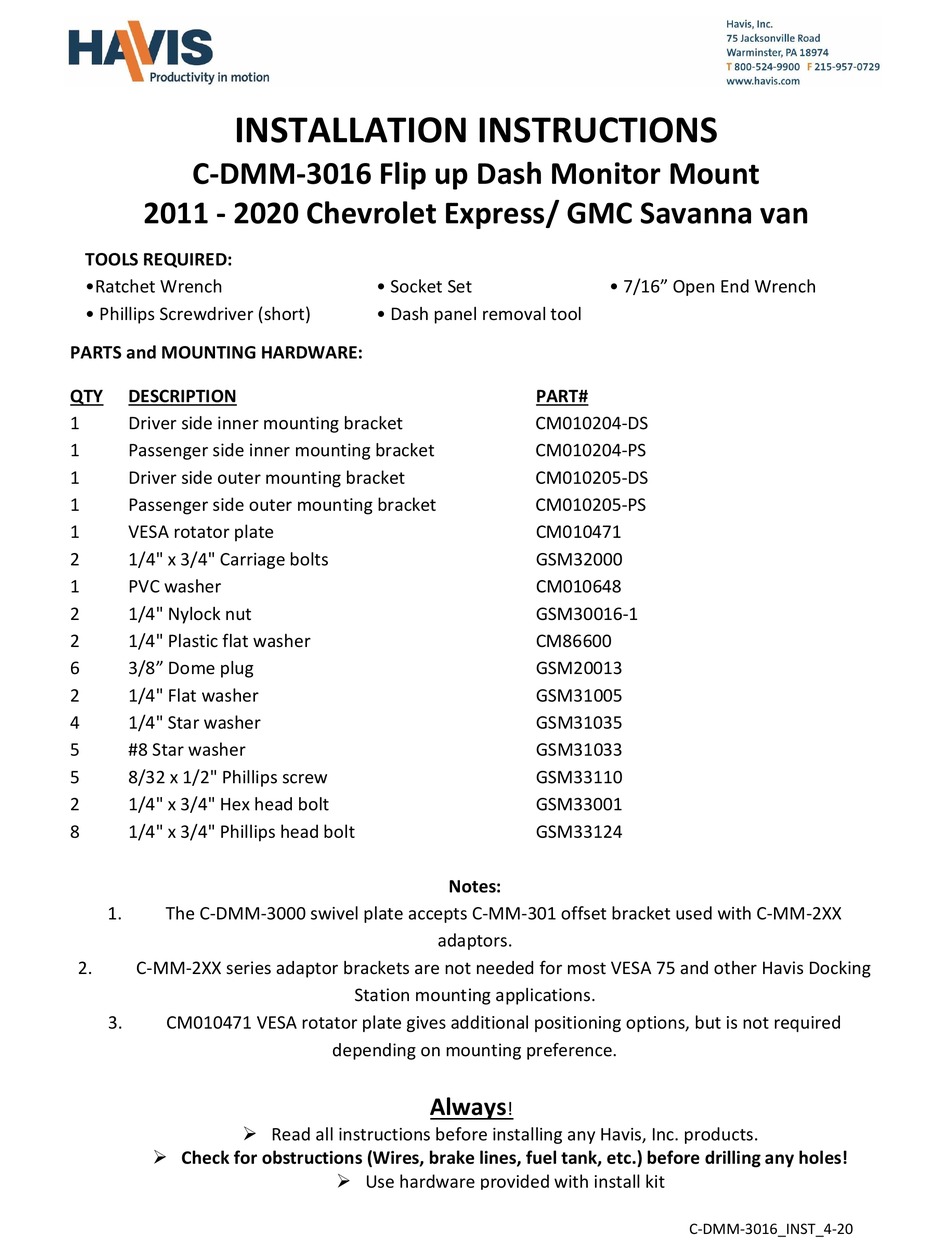

INSTALLATION INSTRUCTIONS
C-DMM-3016 Flip up Dash Monitor Mount
2011 - 2020 Chevrolet Express/ GMC Savanna van
TOOLS REQUIRED:
•Ratchet Wrench
• Phillips Screwdriver (short)
PARTS and MOUNTING HARDWARE:
QTY
DESCRIPTION
1
Driver side inner mounting bracket
1
Passenger side inner mounting bracket
1
Driver side outer mounting bracket
1
Passenger side outer mounting bracket
1
VESA rotator plate
2
1/4" x 3/4" Carriage bolts
1
PVC washer
2
1/4" Nylock nut
2
1/4" Plastic flat washer
6
3/8" Dome plug
2
1/4" Flat washer
4
1/4" Star washer
5
#8 Star washer
5
8/32 x 1/2" Phillips screw
2
1/4" x 3/4" Hex head bolt
8
1/4" x 3/4" Phillips head bolt
1.
The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX
2.
C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking
3.
CM010471 VESA rotator plate gives additional positioning options, but is not required
Read all instructions before installing any Havis, Inc. products.
Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!
• Socket Set
• Dash panel removal tool
Notes:
adaptors.
Station mounting applications.
depending on mounting preference.
Always
!
Use hardware provided with install kit
• 7/16" Open End Wrench
PART#
CM010204-DS
CM010204-PS
CM010205-DS
CM010205-PS
CM010471
GSM32000
CM010648
GSM30016-1
CM86600
GSM20013
GSM31005
GSM31035
GSM31033
GSM33110
GSM33001
GSM33124
C-DMM-3016_INST_4-20
Advertisement
Table of Contents
Related Manuals for Havis C-DMM-3016
Summary of Contents for Havis C-DMM-3016
- Page 1 The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX adaptors. C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking Station mounting applications. CM010471 VESA rotator plate gives additional positioning options, but is not required depending on mounting preference.
- Page 2 C-DMM-3016 CM010204-DS GSM33001 GSM31035 CM010205-DS GSM20013 CM010205-PS GSM33124 GSM30016-1 GSM31005 CM86600 CM010204-PS GSM33124 GSM32000 CM010471 CM010648 C-DMM-3016_INST_4-20...
- Page 3 OEM dash prior to installation Carefully remove driver side lower dash panel. It may not be necessary to be completely removed. Carefully remove passenger side lower dash panel. Detach center dash panel and pull out passenger It may not be necessary to be completely removed. side only as far as needed to remove the AM/FM (10 mm socket) radio.
- Page 4 Unscrew and lower OEM HVAC control. Unplug all connectors from rear of OEM HAVC Screw will be reused. controller 7mm head screw Remove plastic radio mounting ring. Attach inner driver side mounting bracket to dash This will not be reused. using previously removed OEM hardware.
- Page 5 Attach outer passenger side mounting bracket. Attach top mount hole with 1/4" x 3/4” Hex head bolt This bracket has a bend at the top that is designed and 1/4" Star washer. to hook around the top on the inner bracket. Phillips head bolt shown in picture for reference only Attach lower mount holes with 1/4"...
- Page 6 Place frame over radio, HVAC controller, and Tighten using 1/4" x 3/4" Phillips head bolts and outer mounting brackets. #10 star washers. Position VESA plate on back of Device as desired. Attach VESA plate with carriage bolts to the back Tighten radio and HVAC controller through access of the dock.
