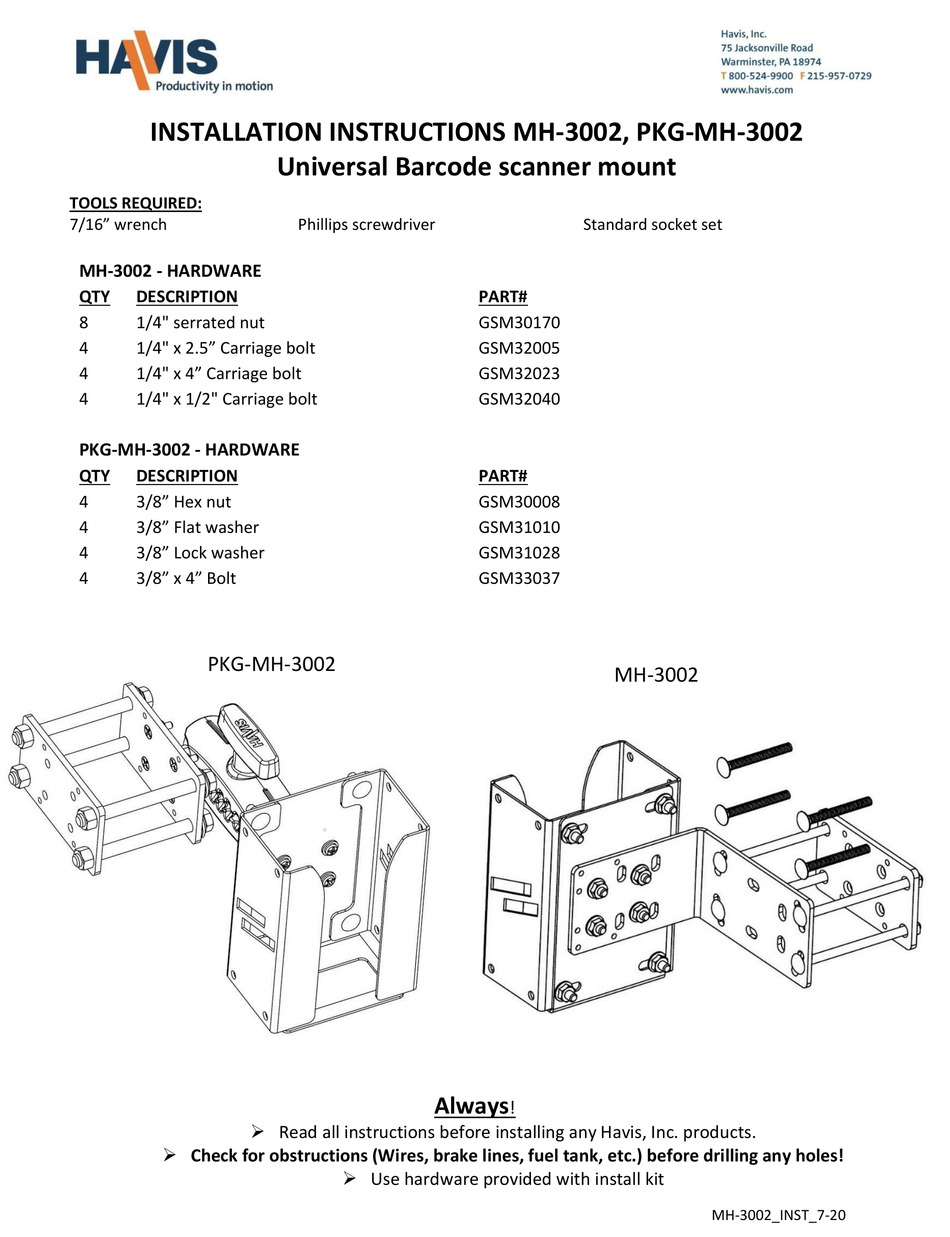

Installation Instructions MH-3002, PKG-MH-3002
TOOLS REQUIRED:
7/16" wrench
MH-3002 - HARDWARE
QTY
DESCRIPTION
8
1/4" serrated nut
4
1/4" x 2.5" Carriage bolt
4
1/4" x 4" Carriage bolt
4
1/4" x 1/2" Carriage bolt
PKG-MH-3002 - HARDWARE
QTY
DESCRIPTION
4
3/8" Hex nut
4
3/8" Flat washer
4
3/8" Lock washer
4
3/8" x 4" Bolt
PKG-MH-3002
Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!
Universal Barcode scanner mount
Phillips screwdriver
Read all instructions before installing any Havis, Inc. products.
Use hardware provided with install kit
Standard socket set
PART#
GSM30170
GSM32005
GSM32023
GSM32040
PART#
GSM30008
GSM31010
GSM31028
GSM33037
MH-3002
Always
!
MH-3002_INST_7-20
Advertisement
Table of Contents
Related Manuals for Havis MH-3002
Summary of Contents for Havis MH-3002
- Page 1 3/8” x 4” Bolt GSM33037 PKG-MH-3002 MH-3002 Always Read all instructions before installing any Havis, Inc. products. Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit MH-3002_INST_7-20...
- Page 2 Determine orientation of mount on forklift and Determine width of scanner and adjust cradle by attach rear “L” bracket accordingly using (4) 1/4" x loosening serrated nuts at corners of mount. 1/2” carriage bolts and serrated nuts. Clamp cradle to forklift with backing plate and Excess bolt threads can be removed if desired supplied bolts and nuts.
