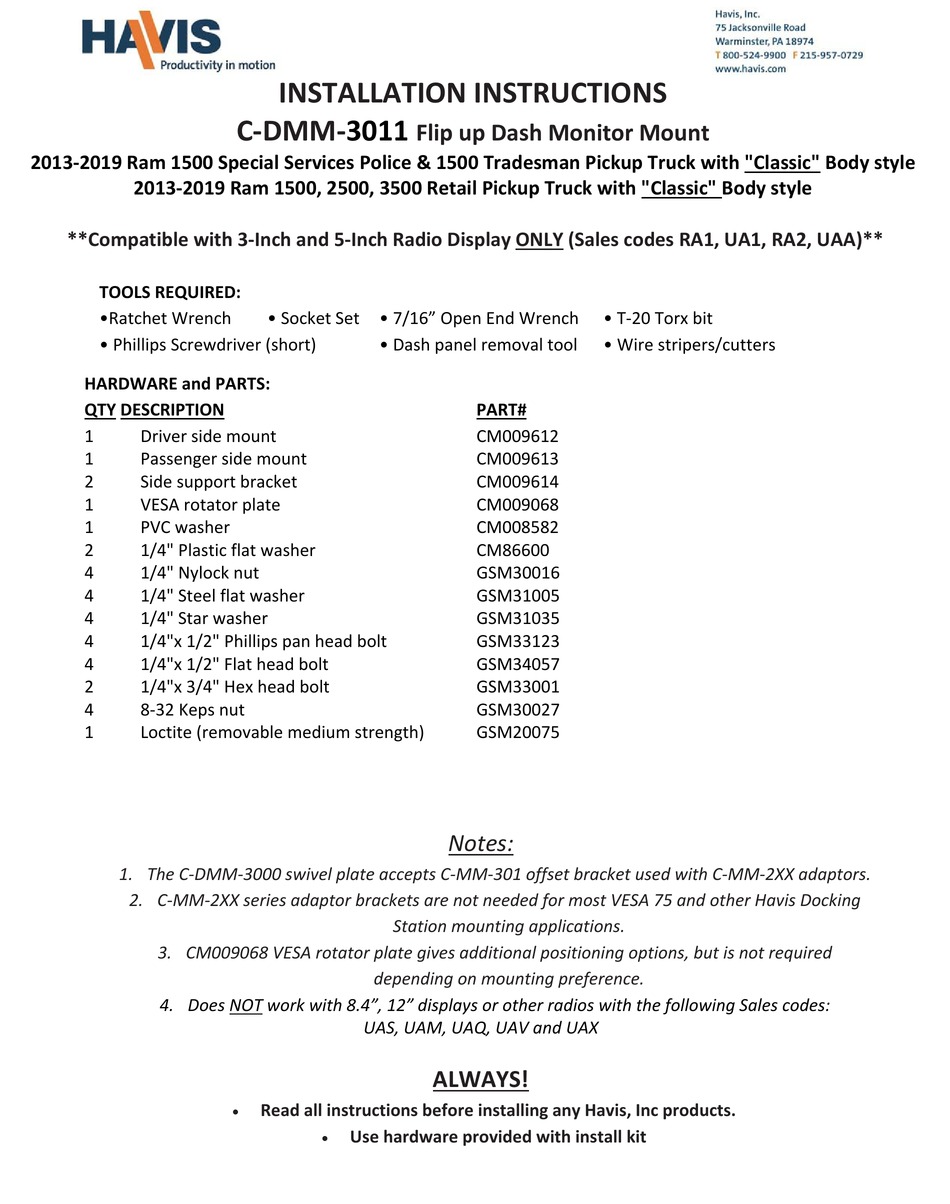

2013‐2019 Ram 1500 Special Services Police & 1500 Tradesman Pickup Truck with "Classic" Body style
2013‐2019 Ram 1500, 2500, 3500 Retail Pickup Truck with "Classic" Body style
**Compatible with 3‐Inch and 5‐Inch Radio Display ONLY (Sales codes RA1, UA1, RA2, UAA)**
TOOLS REQUIRED:
•Ratchet Wrench
• Phillips Screwdriver (short)
HARDWARE and PARTS:
QTY DESCRIPTION
1
Driver side mount
1
Passenger side mount
2
Side support bracket
1
VESA rotator plate
1
PVC washer
2
1/4" Plastic flat washer
4
1/4" Nylock nut
4
1/4" Steel flat washer
4
1/4" Star washer
4
1/4"x 1/2" Phillips pan head bolt
4
1/4"x 1/2" Flat head bolt
2
1/4"x 3/4" Hex head bolt
4
8‐32 Keps nut
1
Loctite (removable medium strength)
1. The C‐DMM‐3000 swivel plate accepts C‐MM‐301 offset bracket used with C‐MM‐2XX adaptors.
2. C‐MM‐2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking
3. CM009068 VESA rotator plate gives additional positioning options, but is not required
4. Does NOT work with 8.4", 12" displays or other radios with the following Sales codes:
INSTALLATION INSTRUCTIONS
C‐DMM‐3011
• Socket Set • 7/16" Open End Wrench
• Dash panel removal tool
Station mounting applications.
depending on mounting preference.
UAS, UAM, UAQ, UAV and UAX
Read all instructions before installing any Havis, Inc products.
Use hardware provided with install kit
Flip up Dash Monitor Mount
PART#
CM009612
CM009613
CM009614
CM009068
CM008582
CM86600
GSM30016
GSM31005
GSM31035
GSM33123
GSM34057
GSM33001
GSM30027
GSM20075
Notes:
ALWAYS!
• T‐20 Torx bit
• Wire stripers/cutters
C‐DMM‐3011_INST_3‐19
Advertisement
Table of Contents
Related Manuals for Havis C-DMM-3011
Summary of Contents for Havis C-DMM-3011
- Page 1 4 1/4"x 1/2" Flat head bolt GSM34057 2 1/4"x 3/4" Hex head bolt GSM33001 4 8‐32 Keps nut GSM30027 1 Loctite (removable medium strength) GSM20075 Notes: 1. The C‐DMM‐3000 swivel plate accepts C‐MM‐301 offset bracket used with C‐MM‐2XX adaptors. 2. C‐MM‐2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking Station mounting applications. 3. CM009068 VESA rotator plate gives additional positioning options, but is not required depending on mounting preference. 4. Does NOT work with 8.4”, 12” displays or other radios with the following Sales codes: UAS, UAM, UAQ, UAV and UAX ALWAYS! Read all instructions before installing any Havis, Inc products. Use hardware provided with install kit C‐DMM‐3011_INST_3‐19 ...
- Page 2 C‐DMM‐3011 Assembly CM009613 CM009614 Passenger side Side support bracket Mount (One each side) CM009612 CM86600 ‐ 1/4" Plastic washer Driver side GSM30027 GSM31005 ‐ 1/4" Steel washer Mount 8‐32 Keps nut GSM30016 ‐ 1/4" Nylock nut GSM33001 1/4"x 3/4" Hex bolt GSM30016 CM009068 1/4" Nylock nut VESA rotator Frame and hinge GSM31005 plate mount assembly 1/4" Flat washers (Not shown) CM008582 PVC washer GSM34057 ‐ 1/4"x 1/2" Flat head bolt GSM20075 ‐ Loctite GSM33123 ‐ 1/4"x 1/2" Pan head bolt GSM3103 ‐ 1/4" Star washer C‐DMM‐3011_INST_3‐19 ...
- Page 3 Dodge Ram Pickup dash with Uconnect® 3 Remove rubber liner in lower right dash pocket. Radio with 5‐Inch Display prior to installation. Remove rubber liner and remove screws in Remove screw in lower right dash pocket. upper center coin tray. (T20 Torx bit) (T20 Torx bit) Remove radio mount screws, unplug and Carefully partially remove center instrument remove radio control. (7mm socket) panel. This does not need to be unplugged. C‐DMM‐3011_INST_3‐19 ...
- Page 4 Attach driver and passenger side mount brackets Loosely attach driver and passenger side mount to inner OEM frame with 1/4"x 3/4" hex head brackets (CM009612 & CM009613) to radio mount bolts, flat washers and nylock nuts. holes with OEM radio mount screws. Tighten mount bracket hardware. Snap center instrument panel back into place. Mount brackets will come out through sides of radio opening. Attach side support bracket to driver side mount Reattach upper coin tray and lower dash bracket with 1/4"x 1/2" flat head bolts. pocket with previously removed screws. Note: Use a drop of Loctite on each bolt. C‐DMM‐3011_INST_3‐19 ...
- Page 5 Attach side support bracket to passenger side Plug radio back in and attach to support brackets mount bracket with 1/4"x 1/2" flat head bolts. with 8‐32 Keps nuts. (11/32” socket) Note: Use a drop of Loctite on each bolt. Place frame & hinge assembly onto support brackets Attach frame with 1/4" x 1/2” pan head and make sure it fits around radio properly. bolts and star washers. Driver side shown. Attach VESA plate to the back of the dock. Attach frame with 1/4" x 1/2” pan head bolts The gray nylon washer will go between this and star washers. Passenger side shown. bracket and the DMM swivel plate. C‐DMM‐3011_INST_3‐19 ...
- Page 6 Determine desired position for your specific computer Route wiring along the side of the DMM flip up and attach to DMM swivel plate using 1/4"nylon washers, steel washers, and nylock nuts. Tighten so that frame using wire ties and existing holes. the dock rotates smoothly. (Firm, but not too tight) Push up latch to release and lift Test up / down and side to side motion to confirm Check and adjust positioning as desired. wires have adequate slack and strain relief. Test for proper latching in closed position. Dock the computer and test. Installation is now complete. C‐DMM‐3011_INST_3‐19 ...
