C-MD-112

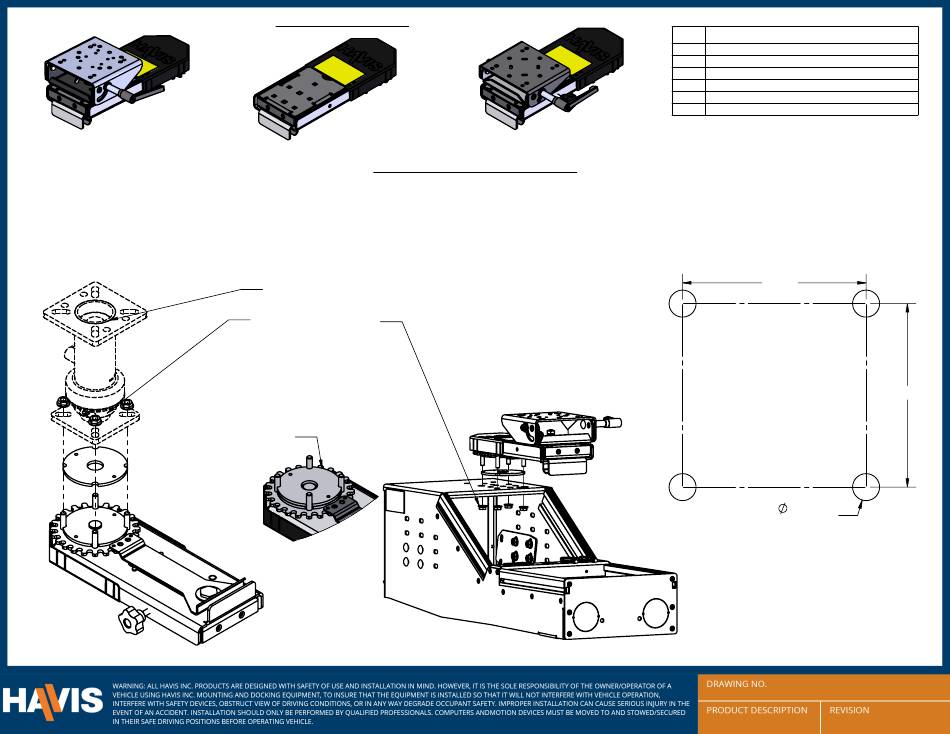

MD-110 SERIES MOTION DEVICES CAN BE MOUNTED TO ANY FLAT SURFACE, INCLUDING CONSOLE TOPS AND HDM POLES. IF SURFACE DOES NOT HAVE
PREDRILLED HOLES, USE THE DRILL TEMPLATE TO THE RIGHT.
•
PLACE MD-110 SERIES ON TOP OF MOUNTING SURFACE, ALIGNING THE MOUNTING SPACER
AND (4) STANDOFFS OF MD-110 SERIES BASE WITH THE (4) 1/4" HOLES THROUGH MOUNTING SURFACE.
•
INSTALL THE (4) FLANGE NUTS AS SHOWN IN THE DIAGRAM BELOW.
•
TIGHTEN ALL HARDWARE.
MOUNTING SPACER
INSTALLED POSITION
VIEW FROM BOTTOM FOR CLARITY
MD-110 SERIES MODELS
C-MD-114
SURFACE MOUNTING INSTRUCTIONS
HAVIS HDM-200 SERIES POLE SHOWN (NOT INCLUDED)
1/4-20 FLANGE NUT
(GSM30023)
HAVIS VS CONSOLE
SHOWN (NOT INCLUDED)
REV.
7-16
9-16
3-17
10-19
2-20
10-21
C-MD-119
INSTALLATION INSTRUCTION C-MD SERIES
DESCRIPTION
RELEASED TO PRODUCTION
ADDED C-MD-111 & C-MD-113
REMOVED C-MD-111 & C-MD-113 REFERENCES
UPDATED TO REFLECT NEW RIVETED TILT SWIVEL
GSM34061 WAS GSM34063
UPDATED TO REFLECT DESIGN CHANGES
DRILL TEMPLATE
2.125
2.125
.312, 4X
(5/16")
C-MD-INST-3
10-21
