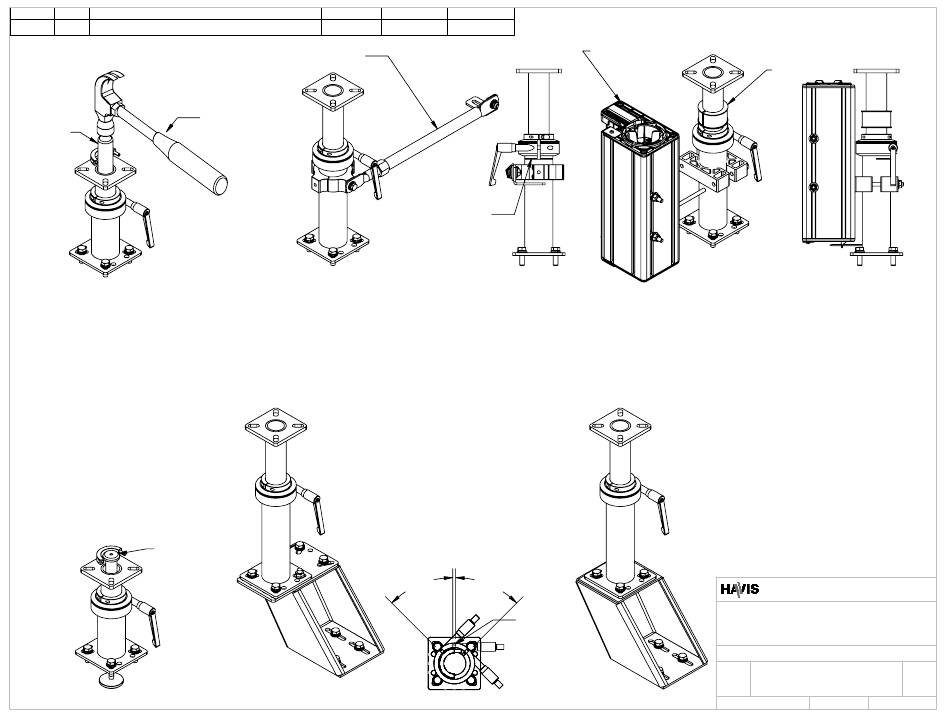

Havis C-HDM Series Installation Instructions

REV. DESCRIPTION
PROJECT #
REVISION DATE CORRECTED TO PT895 DOCUMENTED CHANGE.
3-13
1765
NO OTHER CHANGES
7/8" - 1"
DIAMETER
OBJECT
A-
GUIDE RING BUSHING REMOVAL
WE STRONGLY RECOMMEND NOT TO REMOVE THE
GUIDE RING BUSHING, BUT IF REMOVAL OF INNER POLE
IS DESIRED - FOLLOW THIS SIMPLE REMOVAL
INSTRUCTION
1. INSERT MAXIMUM 1" DIAMETER OBJECT WITH
SUFFICIENT LENGTH AND DROP INSIDE INNER POLE.
2. MAKE SURE NOTHING PREVENTS GUIDE RING
BUSHING FROM BEING EJECTED UNDERNEATH. HIT
WITH A HAMMER TO FORCE THE GUIDE RING
BUSHING OUT.
D-
INSTALL GAS SHOCK (OPTIONAL)
1. (SKIP IF GAS SHOCK IS NOT IN USE)
2. UNSCREW SMALL PLASTIC DISC FROM SHOCK
INSERT GAS SHOCK ASSEMBLY UPWARD FROM
THE BOTTOM OF HDM POLE ASSEMBLY WITH GAS
SHOCK'S ROD FACING DOWNWARD. GAS
SHOCK WILL SANDWICH BETWEEN MOUNTING
BASE C-HDM-100 SERIES (NOT SHOWN) AND
ACTION ADAPTER C-HDM-300 SERIES (NOT
SHOWN).
3. ONCE GAS SHOCK SITS PROUD OF THE INNER
POLE REATTACH SMALL PLASTIC DISC
GAS SHOCK
(OPTIONAL)
DATE
8/5/2014
SUPPORT ARM
(OPTIONAL)
HAMMER
B -
INSTALL SPIDER COLLAR (OPTIONAL
COMES WITH C-HDM-401 & 403)
1. IF MOUNTING THE SPIDER COLLAR TO THE INNER
POLE USE CM003406 REDUCING BUSHING. SPREAD
AND SNAP OVER THE INNER POLE.
2. LOOSELY ATTACH SPIDER COLLAR TO THE OUTER
POLE OR CM003406. DO NOT MOUNT SPIDER
COLLAR ABOVE OUTER POLE HORIZONTAL CUT.
E -
INSTALL C-HDM-409 OPTIONAL
& COLLAR CLAMP ALIGNMENT
1. THIS CAN BE DONE EITHER AT THIS POINT OR ONCE
THE C-HDM-100 SERIES BASE IS ALREADY IN THE
VEHICLE. YOU WILL NEED THE OFFSET THAT WAS
WIITH THE C-HDM-100 BASE IF APPLICABLE.
2. DECIDE ON THE ORIENTATION OF THE C-HDM-409.
ENSURING THAT IF THE HANDLE VERSION OF THE
POLE IS BEING USED THE TWO SLOTS ARE NO MORE
THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE
POLE TO THE CORRECT POSITION.
3. IF NO HANDLE IS BEING USED ENSURE THE OUTER
POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.
4. TIGHTEN ALL THE HARDWARE.
BY CHECKED BY
KDAVIS
SPIDER MUST BE
BELOW THIS SLOT
ON THE OUTER POLE
45° 45°
MAX MAX
SLOTS IN TUBE
AND CLAMP
ALIGNED
CM003406 REDUCING
BUSHING IS NECESSARY
IF MOUNTING TO
C-PM-101
THE INNER POLE.
SOLD SEPARATELY
(USE ONLY ON FIXED
C -
INSTALL OPTIONAL C-HDM-416
1. IF MOUNTING C-HDM-416 TO THE INNER POLE USE
CM003406. SPREAD THE PIECE AND IT SHOULD SNAP
OVER THE INNER POLE.
2. ATTACH C-PM-101 TO CLAMP ASSEMBLY USING
LONG CARRIAGE BOLTS INSERTED THROUGH THE
PRINTER AND ONE PIECE OF EXTRUSION.
3. ATTACH POLE CLAMP TO THE OUTER POLE OR
CM003406. AFFIX SECOND PIECE OF EXTRUSION
AROUND POLE AND LOOSELY TIGHTEN THE
HARDWARE. DO NOT MOUNT CLAMP ABOVE
OUTER POLE HORIZONTAL CUT.
F -
INSTALL C-HDM-410-412 OPTIONAL
1. THIS CAN BE DONE EITHER AT THIS POINT OR ONCE
THE C-HDM-100 SERIES BASE IS ALREADY IN THE
VEHICLE. YOU WILL NEED THE OFFSET THAT WAS
WIITH THE C-HDM-100 BASE IF APPLICABLE.
2. DECIDE ON THE ORIENTATION OF THE OFFSET.
ENSURING THAT IF THE HANDLE VERSION OF THE
POLE IS BEING USED THE TWO SLOTS ARE NO MORE
THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE
POLE TO THE CORRECT POSITION.
3. IF NO HANDLE IS BEING USED ENSURE THE OUTER
POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.
4. TIGHTEN ALL THE HARDWARE.
TITLE:
INSTALLATION INSTRUCTIONS, C-
HDM MOUNTING BASES
DWG. NO.
SIZE
A
C-HDM_INST
WEIGHT (LB): 12.634
HEIGHT POLES)
75 JACKSONVILLE RD,
HAVIS, INC.
WARMINSTER, PA. 18974
1-800-524-9900
DO NOT SCALE DRAWING
REV
3-13
SCALE: 1:8 SHEET 1 OF 4
