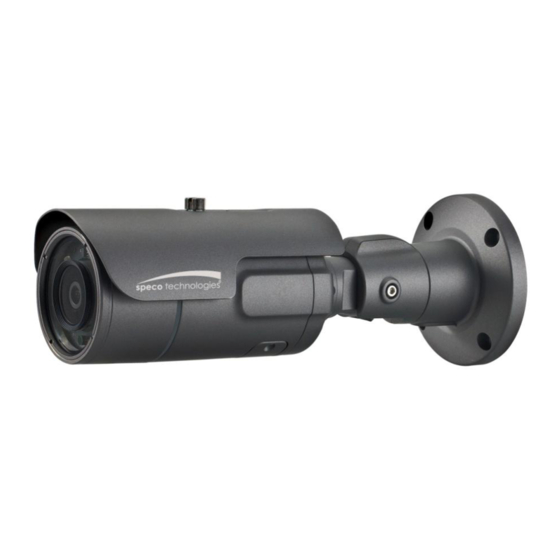

- Page 1 Flexible Intensifier® Technology Bullet IP Camera QUICK INSTALLATION GUIDE O6FB7M Please read this manual carefully before installation and operation of the product.
- Page 2 Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read it carefully before operating the product and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support. CAUTION...
-
Page 3: Limitation Of Liability
PRECAUTIONS Please read the manual carefully before the installation in order to set up the camera correctly and to obtain the best picture quality. Please keep the manual in good condition for your future reference and service application. ... -
Page 4: Product Overview
1. PRODUCT OVERVIEW Key Features 6.82 Mega pixel 1/2.9" SONY progressive scan CMOS image sensor for excellent image quality IP67 rated water-proof Triple Streaming of H.265, H.264 and M-JPEG Supports image resolutions 6M (3072 x 2048) ... -
Page 5: Name And Function Of Each Part
Intelligent Video Motion detection (4 Separate blocks) System Alarm Trigger Motion Detection Integration Firmware Upgrade Remote Upgrade via Network 1 x Factory Reset Button Memory Slot Micro SD card Power Source DC 12V / 1.5A, POE (Power Over Ethernet) : 802.3af Physical Power Consumption Max.7.2W (IR ON) -
Page 6: Name And Function
2.2 Name and Function ITEM DESCRIPTION Analog Video Out (Yellow) Power Connector DC12V Network and POE POE (Power Over Ethernet) and LAN cable Connector Sensor Input : White (Sensor_In), Yellow (GND) Sensor In / Alarm Out Alarm Output : Black (Alarm_Out), Red (COM) Audio-Out Audio Out (White) Audio-In... -
Page 7: Installation
2.3 OSD cap detailed description SD Card Factory Reset CVBS Closing Cap L-Wrench (2.5mm) Closing Cap Open Open the Closing Cap and fasten the Closing Cap well. 3. INSTALLATION 3.1 How to mount to wall Wall_Junction Box Plastic anchor Tapping screw (Ø4 x 30) x 4 Screw x 4... -
Page 8: 3-Axis Adjustment
3.2 3-Axis Adjustment ① Panning 360˚ Slightly loosen Pan Bracket nut then Panning adjust pan of the camera and 360° tighten the Bracket nut. ② Tilt 0˚ ~ 100˚ Rotation Tilt 360° Rotation Tilt Pan Slightly loosen Tilt bolt then 0°100°... - Page 9 3.3.2 Connecting Network Open up IP Scanner. IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. The device is set to DHCP mode by default. In the device list, you can view the IP address, model number, and MAC address of each device.
-
Page 10: Dimensions (Mm)
4. DIMENSIONS (mm)
