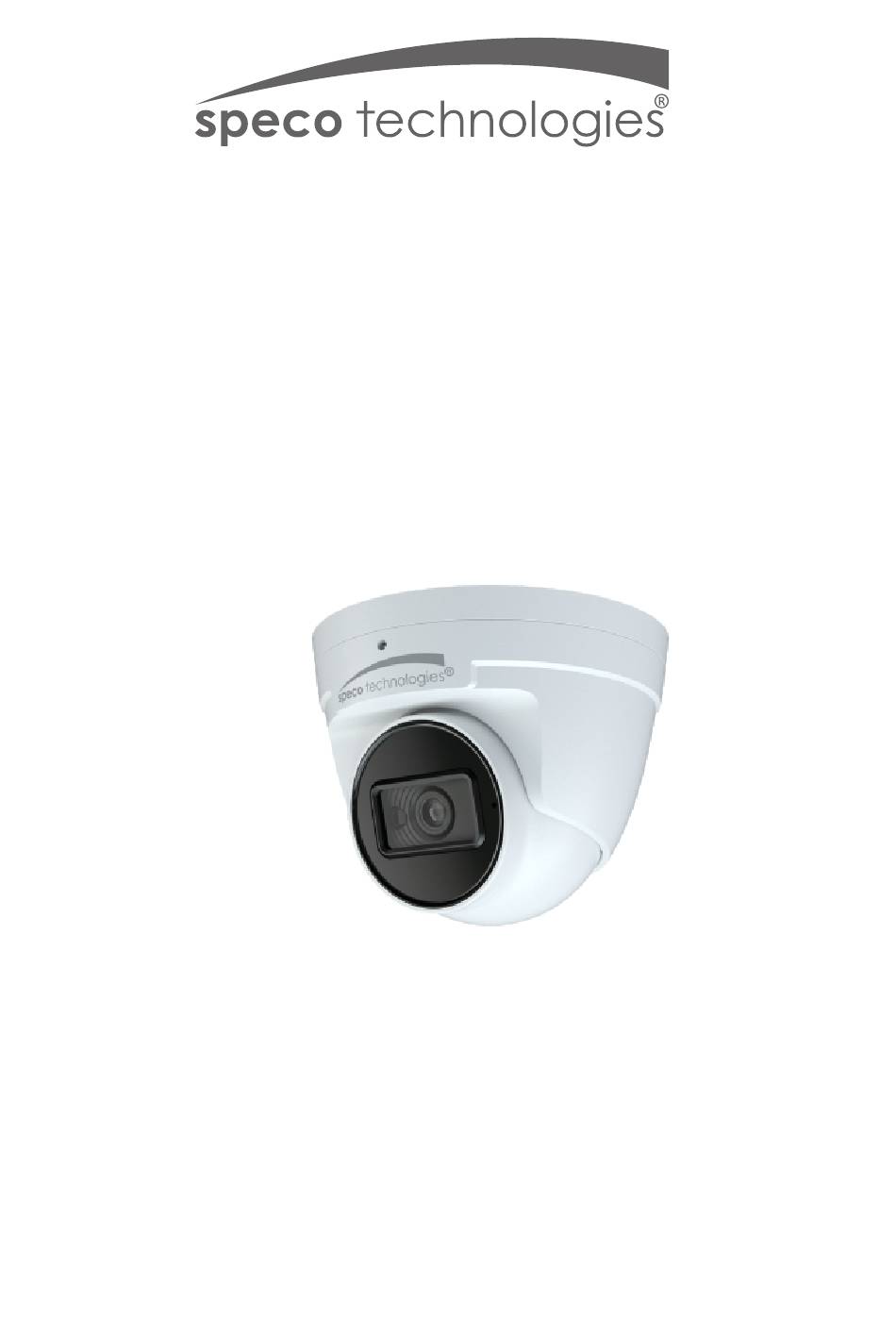

- Page 1 Quick Start Guide O8VT3...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Camera Quick start guide Screwdriver 3 screws (PA 4×25mm) 3 Plastic screw Drill Template anchors Overview Overview Ethernet connector Audio input connector Power connector Mounting base Set screw Microphone Micro SD card slot Reset...
-
Page 5: Connecting Network Cable
External microphone DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. Then crimp the cable with RJ 45 connector. ③... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and the junction box. ①Attach the drill template to the place where you want to install the camera and then drill the screw hole and cable hole on the wall according to the drill template. - Page 7 ③ Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided. 3× ④ Install the camera unit and enclosure to the mounting base and then adjust if necessary to obtain an optimum view angle. Finally, fasten the camera with the set screw.
- Page 8 The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. 5C:F2:07:24:68:9A O8VT3 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
- Page 9 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins.
