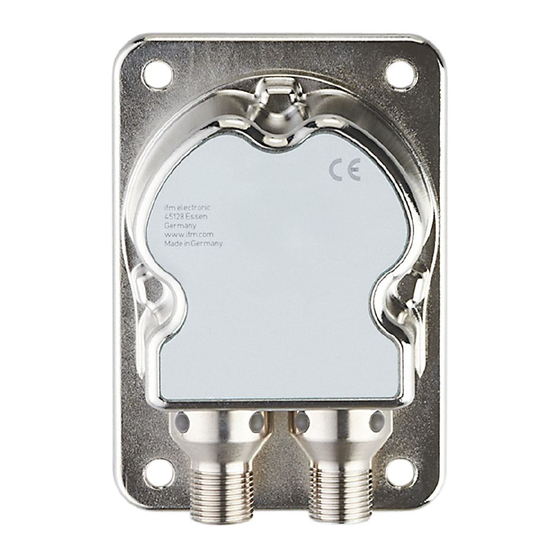

- Page 1 Device manual Inclination sensor 2 axes JN2301 from firmware 2.5.4...
-
Page 2: Table Of Contents
Inclination sensor JN Contents 1 Preliminary note ..........4 1.1 Symbols used. - Page 3 Inclination sensor JN 10.6 Set teach (0x2042) ......... 17 10.7 Quadrant correction (0x2040) .
-
Page 4: Preliminary Note
Inclination sensor JN 1 Preliminary note This document applies to the device of type "inclination sensor" (art. no.: JN2301). It is part of the device. This document is intended for specialists. These specialists are people who are qualified by their appropriate training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device. -
Page 5: Electrical Connection
The connection terminals may only be supplied with the signals indicated in the technical data and/or on the device label and only the approved accessories from ifm may be connected. 2.4 Tampering with the device Contact the manufacturer in case of malfunction of the unit or uncertainties. -
Page 6: Scale Drawing
Inclination sensor JN 5 Scale drawing M12 x1 M12 x1 6 Electrical connection The inclination sensors are fitted with two round 5-pole M12 connectors (A-coded). The pin configuration is as illustrated. 1: CAN_SHLD CAN shield 2: CAN_V+ Supply voltage 24 V DC (+U 3: CAN_GND Ground 4: CAN_H High bus cable... -
Page 7: 7 Sae J1939 Interface
Inclination sensor JN 7 7 SAE J1939 interface The inclination sensors have a standardised SAEJ1939 interface. All measured values and parameter groups can be accessed via the J1939 protocol. The individual configuration can be saved in the internal permanent memory (flash). 7.1 Overview and structure of the SAE J1939 protocol The SAE J1939 protocol uses a 29-bit CAN identifier (extended frame format CAN 2.0B). -
Page 8: Proprietary Pdu Format 1 Protocol
Inclination sensor JN 7.2 Proprietary PDU format 1 protocol The parameters of the JN2301 sensors are listed in a table that is accessed per 16-bit index. To access the sensor parameters in reading or writing the proprietary PDU format 1 message is used. PDU format (PF) corresponds to the value 0xEF. -
Page 9: Configuration Examples
0x00 7.4 Proprietary PDU format 2 messages The measured data of the JN2301 sensor is sent cyclically via proprietary PDU format 2 messages. PDU format (PF) corresponds to the value 0xFF. In this case the PDU-specific byte (PS) is the group extension (GE); it can be freely set by the user in the range 0x00 –... -
Page 10: Configuration Examples
Inclination sensor JN 7.5 Configuration examples For the examples: Address JN2301 (ECU): 0x19, priority: 1 TxPGN0 default group extension (GS): 0x00 X: Angle value longitudinal X Y: Angle value lateral Y CAN identifier 8-byte data frame 0x4FF0019 LSB (X) LSB (Y) -
Page 11: System Settings (0X2000 - 0X207F)
Inclination sensor JN Index Type Value Unit Reset 0x1001 UNSIGNED8 1 byte TxPGN0 LSB PGN0: 0xFFXX default: 0xFF00 0x1002 UNSIGNED16 TxPGN0 cycle time default: 15 ms min. 15 ms, max. 50000 ms 0x1003 UNSIGNED8 TxPGN0 priority default: 1 min. 0 / max. 7 0x1100 UNSIGNED8 Transmit parameter groups... - Page 12 Inclination sensor JN Index Type Value Unit Reset 0x2040 UNSIGNED8 Flag for quadrant correction 0: off 1: on → ± 180° → 2: on 0° - 360° 0x2041 UNSIGNED8 Flag for heating → flag = 0 heating off → flag = 1 heating on 0x2042 UNSIGNED8...
-
Page 13: Informative (0X2080 - 0X2082)
Inclination sensor JN 8.2.1 Informative (0x2080 – 0x2082) Index Type Value Unit Reset 0x2080 INTEGER16 Ambient temperature 1/10 °C 0x2081 INTEGER16 MEMS temperature 1/10 °C 0x2082 UNSIGNED16 Heating power 8.2.2 Upload/download (0x3000) 0x3000 ASCII Programming key 8.2.3 Measured data (0xA000 – 0xA011) 0xA000 INTEGER16 Longitudinal X axis... -
Page 14: Euler Angle (0X2044 = 1)
Inclination sensor JN The second provided value corresponds to a rotation about the X axis of the sensor and is called "lateral inclination value". The value corresponds to the angle [°] between the gravitation vector and the XZ plane of the sensor. In the case of an inclination in a plane (rotation of an axis with the second axis remaining perpendicular) the perpendicular angle and gimbal angle are always identical. -
Page 15: Gimbal Angle Y (0X2044 = 3)
Inclination sensor JN – Inclination value longitudinal: -45°…+45° – Inclination value lateral: -45°…+45° Critical point With a longitudinal inclination of ± 90° ("plane" flies vertically downwards or upwards) the roll angle makes a rotation about the gravitational axis which cannot be detected by the inclination sensor. -
Page 16: Other Sensor Functions
In the case of a change the device address and baud rate do not become effective until after a reset (reset application, reset communication or hardware reset). The inclination sensor from ifm is delivered with the device address (ECU) 25 and a baud rate of 250 Kbits/s. -
Page 17: Set Zero Point (0X2046)
Inclination sensor JN 10.4 Set zero point (0x2046) To set the zero point the sensor is rotated to the requested position and the current position is set as "0". The value of the parameter "set zero point X and Y axes" (index 2046h) is to be set to 1. -
Page 18: Quadrant Correction (0X2040)
-30° 0° 10.7 Quadrant correction (0x2040) Quadrant correction means for JN2301 only an extension of the lateral Euler angle to the measuring ranges ± 180° (corresponds to 2040h = 1) or 0...360° (corresponds to 2040h = 2). 10.8 Heating (0x2041) To ensure good temperature stability over the whole temperature range, the measuring cell is regulated to a constant temperature using a PID controller. -
Page 19: Mems Measuring Cell Temperature (0X2081)
Inclination sensor JN 10.9 MEMS measuring cell temperature (0x2081) The temperature of the measuring cell is determined every 200 ms and updated in the protocol at "informative". It can be read via access to the index 0x2081 The signed 16-bit value indicates the temperature in °C. 10.10 MEMS self-test (0x4008 / 0x4009) To check the function of the measurement axes a self-test of the measuring cell can be carried out. -
Page 20: Dtc - Diagnostic Trouble Codes
Inclination sensor JN 11 DTC – Diagnostic Trouble Codes When the diagnostic function is activated via the index 0x800h/01h, the following DTC messages are sent every second. Meaning of the message (19-bit) (5-bit) (1-bit) (7-bit) DTC1 521001 undervoltage DTC2 521001 overvoltage DTC3 521002... -
Page 21: Status Led
► Dispose of the device in accordance with the national environmental regulations. 14 Approvals/standards The CE declarations of conformity and approvals can be found at www.ifm.com. 14.1 Reference to UL The external supply source and external circuits intended to be connected to this device shall be galv. - Page 22 Inclination sensor JN Index Type Value Delivery 0x2044 Angle calculation 0: corresponds to "perpendicular" 0x2045 CAN 120 Ω terminating resistor 1: corresponds to "activated" 0x2046 Set zero point of the X/Y axes 2: corresponds to "absolute measurement"...
-
Page 23: Technical Data
Inclination sensor JN 16 Technical Data Application Mobile Machines 2-axis adjustment and zero-point levelling for mobile applications Electrical Data Operating voltage [V] 9.2…30 DC Max. current consumption [mA] 405 (@ 9.2 V DC -40°C with activated heating) Protection class Overvoltage category Range Number of axes Angular range [°]... - Page 24 Inclination sensor JN Approvals / tests EMC tests DIN EN61000-4-2 DIN EN61000-4-3 DIN EN61000-4-4 DIN EN61000-4-6 Compliant to ECE R10, Rev. 5 / ISO 7637-3:2007-07 DIN EN 55022, Class B / CISPR 16-2-3 CISPR 25 / ECE R 10 ISO 11452-2 / ECE R 10 ISO 7637-2 / ECE R 10 ISO 7637-3 Mechanical test...
