- Page 1 Smart Flue Gas Analyser DC710 to be used in conjunction with a Smart Phone/Tablet using the TPI View app. The Value Leader www.tpieurope.com...
-
Page 2: Table Of Contents
Calibration & Service Warranty Appendix A - General Maintenance & Function Tests 11, 12 & 13 Download the TPI View App ® Download the TPI View app from the Apple app store or the ® Google play store to begin using your DC710. -
Page 3: Introduction
Introduction Thank you for purchasing TPI brand products. The TPI DC710 combustion analyser is state of the art and easy to use. Connect it to your smart device and you are ready to perform combustion analysis. The instrument is ruggedly constructed and comes with a 5 Year... - Page 4 General Overview (Continued) This manual will guide you through the functions of the TPI DC710 which will give you many years of reliable service. You should keep the battery of your DC710 charged so power is constantly being supplied to your sensors.
-

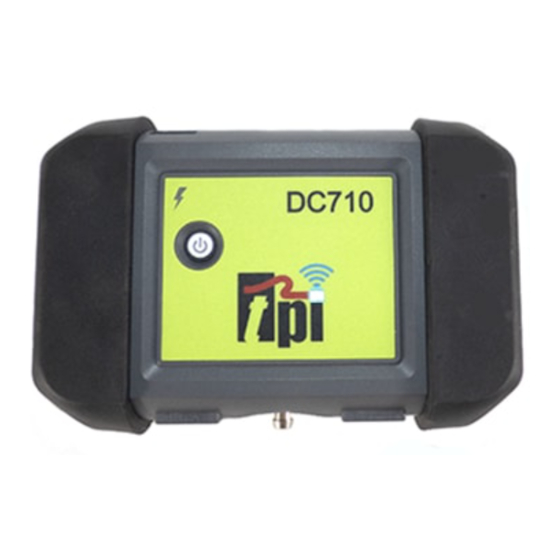

Page 5: Front View
Instrument Overview - Front View Power USB Charger Charge Bluetooth Button Input Jack Indicator Indicator Exhaust Port Rubber End Caps Gas Sample Input Port Input Power Button Used to turn the DC710 on and off. Illuminates green when power is on. USB Charger Input Jack Connection for included charger. -
Page 6: Back View
Instrument Overview - Back View Magnets Hanging Hook Magnets Information Label Magnets: Used to attach the DC710 to a metallic surface for hands free operation. Note: ensure to check that surface is not hot or the DC710 may be damaged. Hanging Hook: Used to hang the DC710 for hands free operation. -
Page 7: Basic Analyser Functions
It is important to keep battery power to the sensors in your analyser even when it is not in use. Your analyser battery status is indicated at the top right corner of the TPI View App. and visible at all times when connected to the app. - Page 8 Connecting to the App (Continued) Note: It is recommended you perform routine general maintenance on you analyser to ensure proper function. Please refer to Appendix A for general maintenance schedule and function tests. Make sure you are in a “clean air” environment and tap “Start Pump”.
-
Page 9: Turning The Analyser Off
Turning The Analyser Off Always: - Before turning OFF, return the instrument to a clean air environment and allow the Carbon Monoxide level to return to below 10ppm and the Oxygen level to return to 20.9% If the pump is running tap “Stop Pump” to turn the pump off. -
Page 10: Specifications 8
SPECIFICATIONS Instrument Operating Temperature Range -10°C to 50°C (-14°F to 122°F) Battery Type Rechargeable Li-ion (3.7V/2600mA) Battery Life >6 hours typical Charger Port USB Connection Fuel Option (within View app) Natural Gas, Light Oil, Heavy Oil, LPG, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood (Dry), Bagasse, Wood Pellet Dimensions... - Page 11 SPECIFICATIONS (Continued) Bluetooth Communication Bluetooth Version: 4.2 FCC ID: QOQBGM111 IC: 5123A-BGM111 : 209-J00192 The DC710 has been tested with the following standards and is in compliance with the council RED directive 2014/53/EU: -...
-
Page 12: Calibration & Service
CALIBRATION & SERVICE It is a requirement that your analyser be calibrated every 12 months. Please consult TPI Europe Ltd for further details or call our service department on the following number : - 01293 530196 Opt. 2 Alterntively visit : - https://www.tpieurope.com/annual-service-warranty-procedure/... - Page 13 Signs of dirty or water saturated filters are a slow pump, when the flue probe is connected, and measurements that take longer than normal. TPI analyzers use three filters to protect the pump and sensors. The first filter to check is the A763 mini pump protection filter. (see picture...
-
Page 14: Appendix A - General Maintenance & Function Tests 11, 12
Pump Operation Check 1. Turn the analyser on as outlined on page 5 and connect to the TPI View app. Do not connect anything to the inlet. Turn the pump on by tapping “Start Pump” prior to proceeding to step 2. - Page 15 NOTE: Perform this check after performing the Pump Operation Check outlined on the previous page. 1. Turn the analyser on as outlined on page 5 and connect to the TPI View app. Do not connect anything to the inlet. Turn the pump on by tapping “Start Pump”...
- Page 16 Thank You!!!!! & Welcome to the TPI Family We really appreciate you coming onboard, if you aren’t already, and look forward to serving you over the next few years, and beyond. For the best experience head over to www.tpieurope.com, create your account and register your product.
