Removing the Cables

Removing Cables from the Ethernet AUI Adapters

This section describes how to remove the various cables from the 15-pin AUI adapters.
Removing Cables from the AUI Fiber Port Adapter
Figure 5-12 shows how to remove cables from the 15-Pin AUI fiber port adapters.

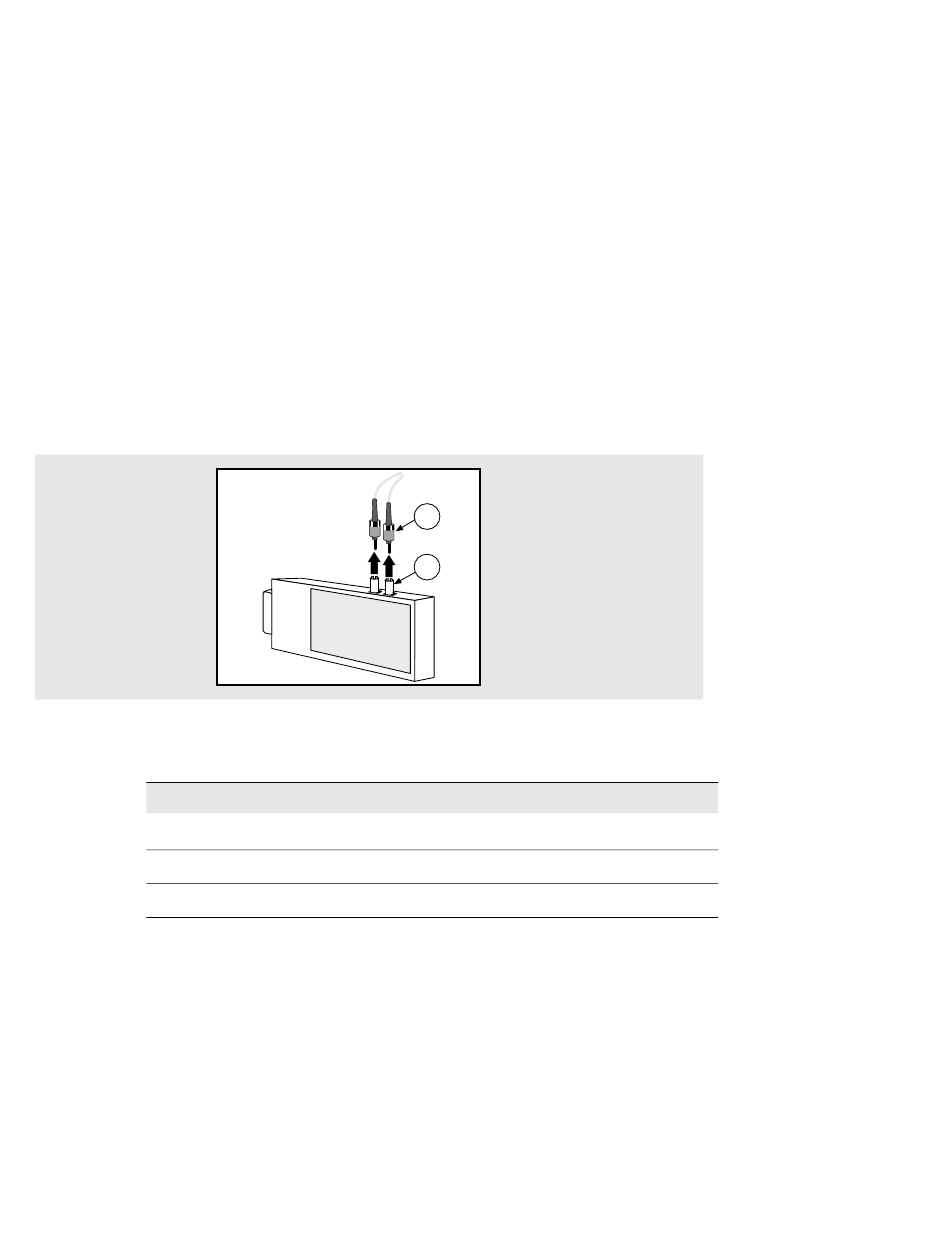

Figure 5-12: Removing AUI Fiber Port Adapter Cables
To remove the cable from an adapter, complete the following steps:
Step
1
2
3
5-14 Connecting and Removing Cables and Adapters
Action
Push in and turn the fiber connector (1) to the left to unlock it.
Pull the fiber connectors (1) from the ports on the AUI adapter (2).
Remove the other end of the cable from the repeater (Optional).
1
2
3505-31
