Cabling the AUI BNC Port Adapter
Figure 5-7 shows how to cable the 15-Pin AUI BNC port adapters.

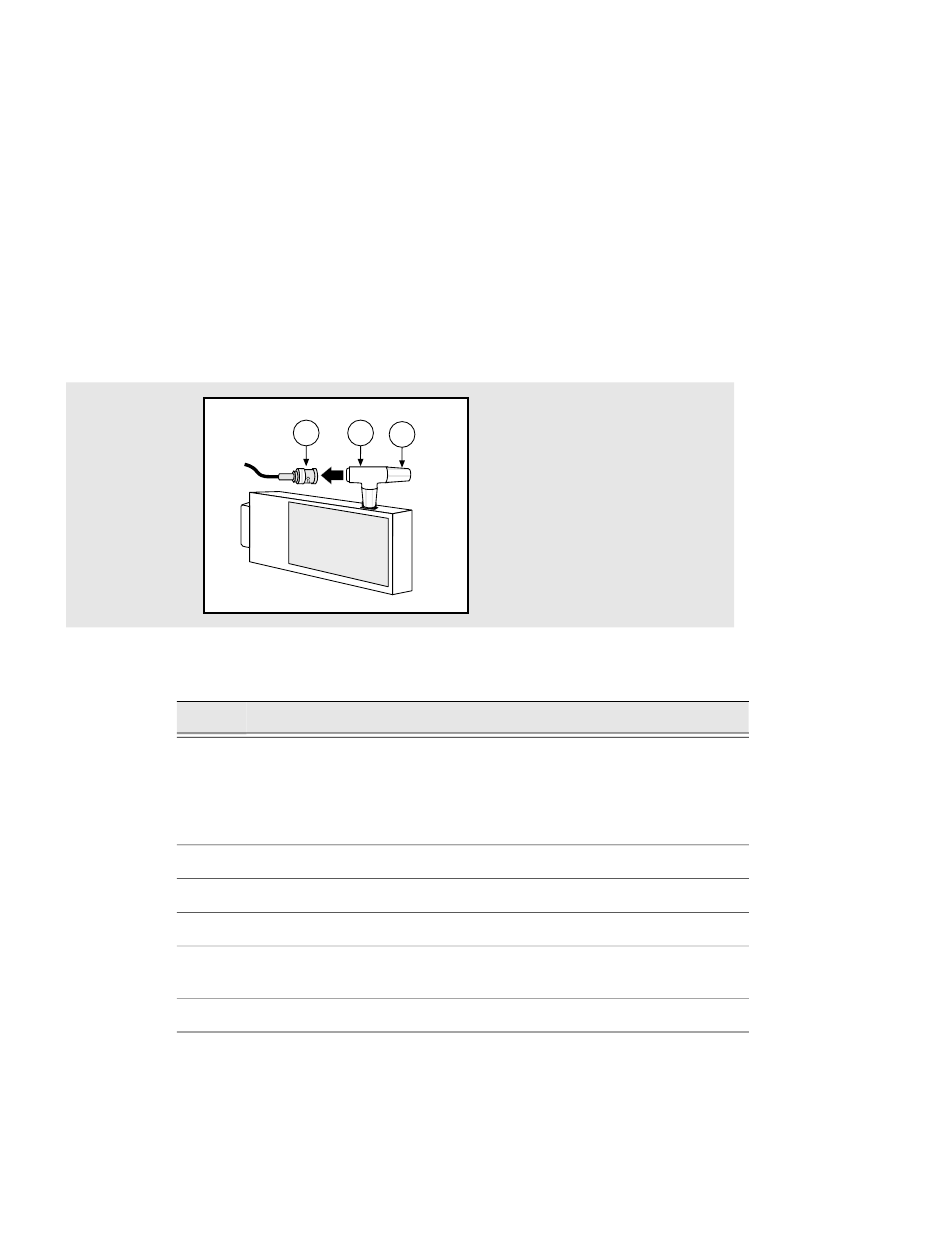

Figure 5-7: Cabling the AUI BNC Port Adapter
To cable an adapter, complete the following steps:
Step
1
2
3
4
5
6
1 2
3
Action
To install the T-connector (2):
a. Align the T-connector (2) as shown in Figure 5-7.
b. Attached the T-connector to the connector on the AUI port.
c. Turn the T-connector to the right to lock it in position.
Align the BNC connector (1) with the T-connector (2) on the AUI port.
Insert the BNC connector onto the T-connector.
Turn the BNC connector to the right to lock it in position.
Ensure that the T-connector has a terminator (3) on the opposite end of
the BNC connector.
Connect the other end of the cable to a repeater.
Connecting and Removing Cables and Adapters 5-9
Connecting Cables
