Connecting Cables

Connecting the Ethernet AUI Adapters

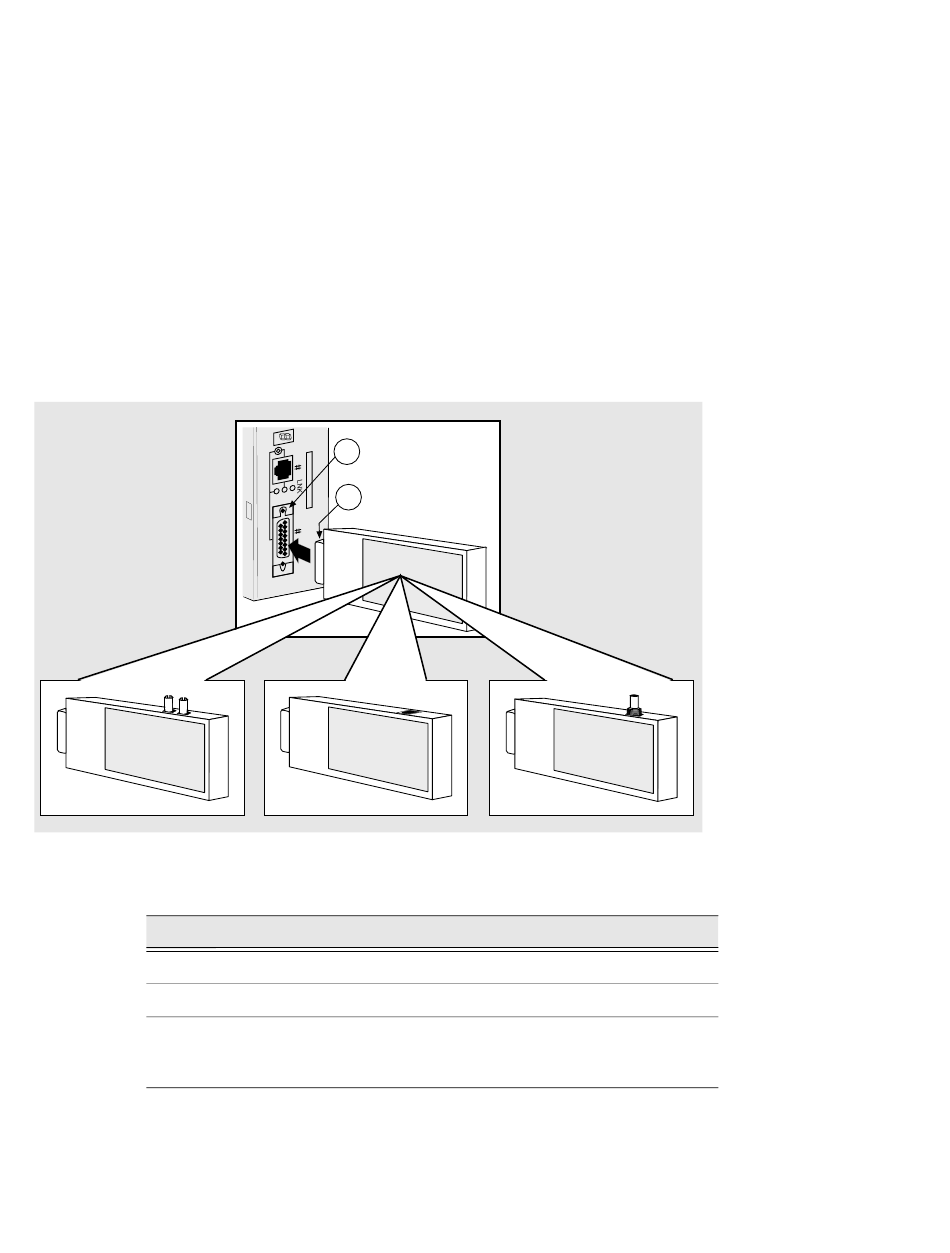

Figure 5-4 shows how to connect a 15-Pin AUI adapter to the AUI port on the
DECserver.
Figure 5-4: Connecting the AUI Adapters
To connect an adapter, complete the following steps:
Step
1
2
3
5-6 Connecting and Removing Cables and Adapters
2
1
Action
Align the AUI adapter (1) with the AUI port (2).
Insert the AUI adapter connector into the AUI port (2).
Slide the locking tab down (if server is in a vertical position or to the
right (if server is in a horizontal position) to lock the AUI adapter to the
port.
3505-26
