Socket DURASCAN D750 Manual

Bluetooth barcode scanner series 700
Hide thumbs Also See for DURASCAN D750:
Table of Contents

Advertisement

Quick Links

Download this manual
SERIES 700
DURASCAN
TM
Bluetooth Barcode Scanner
Model D750
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DURASCAN D750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket DURASCAN D750

Summary of Contents for Socket DURASCAN D750

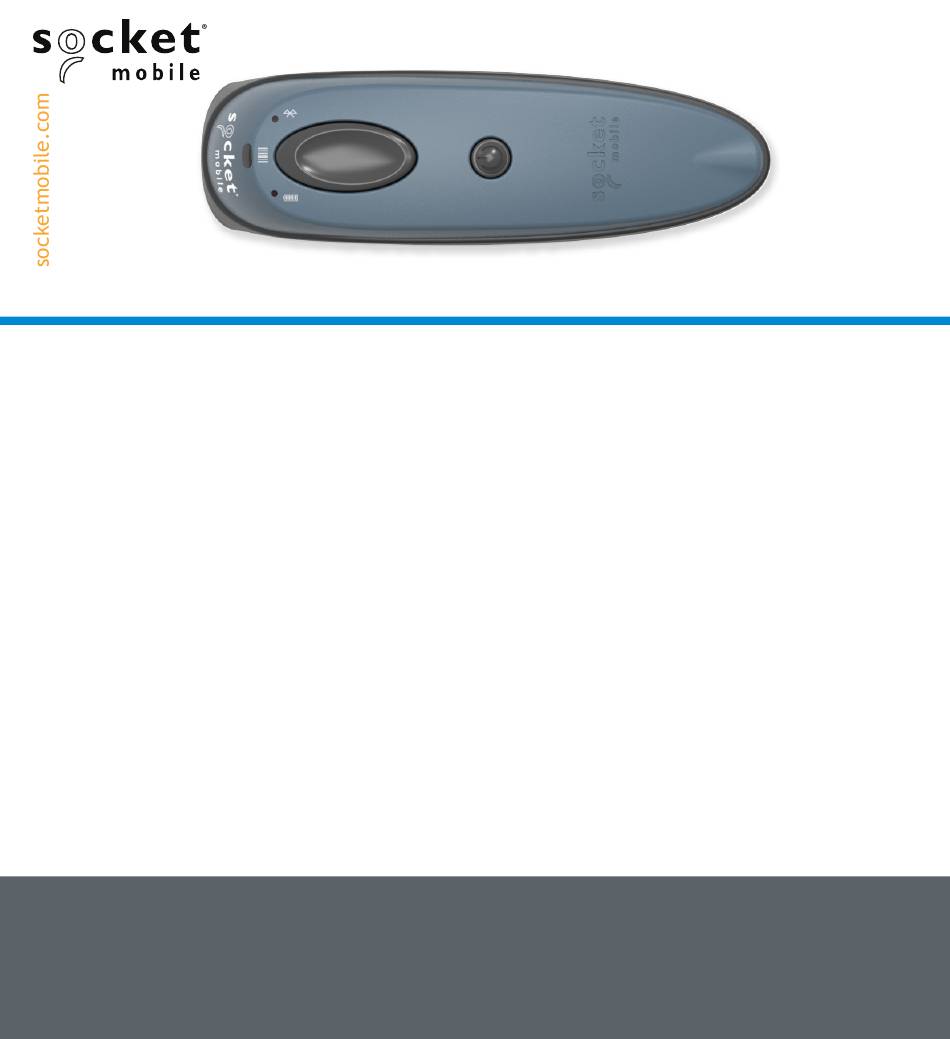

  • Page 1 SERIES 700 DURASCAN Bluetooth Barcode Scanner Model D750 www.socketmobile.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Application Mode (MFi-SPP) Setup for Apple® iOS Application Mode (SPP) • Android • Windows PC • Windows (Peripherals) Basic Mode (HID) • Android • Windows PC • Windows (Peripherals) Battery Charger & Battery Warning 40-44 Bluetooth Connection Bluetooth Connection Modes Bluetooth Unpairing Command Barcodes...
  • Page 3 TABLE OF CONTENTS Optional Charging Accessories Package Contents Powering on/off Product Information Product Specifications Safety, Compliance & Warranty 35-46 Scanning Barcodes Status Indicators...

  • Page 4: Package Contents

    SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners.

  • Page 5: Product Information

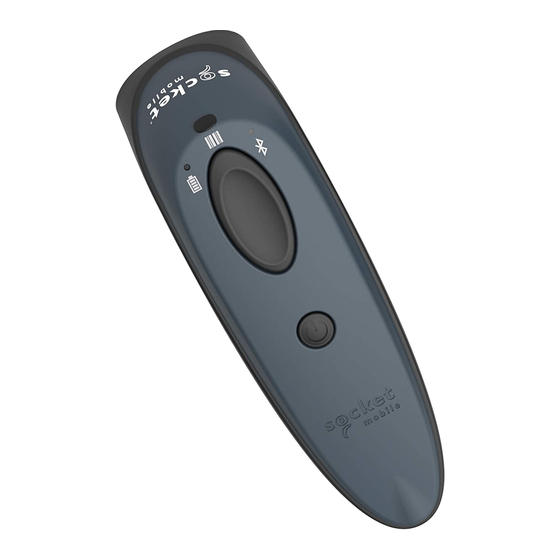

    PRODUCT INFORMATION Scanner head Green/Red LED Product label Bluetooth LED (Blue) Battery LED (Green/Yellow/Red) Trigger button Power button* Direct Current Lanyard Pins for charging cradle *Also used for keyboard Pop-up in Basic Mode (HID) only...
  • Page 6 SCANNER SETUP 1. Attach the Lanyard (optional) Detach the string loop of the tether from the lanyard. Then feed the string loop through the slot. Pull tight so the string loop is secure, reattach the string loop to the tether from the Lanyard.
  • Page 7 Battery warning: Do not remove the pre-installed battery. The DuraScan contains a rechargable lithium-ion battery. The battery may be replaced with a Socket Mobile battery replacement kit. See socketmobile.com for replacement battery. See other battery warning at pg. 39...

  • Page 8: Optional Charging Accessories

    OPTIONAL CHARGING ACCESSORIES Charging with Cradle or QX Stand is optional (available separately). Charging Cradle QX Stand Battery charger warning: Only use the dedicated charger provided for this unit. See more battery charger warnings at pg. 41...

  • Page 9: Powering On/Off

    POWERING ON/OFF Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small Press and hold down the small power button until the LED turns power button until the scanner blue and the scanner beeps twice beeps twice (high-low). (low-high).

  • Page 10: Scanning Barcodes

    SCANNING BARCODES 1D Barcode 2D Barcode Aim the scan beam straight Aim at the center. across the entire barcode. Trigger button Scanning Barcodes 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the scanner will beep, vibrate, and the LED will flash green to confirm successful scan.

  • Page 11: Application Mode (Spp)

    • Apple MFI tested and certified Apple Specific • If you have an application that supports Socket Serial Profile Mobile Scanners this is the mode you want to use *By default, the scanner is set to Basic Mode (HID).
  • Page 12 BLUETOOTH CONNECTION MODES Operating System Connection Options Bluetooth Operating Bluetooth Bluetooth Apple Systems Devices Serial (OS) Support Support Specific (MFi Mode) Android 2.1 & later Android iPod, iPhone, & Apple iOS iPad Windows Windows Mobile Mobile Windows PC Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS...

  • Page 13: Android

    Bluetooth settings 3. Make sure the device has Bluetooth “On” and scan for devices. 4. In the list of found devices, select Socket scanner [xxxxxx]. Tap Pair. 5. The scanner will connect to the Android device. 6. The scanner will beep once after it has connected and is ready to scan...

  • Page 14: Windows Pc

    BASIC MODE Apple: Connect Apple iOS Device or Mac OS Device Basic Mode (HID) In this mode the scanner works and behaves just like a keyboard. Therefore, scanner will work with Safari, Notes, and any other applications that supports an active cursor. 1.

  • Page 15: Windows (Peripherals)

    1. Use your computer’s Bluetooth Settings to connect to the Scanner. 2. Open Devices and Printers and select “Add a device”. 3. In the device list, select Socket Scanner [xxxxxx]. Click Next. 4. If a passkey is requested, enter 0000 (four zeroes). Click OK.
  • Page 16 2. Turn on Bluetooth on your PDA or PC and start a device search. Make sure it is discoverable. 3. Select Socket Scanner. If prompted for a passkey, enter 0000 (four zeroes). If prompted to select services, select Input Device.

  • Page 17: Android

    2. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 3. Tap Socket Scanner[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected” or “Paired”...
  • Page 18 12. Power on the Scanner. Make sure the Scanner is discoverable (unpaired). 13. In SocketScan 10, tap the Menu icon then select Socket EZ Pair. 14. Scan the barcode on the screen to switch or set your scanner in Application Mode (SPP). The Scanner will beep 3 times.
  • Page 19 Swipe the icon down to open the registration pages. Follow the instructions to register your Scanner. Socket Mobile highly recommends that all customers register their products, but registration is not necessary.

  • Page 20: Windows Pc

    WINDOWS PC - APPLICATION MODE Connect Windows PC in Application Mode (SPP) Note: Make sure you have administrative privileges. 1. Download the latest SocketScan 10 software from Socket Mobile’s support web page. 2. Follow the on-screen instructions to install the software.
  • Page 21 Yes. If prompted for a passkey, enter 0000 (four zeroes). 7. After the Scanner connects, it will beep once. Close Socket EZ Pair. 8. If you are connecting a scanner which is not registered, a Scanner registration icon will appear on top of the screen.

  • Page 22: Application Mode (Mfi-Spp) Setup For Apple® Ios

    3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket Scanner[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected”...
  • Page 23 APPLICATION MODE (MFI-SPP) Note: The characters in brackets are the last 6 characters of the Bluetooth Adress. The full Bluetooth address is printed on the Product label. 5. Launch your Scanner-enabled Application. The Scanner will beep once indicating that it is connected to the appropriate application. Now you are ready to scan barcodes.

  • Page 24: Bluetooth Unpairing

    BLUETOOTH UNPAIRING Note: This procedure will put the Scanner in discoverable mode. Step 1: Unpairing the Scanner: Delete the Bluetooth Pairing If the Scanner is paired with a device, unpair it before trying to connect to a different device. 1. Power on the Scanner. 2.

  • Page 25: Bluetooth Connection

    BLUETOOTH CONNECTION Automatic Reconnections Each time you power on the Scanner, it will automatically try to connect to the last device it was connected to. • Make sure the device is in range with Bluetooth On. • If using Basic Mode (HID), pressing the trigger button will force or trigger the connection.

  • Page 26: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the Scanner. Make sure the Scanner is not connected to a device before scanning a command barcode! See page 21 for unpairing instructions. For a complete set of command barcodes, download the Command Barcodes Sheet: http://www.socketmobile.com/support/downloads The web link is also provided in the below QR Code.
  • Page 27 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID-Keyboard) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class device Application Mode (SPP) Changes the Scanner to Serial...
  • Page 28 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables Scanner to beep to indicate successful scans. Beep after scanner Decodes Data OFF Disables Scanner from beeping to...
  • Page 29 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate “ON” (default) Enables scanner to vibrate to indicate successful scans. Vibrate “OFF” Disables scanner from vibrating to indicate successful scans. Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning this barcode.

  • Page 30: Status Indicators

    STATUS INDICATORS Status LED Activity Meaning Bluetooth 1 Blue blink every Bluetooth is On but not second connected 1 Blue blink every 3 Scanner is connected to seconds device Good Read Green Constant Data successfully scanned (while scanning) Battery Status Red Blinking 20% or less battery capacity (while scanning and...
  • Page 31 STATUS INDICATORS (CONTINUED) Beep Pattern Meaning Low-high tone Power On. High-low tone Power Off. 1 low beep Keyboard Pop-up Enable. 1 beep Scanner connected to device and ready to scan barcodes. 1 beep with Green Data successfully scanned. LED blink 2 beeps, same Scanner disconnected from device.
  • Page 32 STATUS INDICATORS (CONTINUED) Vibrate Meaning Vibrate Power On or data successfully scanned. Command Barcodes are available on pages 23-25 to modify the LED, beep, and vibrate settings. If you are using a Scanner-enabled Application, typically the application provides settings for LED, beep, and vibrate settings. Bluetooth Mode Sequence Time after powering on Scanner Bluetooth mode...

  • Page 33: Product Specifications

    PRODUCT SPECIFICATIONS Specifications D750 Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm) Total Mass 3.8 oz (108 g) Antimicrobial Antimicrobial additive in all external surfaces Operating Temp -4 to +122°F (-20 to + 50°C) Battery Life Standby: over 30 hours Per full charge...

  • Page 34: Helpful Resources

    Technical Support & Product Registration: http://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: http://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: http://www.socketmobile.com/support/downloads This web link is also provided in the below QR Code.

  • Page 35: Safety, Compliance & Warranty

    Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the DuraScan Barcode Scanner using the AC adapter when operating the unit outdoors, or in the rain.
  • Page 36 BLUETOOTH DEVICE UNITED STATES FCC ID: LUBD750 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 37 BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radia- tor and your body.
  • Page 38 BLUETOOTH DEVICE CANADA IC ID: 2925A-D750 This device complies with Industry Canada licenseexempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
  • Page 39 BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and Europe- an Normes (EN), as follows. Amendments to these Directivces or ENs are included: Normes (EN), as follows: Applicable Directives: Bluetooth Products: R&TTE Directive 1999/95EC, Low Voltage Directives...

  • Page 40: Battery Charger & Battery Warning

    Warning: The plug on the charger is used as a disconnection device. To fully de-energize equipment for service, disconnect the adapter from the outlet. Pluggable Equipment. The socket outlet shall be installed near the equip- ment and shall be easily accessible.
  • Page 41 BATTERY WARNING STATEMENTS This device contains a rechargeable Lithium-Ion battery. Stop charging DuraScan Barcode Scanners if charging isn’t completed within the normal specified time (approx. 6 hours). Stop charging the battery if the DuraScan Barcode Scanner case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 42 BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.
  • Page 43 LASER AND LED DEVICES Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM. LED DEVICE: The DuraScan D700 and D750 contain a LED-type scan engine. For the Class 1 LED version of this engine, the following applies: • Complies with IEC 60825-1:2001-08, and EN 60825-1:1994 + A1 + A2 •...
  • Page 44 REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 45 (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 46 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: http://www.socketmobile.com/socketcare 2016...
