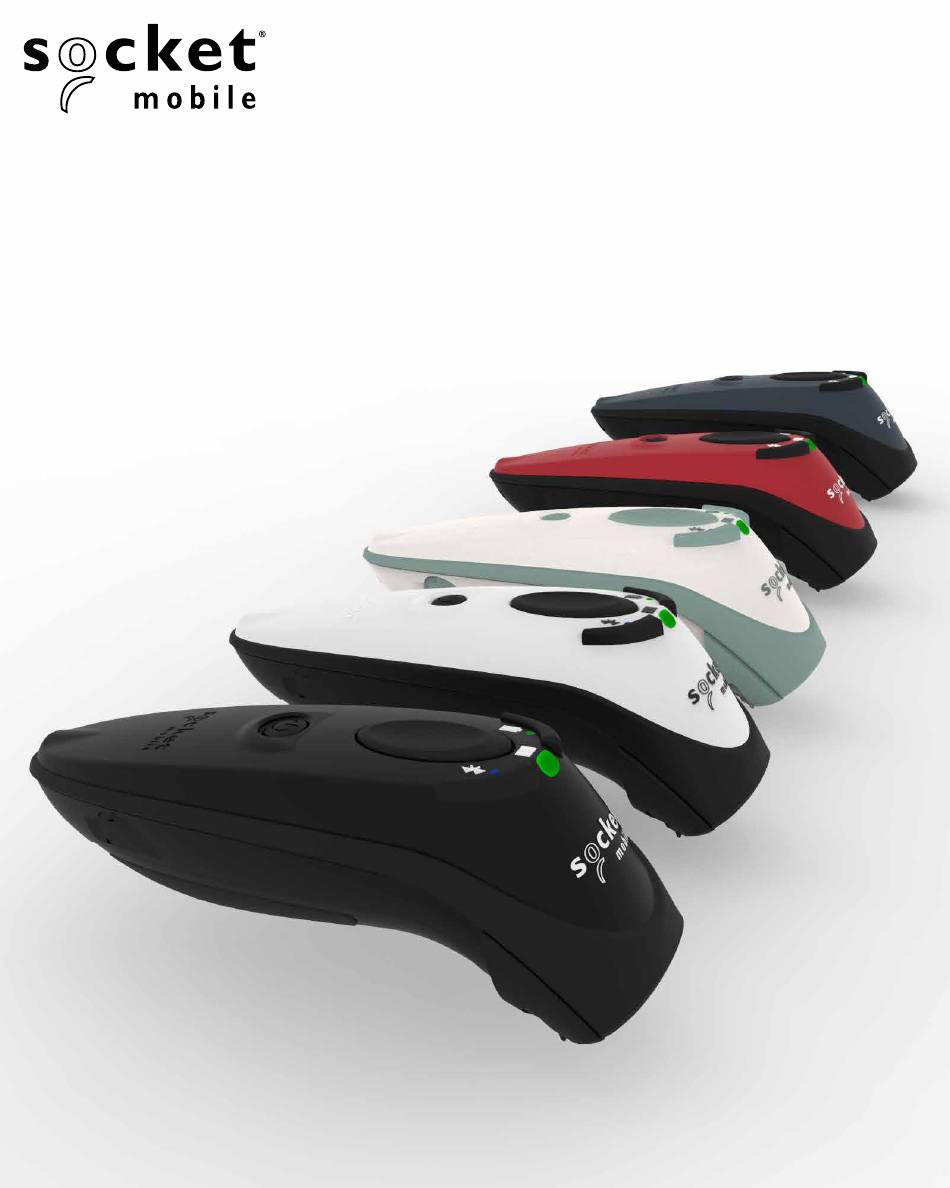

D700, D730, D740, D745, D750, D755 & D760
DuraScan® 700 Series
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DuraScan 700 Series and is the answer not in the manual?

Questions and answers

Bill
March 7, 2025

I **** getting a bracket in front of all scans with my 755 series scanner when I scan into iPad

1 comments:
Mr. Anderson
May 14, 2025

A bracket appears in front of all scans with the Socket 700 Series scanner when scanning into an iPad because the scanner is in HID-Peripheral mode instead of HID-Keyboard mode. Switching to HID-Keyboard mode resolves this issue.

This answer is automatically generated

Summary of Contents for Socket DuraScan 700 Series

  • Page 1 D700, D730, D740, D745, D750, D755 & D760 DuraScan® 700 Series User Guide...
  • Page 2: Table Of Contents

    Table of Contents Package Contents Optional Charging Accessories Product Information Attach wristrap Charge the Battery Power Adapter Powering on/off Scanning Barcodes Bluetooth Connection Modes 10-11 Bluetooth connection Roles Data Mode-For SPP mode only Bluetooth Re-Connection How to setup your scanner: Download our Companion App Can’t use Companion App? How to setup your scanner in Application Mode...
  • Page 3 Quick Programming 26-32 Status Indicators 33-36 Helpful Resources Battery Warning, Safety, Compliance, Warranty...
  • Page 4: Package Contents

    Objective-C®, Swift™, and Xcode® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket...
  • Page 5: Product Information

    Lanyard Eyelet Charging pins The DuraScan 700 Series has a protection rating of IP54 for dust and water protection. Socket Mobile’s barcode readers can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode readers can be wiped clean with a Sani-Cloth.
  • Page 6: Attach Wristrap

    attach wristrap Attach the Wrist Strap (optional) 1. Detach the string loop of the tether from the wrist strap. 2. Feed the string loop through the eyelet. 3. Pull the tether through the string loop. 4. Pull tight so the string loop is secure. 5.
  • Page 7: Charge The Battery

    Charge the Battery Rubber Flap Power Adapter To open The reader must be fully charged before first use. Please allow 8 hours uninterrupted charging for the initial battery charge. Lift the rubber flap to access the power connector. • Yellow Light = Charging •...
  • Page 8: Powering On/Off

    Powering on/off Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small Press and hold down the small power button until the Battery power button until the reader beeps light turns on and the reader twice (high-low) and all lights turn beeps twice (low-high).
  • Page 9: Scanning Barcodes

    Scanning Barcodes 1D/2D Barcode and OCR Aim the scan beam straight across the entire barcode scan button Scanning Barcodes 1. Hold the barcode reader 4-5 inches away from the barcode. Note: Distance between the reader and barcode depend on the size of the barcode.
  • Page 10: Bluetooth Connection Modes

    Bluetooth Connection Modes Operating System Connection Options Bluetooth Operating Bluetooth Bluetooth Apple Systems Devices Serial (OS) Support Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows Windows 8, 10, 11 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac...
  • Page 11 Use this mode with an of data Android app designed for • Mode recommended for applications Socket Mobile barcode supporting Socket Mobile readers readers. • NO software installation needed Basic Keyboard Mode • Connects to most devices • Good for barcodes containing small amounts...
  • Page 12: Bluetooth Connection Roles

    Bluetooth connection roles Advanced users only. Basic Mode (HID) Keyboard Changes a reader in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices. Basic Mode (HID) Peripheral Changes a reader in HID-Keyboard mode to HID-Peripheral mode. For some MS Windows or Android mobile devices.
  • Page 13: Data Mode-For Spp Mode Only

    Data Mode-For spp mode only Advanced users only. Packet Mode (default) Configures the reader to transmit decoded data in packet format. Raw Mode - Android and Windows only Configures the reader to transmit decoded data in raw (unpacketed) format.
  • Page 14: Bluetooth Reconnection

    Bluetooth ReConnection For all Bluetooth Connection Modes. Important! After scanning this command barcode, power off and power on the reader to make sure it is configured properly. Enable Automatic Reconnection from reader (default) Configure the reader to automatically initiate a connection to the last paired computer/device after the reader is powered on.
  • Page 15 App Mode, so it can be controlled by other apps, such as Shopify and Square, to name a couple of the 1000+ apps available. The Socket Mobile Companion app is designed to ensure you get the maximum utility benefits from your Socket Mobile devices.
  • Page 16: Apple

    3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth devices search will begin. 4. Tap Socket D700[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the reader blue LED will stop blinking and turn solid blue.
  • Page 17 3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket D700[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.
  • Page 18 Open. 5. Click the “Start” button and follow the instructions in the wizard. 6. Once complete, you will be ready to scan using Socket’s keyboard emulation (this should be turned off if you have an application that supports the CaptureSDK) Note: For the D730 laser barcode reader.
  • Page 19: Apple

    set up-Basic Mode iMAC In this mode the reader functions and communicates similar to a keyboard. Therefore, reader will work with Safari, Notes, and any other application that support an active cursor. 1. Power on the reader. Make sure the reader is discoverable (unpaired). The Blue light blinks fast.
  • Page 20: Android

    Setup - Basic Mode Android In this mode the reader functions and communicates similar to a keyboard. Therefore, reader will work with Notes, and any other application that supports an active cursor. 1. Power on the reader. Make sure the reader is discoverable (unpaired) and the blue light blinks fast.
  • Page 21: Windows

    Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 2. Tap Socket D700[xxxxxx] in the list of Devices found. After a few seconds the status will change to “Connected” or “Paired” and the reader blue light will stop blinking and turn solid blue.
  • Page 22: Pairing Reset

    pairing reset This procedure will put the reader in discoverable mode. If the reader is paired with a device, unpair it before trying to connect to a different device. Step 1: Remove or forget the reader from the Bluetooth list on the host device.
  • Page 23: Factory Reset

    Factory Reset Configures the reader to factory defaults. The reader powers off after scanning this barcode. Or, follow the Factory Reset button sequence: 1. Power ON the reader. 2. Press and hold the scan button. Quickly press and release the power button 3.
  • Page 24: Restore Method

    Restore Method NOTE: If your reader remains in an unresponsive state after following the Factory Reset, use the Restore Method. The Restore Method should be the last attempt used to revive an unresponsive reader. It will reinitialize the core hardware. 1.
  • Page 25: Battery Replacement

    Battery Replacement Step 1: Remove Battery Door Use screw driver to loosen screw and remove battery door. Step 2: Remove Battery Use a flat head screw driver and place in the top right corner to gently push the battery out. Then, pull the connector to remove. Step 3: Insert New Battery Plug the connector on the new battery.
  • Page 26 Quick Programming For D700 barcode readers. Scan command barcode(s) to quickly configure the barcode reader. Important! Make sure the barcode reader is not connected to a host computer or device before scanning a command barcode! For custom prefix and suffix, contact dataediting@socketmobile.com Prefix/Suffix Suffix- Carriage Return Configures the barcode...
  • Page 27 Quick Programming For D730/D740/D745/D750/D755/D760 barcode readers. Scan command barcode(s) to quickly configure the barcode reader. Important! Make sure the barcode reader is not connected to a host computer or device before scanning a command barcode! For custom prefix and suffix, contact dataediting@socketmobile.com (Note: For the D730 laser barcode reader.
  • Page 28 Quick Programming Scan one of the barcodes to enable/disable vibrate and beep settings. Vibrate/Beep Modes Vibrate ON (default) Enables barcode reader to vibrate to indicate successful scans. Vibrate OFF Disables barcode reader from vibrating to indicate successful scans. Beep ON (default) Enables barcode reader to beep to indicate successful scans.
  • Page 29 Quick Programming Scan one of the barcodes to reconfigure the reader to remain powered on for a longer time. Active Modes 2 Hours (default) Barcode reader powers off in 2 hours when idle/ inactive while connected and 5 minutes when disconnected Continuous Power for 4 Hours...
  • Page 30 Quick Programming Scan one of the barcodes to configure the reader to automatically scan barcodes. Command barcode is for model D740, D745, D750, D755 and D760 only. Presentation modes Mobile Mode (default) Reverts back to manual scan mode. #FNB 41FBA50000# Auto Mode (recommended) Configures the sccanner to switch to...
  • Page 31 Quick Programming These barcodes are to configure the reader for different languages using Microsoft Windows keyboard layout. Scan only when the reader is in Basic Mode (HID profile). HID Keyboard Language Settings English (default) English UK French German Italian...
  • Page 32 Quick Programming HID Keyboard Language Settings Japanese Polish Spanish Swedish ANSI Emulation *Can be slower on Windows System...
  • Page 33 Status Indicators Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow Charging the battery Solid Green Battery is 100% full Battery Status When not LED Activity Meaning connected to power supply Solid Green Battery capacity from 100% to 25% Solid Yellow Battery capacity from 25% to 10% Warning...
  • Page 34 Status Indicators Bluetooth LED Activity Meaning Quick Blinking Blue Discoverable - waiting for a host (2 blinks every Bluetooth connection. second) Reader is attempting to connect Bluetooth Slow Blinking Blue to the last known host device. (1 blink every second) After 1 minute of blinking, reader will stop searching.
  • Page 35 Status Indicators Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone Power Supply detected and reader started charging 1 Low Beep Reader has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only) 1 Beep Reader connected to device and is ready to scan barcodes...
  • Page 36 Status Indicators Vibrate Meaning Vibrate Data successfully scanned. Command Barcodes are available on page to modify beep and vibrate settings. If you are using a reader-enabled application, typically the application provides settings for beep, and vibrate settings. Configuration Settings Time after powering on Reader Bluetooth mode 0-5 minutes Discoverable and connectable...
  • Page 37 Technical Support & Product Registration: https://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: https://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Programming Guide (Advanced Reader Configurations) can be download at: https://www.socketmobile.com/support/downloads...
  • Page 38 Socket Mobile technical support at https://support.socketmobile.com/ Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the DuraScan barcode reader using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 39 Bluetooth Device United States FCCID: T9J-RN42 FCC ID: LUBD700 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 40 Bluetooth Device United States FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 1.5 centimeters (15mm) between the radiator and your body.
  • Page 41 Bluetooth Device Canada IC ID: 2925A-D700 IC ID: 6514A-RN-42 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 42 Bluetooth Device Europe CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Low Voltage Directives: 2014/35/EU RED Directive: 2014/53/EU...
  • Page 43 Bluetooth Device Japan Telec Marking Compliance R 201-125709 R 211-161214 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
  • Page 44 Battery Warning Statements This device contains a rechargeable Lithium-Ion battery. Stop charging DuraScan barcode readers if charging is not completed within 24 hours. Discontinue use immediately and contact support@socketmobile.com Stop charging the battery if the DuraScan barcode reader case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 45 Battery Warning Statements • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.
  • Page 46 Laser and LED Devices Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM. LED DEVICE: The DuraScan D700, D740, D745, D750, D755 and D760 contain a LED-type scan engine. For the Class 1 LED version of this engine, the following applies: •...
  • Page 47 Regulatory Compliance CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 48 Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 49 Extended Warranty SocketCare SocketCare Extended Warranty Coverage Purchase SocketCare within 60 days from the date of purchase of the reader. Product Warranty: The barcode reader’s warranty period is one year from the date of purchase. Consumables such as batteries and charging cables have a limited warranty of 90 days.
