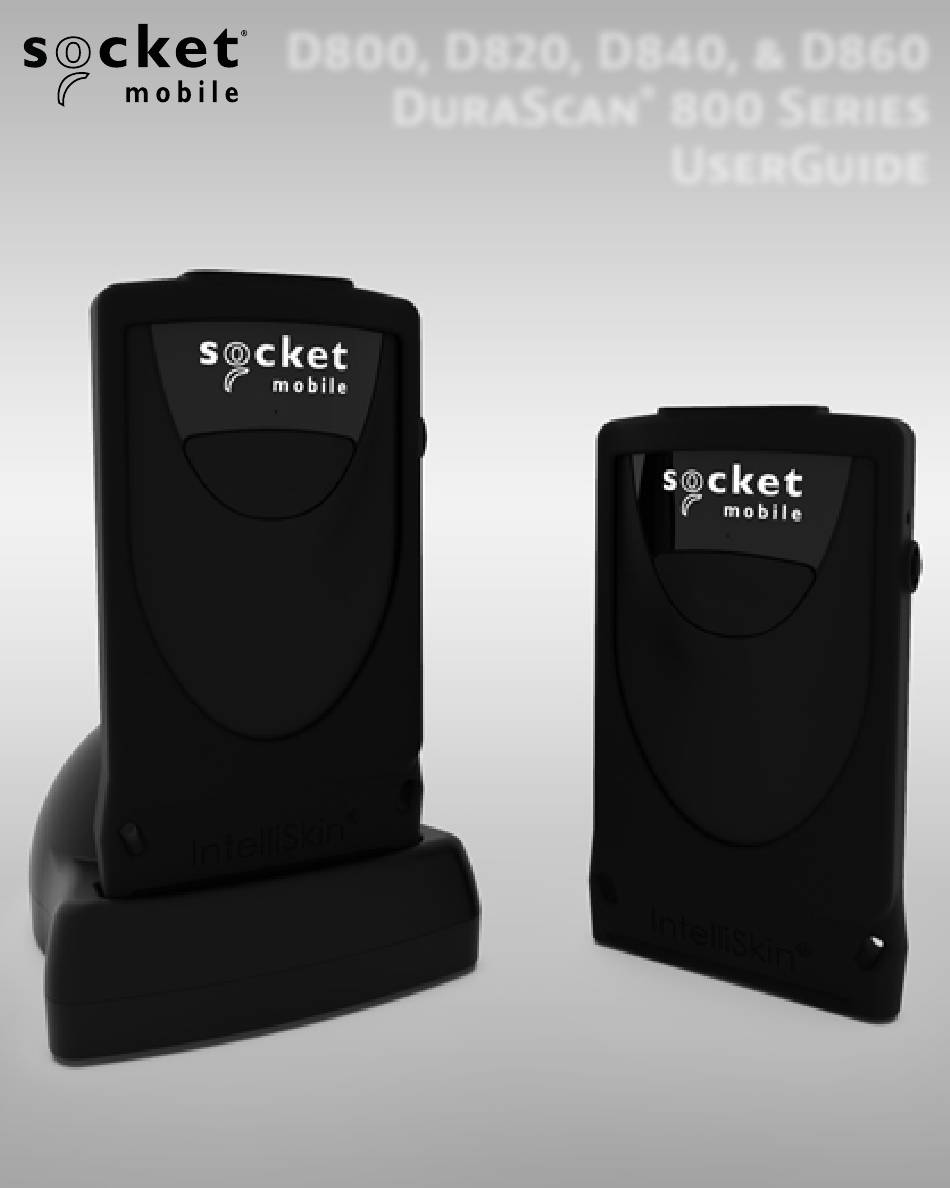

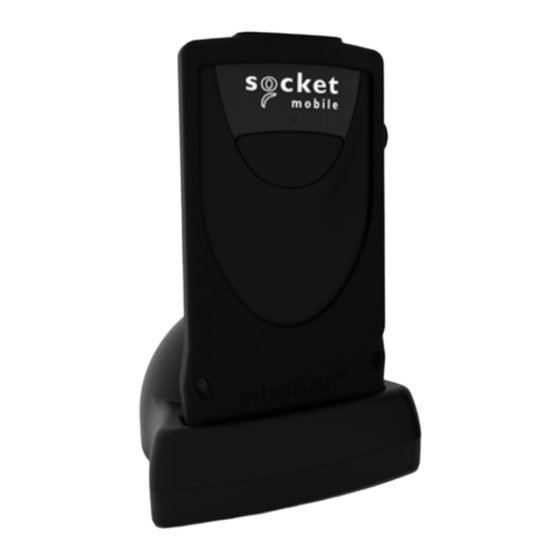

D800, D820, D840, & D860
DuraScan
800 Series
®
UserGuide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DuraScan D820 and is the answer not in the manual?

Questions and answers

Related Manuals for Socket DuraScan D820

Summary of Contents for Socket DuraScan D820

  • Page 1 D800, D820, D840, & D860 DuraScan 800 Series ® UserGuide...

  • Page 2: Table Of Contents

    Table of Contents Package Contents Optional Charging Accessories Product Information Charge the Battery Scanning Barcodes Bluetooth Connection Modes How to setup your scanner: Download our Companion App Can’t use Companion App? How to setup your scanner in Basic Mode Basic Mode How to setup your scanner in Application Mode Apple®...

  • Page 3: Package Contents

    Objective-C®, Swift™, and Xcode® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket...

  • Page 4: Product Information

    Wrist Strap Hook Wrist Strap Hook Charging Pins Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth. Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged) DO NOT USE BLEACH FOR CLEANING (scanner’s material property may be...

  • Page 5: Charge The Battery

    Charge the Battery 1. Insert scanner into Charging Dock, 6 Bay Charger or Charging Adapter. • Bundles available for Charging Dock and 6 Bay Charger. 2. Insert USB or plug into wall port. 3. The scanner will beep twice indicating adequate power is being supplied to the unit.

  • Page 6: Scanning Barcodes

    Scanning Barcodes After connecting the scanner to your device, open an application. Place the cursor where you want to enter the scanned data. 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the scan button. By default, the scanner will beep, vibrate, and the side LED will flash green to confirm successful scan.

  • Page 7: Bluetooth Connection Modes

    Use this mode with an of data Android app designed for 3. Mode recommended for applications Socket Mobile barcode supporting Socket Mobile readers readers. • NO software installation needed Basic Keyboard Mode • Connects to most devices • Good for barcodes containing small amounts...
  • Page 8 Bluetooth Connection Modes Operating System Connection Options Bluetooth Operating Apple Bluetooth HID Bluetooth SPP Systems Devices Serial Support Support (OS) Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows Windows 8, 10, 11 Mac OS X 10.4 to 10.X Mac OS Mac Books,...

  • Page 9: Download Our Companion App

    App Mode, so it can be controlled by other apps, such as Shopify and Square, to name a couple of the 1000+ apps available. The Socket Mobile Companion app is designed to ensure you get the maximum utility benefits from your Socket Mobile devices.

  • Page 10: Basic Mode

    Basic Mode Connect Device in Basic Mode In this mode the scanner functions and communicates similar to a keyboard. Therefore, the scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired and Bluetooth LED blinking).

  • Page 11: Apple

    3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket D8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.

  • Page 12: Android

    3. Turn on Bluetooth on your device. Go to Settings > Bluetooth. A Bluetooth devices search will begin. 4. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.

  • Page 13: Windows

    Application Mode (Windows) Connect Windows (option 2) in App Mode Note: Make sure you have administrative privileges. 1. Download the latest Socket Mobile CaptureSDK software from Socket Mobile’s support web page. 2. Follow the on-screen instructions to install the software.

  • Page 14: Bluetooth Unpairing

    Bluetooth Unpairing Note: This procedure will put the scanner in discoverable mode. Step 1: Unpairing the scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b.

  • Page 15: Factory Reset

    Factory Reset Factory Reset will restore the scanner to factory default settings. Scan this barcode to reset your scanner: If your scanner cannot scan the factory reset barcode, then follow the button sequence: Power ON the scanner. Power Button Scan Button 2.

  • Page 16: Restore Method

    Restore Method NOTE: If your scanner remains in an unresponsive state after following the Factory Reset, use the Restore Method as a last resort. The Restore Method should be the last attempt used to revive an unresponsive scanner. It will reinitialize the core hardware. Make sure your scanner is OFF.

  • Page 17: Status Indicators

    Status Indicators Top LED LED Activity Meaning Bluetooth Quick Blinking Blue Discoverable - waiting for a (2 blinks every second) host Bluetooth connection. Scanner is attempting to connect to the last known Slow Blinking Blue host device. After 1 minute of (1 blink every second) blinking, scanner will stop searching.
  • Page 18 Status Indicators Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off Power Supply detected and scanner started High-High Tone charging Scanner has toggled on-screen keyboard or 1 Low Beep keyboard toggle feature is enabled (iOS devices only) Scanner connected to device and is ready to 1 Beep scan barcodes...
  • Page 19 Status Indicators Vibrate Meaning Vibrate Data successfully scanned Command Barcodes are available on pages 37-42 to modify the LED, beep, and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate settings. Configuration Settings Time after powering Bluetooth mode...

  • Page 20: Quick Programming

    Quick Programming Scan command barcode(s) to quickly configure the Scanner. Make sure the scanner is not connected to a device before scanning a command barcode! See unpairing instructions. For a complete set of command barcodes, download the Command Barcodes Sheet: https://socketmobile.com/support/download Charging Stand Modes Auto Mode...
  • Page 21 Quick Programming Important! Make sure the scanner is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a #FNB00F40001# Keyboard class device App Mode (MFi-SPP) for Apple iOS devices...
  • Page 22 Quick Programming Always Active Mode For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning the scanner on again and reconnecting to your host device. Scan one of the barcodes below and reconfigure the scanner to remain on longer.
  • Page 23 Quick Programming Return Scanner to Default Setting Turns the scanner off when it is not in use – 3 to 5 minutes after #FNB012100780005# being disconnected from host device.
  • Page 24 Quick Programming Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables scanner to beep to indicate successful scans. #FNB0119E000100030078004B# Beep after scanner Decodes Data OFF Disables scanner from beeping to indicate...
  • Page 25 Quick Programming Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. #FNB01310001000100FA0000# Vibrate OFF Disables scanner from vibrating to indicate #FNB013100010000# successful scans. Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning this #FNB00F0# barcode.

  • Page 26: Helpful Resources

    Technical Support & Product Registration: support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: socketmobile.com/support/downloads...

  • Page 27: Battery Warning, Safety, Compliance, Warranty

    Socket Mobile technical support at https://support.socketmobile.com/ Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the scanner using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 28 Bluetooth Device United States FCC ID: LUBMA41 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 29 Bluetooth Device United States FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device meets the FCC requirements for RF exposure in public or uncontrolled environments. This device complies with Part 15 of the FCC Rules.
  • Page 30 Bluetooth Device Canada IC ID: 2529A-MA41S8 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 31 Bluetooth Device Europe CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES Low Voltage Directives: 2014/35/EU...
  • Page 32 Bluetooth Device JAPAN Telec Marking Compliance R 201-125799 R 211-131101 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
  • Page 33 Battery Warning Statements This device contains a rechargeable Lithium Ion battery. Stop charging scanners if charging isn’t completed within the normal specified time (approx. 8 hours). Stop charging the battery if the scanner case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 34 Battery Warning Statements • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and email support@socketmobile.com.
  • Page 35 LED Devices Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM. LED DEVICE: The DuraScan D800, D840, and D860 contain a LED-type scan engine. For the LED version of this engine, the following applies: • Complies with EN/IEC 62471 (Exempt Group) •...
  • Page 36 Regulatory Compliance CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 37 Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 38 Extended Warranty SocketCare SocketCare Extended Warranty Coverage Purchase SocketCare within 60 days from the date of purchase of the reader. Product Warranty: The barcode reader’s warranty period is one year from the date of purchase. Consumables such as batteries and charging cables have a limited warranty of 90 days.
