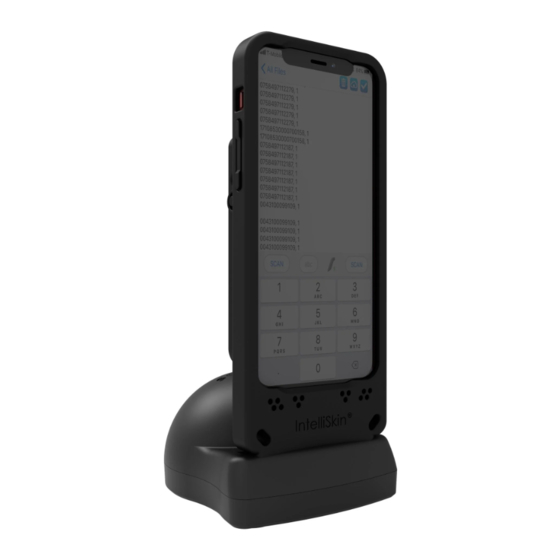

Socket DuraSled DS800 Series User Manual

Scanning sled, bluetooth wireless technology cordless barcode scanner
Hide thumbs Also See for DuraSled DS800 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
DURASLED
DS800, DS840, & DS860 SERIES USERGUIDE
™
SCANNING SLED
Bluetooth
®
wireless technology
Cordless Barcode Scanner
socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DuraSled DS800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Socket DuraSled DS800 Series

Summary of Contents for Socket DuraSled DS800 Series

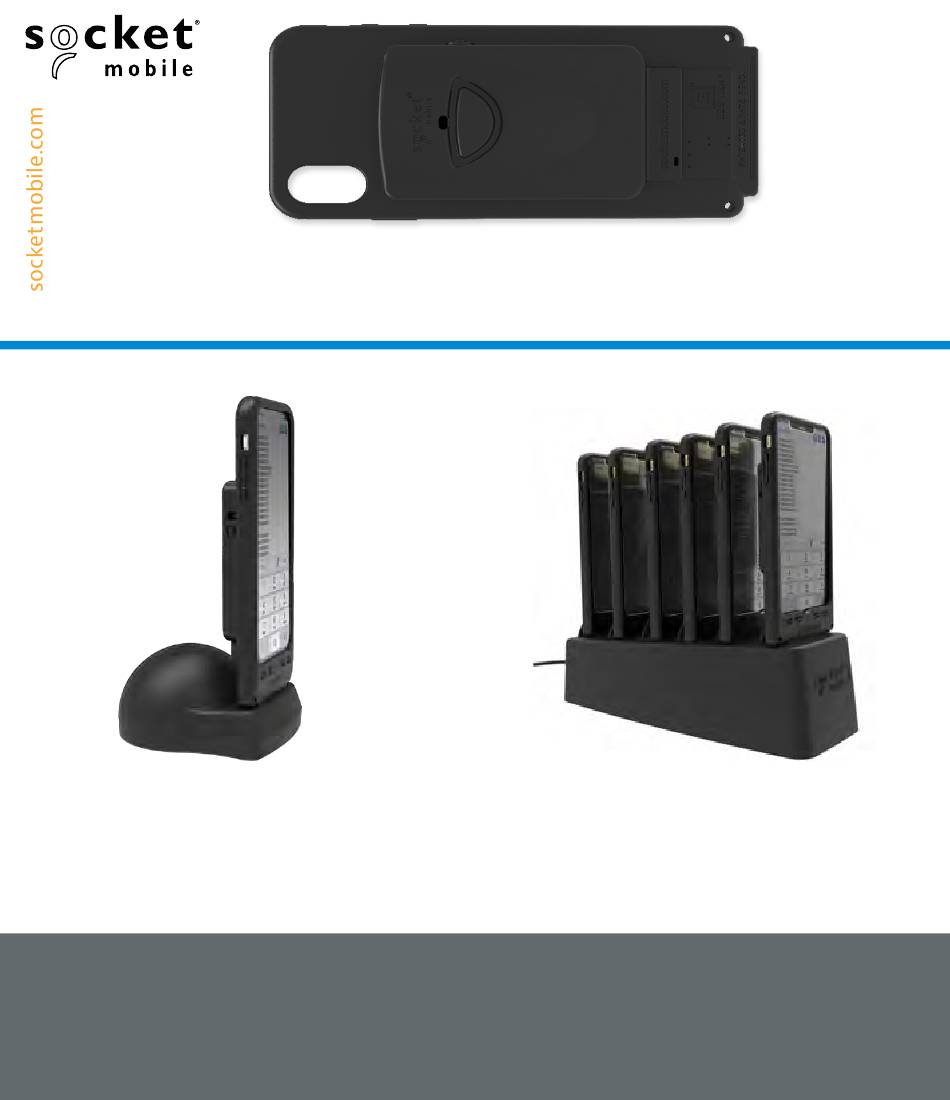

  • Page 1 DURASLED DS800, DS840, & DS860 SERIES USERGUIDE ™ SCANNING SLED Bluetooth ® wireless technology Cordless Barcode Scanner socketmobile.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents Product Information Charge the Battery Optional Charging Accessories Scanning Barcodes Bluetooth Connection Modes How to setup your scanner: Download our Companion App for Apple and Android Device ® Can’t use Companion App? How to setup your scanner in Basic Mode •...

  • Page 3: Package Contents

    Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 4: Product Information

    Wrist Strap Hook Charging Pins Wrist Strap Hook Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth. Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged) DO NOT USE BLEACH FOR CLEANING (scanner’s material property...

  • Page 5: Charge The Battery

    CHARGE THE BATTERY 1. Insert scanner into Charging Dock, 6 Bay Charger or Charging Adapter. • Bundles available for Charging Dock and 6 Bay Charger. 2. Insert USB or plug into wall port. 3. The scanner will beep twice indicating adequate power is being supplied to the unit.

  • Page 6: Scanning Barcodes

    SCANNING BARCODES After connecting the scanner to your device, open an application. Place the cursor where you want to enter the scanned data. 1. Hold the scanner a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the scanner will beep, vibrate, and the side LED will flash green to confirm successful scan.

  • Page 7: Bluetooth Connection Modes

    Mode (SPP) communications for barcodes containing lots of data Serial Port Profile • If you have an application that supports Socket Mobile Scanners this is the mode recommended For iOS Devices Application • Must use with an App developed to work...

  • Page 8: Apple

    BLUETOOTH CONNECTION MODES Operating System Connection Options Bluetooth Blue- Blue- Apple Operating tooth tooth Serial Systems Devices Specific (OS) Support Support (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac...
  • Page 9 To assist in scanner setup and configuration, download our new Companion App for free! Socket Mobile Companion App will help you configure and check the status of your Socket Mobile Barcode scanners. • Easy to follow instructions for pairing scan- ners in Application Mode •...
  • Page 10 BASIC MODE Connect Device in Basic Mode In this mode the scanner functions and communicates similar to a keyboard. Therefore, the scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired and Bluetooth LED blinking).
  • Page 11 APPLICATION MODE Connect Apple iOS device in Application Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner. If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.
  • Page 12 APPLICATION MODE Tap Socket S8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue. Note: The characters in brackets are the last 6 characters of the Bluetooth Address.

  • Page 13: Windows (Option 1) Or Android

    Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.
  • Page 14 5. Launch SocketScanScan 10 and click on the SocketScanScan 10 icon in the task tray. In the pop-up menu, click Socket EZ Pair. 6. Scan the barcode that appears on the screen. 7. Open the Bluetooth settings, add and pair the scanner manually.

  • Page 15: Bluetooth Unpairing

    BLUETOOTH UNPAIRING Note: This procedure will put the scanner in discoverable mode. Step 1: Unpairing the scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b.

  • Page 16: Factory Reset

    FACTORY RESET Factory Reset will restore the scanner to Factory Default settings (configured as shipped). If your scanner cannot scan the Factory Default barcode below, then Follow the Factory Reset (button) sequence: Scan this barcode Or follow the steps below to manually reset the scanner: Power Button Turn ON the scanner.

  • Page 17: Restore Method

    RESTORE METHOD NOTE: If your scanner remains in an unresponsive state after fol- lowing the Factory Reset, use the Restore Method as a last resort. The Restore Method should be the last attempt used to revive an unresponsive scanner. It will reinitialize the core hardware. Make sure your scanner is OFF.

  • Page 18: Status Indicators

    STATUS INDICATORS Top LED LED Activity Meaning Bluetooth Quick Blinking Discoverable - waiting Blue for a host Bluetooth (2 blinks every connection. second) Scanner is attempting Slow Blinking to connect to the last Blue known host device. (1 blink every After 1 minute of blink- second) ing, scanner will stop...
  • Page 19 STATUS INDICATORS Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off Power Supply detected and scanner started High-High Tone charging Scanner has toggled on-screen keyboard 1 Low Beep or keyboard toggle feature is enabled (iOS devices only) Scanner connected to device and is ready to 1 Beep scan barcodes...
  • Page 20 SCANNER SPECIFICATIONS Vibrate Meaning Vibrate Data successfully scanned Command Barcodes are available on pages 37-42 to modify the LED, beep, and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate settings.
  • Page 21 SCANNER SPECIFICATIONS Specifications DS800 DS840/DS860 Dimensions 4.2 x .66 x 2.25 in. (106.7 x 16.8 x 57.2 mm) (L x W x H) Total Mass 2.52 oz (71.5 g) Antimicrobial Antimicrobial additive in external surfaces Battery Lithium ion rechargeable battery Charge Time 8 Hours Battery Life -...

  • Page 22: Product Specifications

    PRODUCT SPECIFICATIONS Specifica- DS800 DS840/DS860 tions Default CODE 39, CODE 128, DS840/DS860 Symbologies EAN 8, EAN 13, GS1 1D Symbologies: Cod- DATABAR, GS1 DATABAR abar, Code 39, Code EXPANDED STACKED, 93, Code 128, EAN-13/ GS1 DATABAR JAN, EAN-8/JAN, GS1 EXTENDED, GS1 Databar, GS1 Databar DATABAR LIMITED, IN- Expanded, GS1 Databar...
  • Page 23 PRODUCT SPECIFICATIONS Supported BOOKLAND EAN, Cod- DS840/DS860 Symbologies abar, CODE 39, CODE 1D Symbologies: Book- 39 ASCII (EXTENDED), land EAN, Chinese 2 CODE 39 Trioptic, CODE of 5, Codabar, Code 11, 93, CODE 128, DISCRETE Code 39, Code 93, Code 2 OF 5, EAN 8, EAN 13, 128, Composite CC-A/B, EAN 128, EAN 128 +...
  • Page 24 PRODUCT SPECIFICATIONS Supported Language English, English UK, French, German, Italian, Settings Japanese, Polish, Spanish, Swedish & ANSI Emula- [in Basic tion Mode (HID)] Systems/ Battery USB Type 5V 1A Charging Requirement Ambient Light From 0 to 100 000 lux Operating +32 to +122°F (0 to +50°C) Temperature Storage...

  • Page 25: Helpful Resources

    HELPFUL RESOURCES Technical Support & Product Registration: support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: socketmobile.com/developers The Command Barcodes (Advanced Scanner Configurations) can be download at: socketmobile.com/support/downloads...
  • Page 26 Socket Mobile technical support at https://support.socketmobile.com/ Changes or modifications of this product, not expressly approved Socket Mobile may void the user’s authority to use the equipment. Do not charge the scanner using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 27 BLUETOOTH DEVICE UNITED STATES FCC ID: LUBMA41 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 28 BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device meets the FCC requirements for RF exposure in public or uncontrolled environ- ments. This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including...
  • Page 29 BLUETOOTH DEVICE CANADA IC ID: 2529A-MA41S8 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause un- desired operation of the device.
  • Page 30 BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES Low Voltage Directives: 2014/35/EU RED Directive: 2014/53/EU...
  • Page 31 BLUETOOTH DEVICE JAPAN Telec Marking Compliance R 201-125799 R 211-131101 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
  • Page 32 BATTERY WARNING STATEMENTS This device contains a rechargeable Lithium Ion battery. Stop charging scanners if charging isn’t completed within the normal specified time (approx. 8 hours). Stop charging the battery if the scanner case becomes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 33 BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and email support@socketmobile.com.
  • Page 34 LED DEVICES Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM. LED DEVICE: The DuraSled DS800, DS840, and DS860 contain a LED-type scan engine. For the LED version of this engine, the following applies: • Complies with EN/IEC 62471 (Exempt Group) •...
  • Page 35 REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 36 (1) year from the date of purchase. Product must be pur- chased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.

  • Page 37: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the Scanner. Make sure the scanner is not connected to a device before scanning a command barcode! See page for unpairing instructions. For a complete set of command barcodes, download the Command Barcodes Sheet: https://socketmobile.com/support/download Charging Stand Modes...
  • Page 38 COMMAND BARCODES (CONTINUED) Important! Make sure the scanner is not connected to a host computer Bluetooth Connection Modes or device before scanning a command barcode! Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class #FNB00F40001# device Application Mode (MFi-SPP)
  • Page 39 COMMAND BARCODES (CONTINUED) Always Active Mode For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning the scanner on again and reconnecting to your host device. Scan one of the barcodes below and reconfigure the scanner to remain on longer.
  • Page 40 COMMAND BARCODES (CONTINUED) Continuous Power for 4 hours* Scan Barcode to configure the scanner to remain on for 4 hours. #FNB012100F000F0# *These settings drain the battery faster. It is assumed you will charge the scanner within a 24-hour period or overnight. If you don’t, the scanner’s battery will drain completely.
  • Page 41 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables scanner to beep to indicate suc- #FNB0119E000100030078004B# cessful scans. Beep after scanner Decodes Data OFF Disables scanner...
  • Page 42 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. #FNB01310001000100FA0000# Vibrate OFF Disables scanner from vibrating to indicate successful scans. #FNB013100010000# Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning #FNB00F0# this barcode.
  • Page 43 EXTEND YOUR WARRANTY Extend your scanner’s standard one-year limited warranty coverage up to five years from date of purchase. Additional service features are available to further enhance your extended warranty coverage. Extend Your Standard Warranty Coverage: SocketCare • 3-Year Extended Coverage •...
