Use these instructions to learn:
How to build an effects pedal for treble boost.
The Penetrator is a treble boost pedal kit with enough to gain to cut straight through a mix. Adjust the level
knob to vary the output so there's no mistaking when you kick this pedal in. Great for solos or when you
need your guitar front and center, this pedal adds glistening harmonics to your sound.
Warning: This circuit was designed for use with a 9 VDC power supply only.

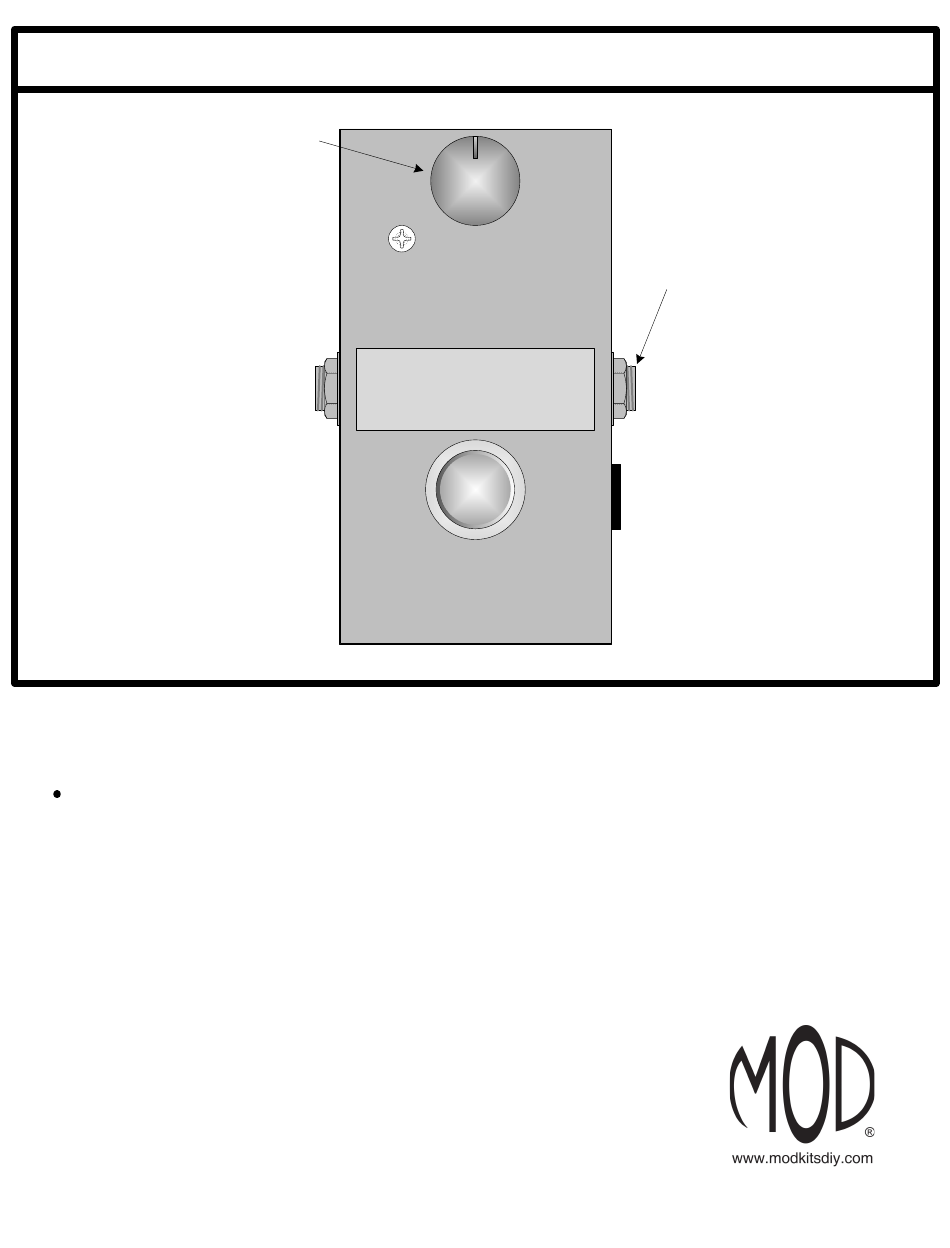

THE PENETRATOR (K-996)
LEVEL

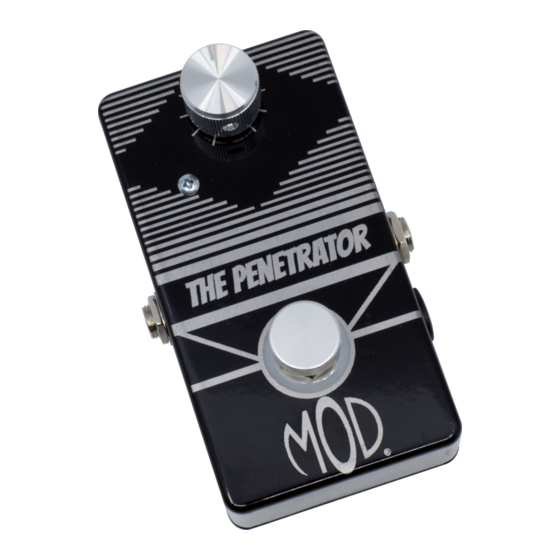

The Penetrator
Treble Boost
Modkitsdiy.com
Signal Input
(From Guitar)
CENTER (-)
ADAPTER
1
Copyright © 2018 by modkitsdiy.com
Unplug when not in use
to save battery life.
9 VDC
