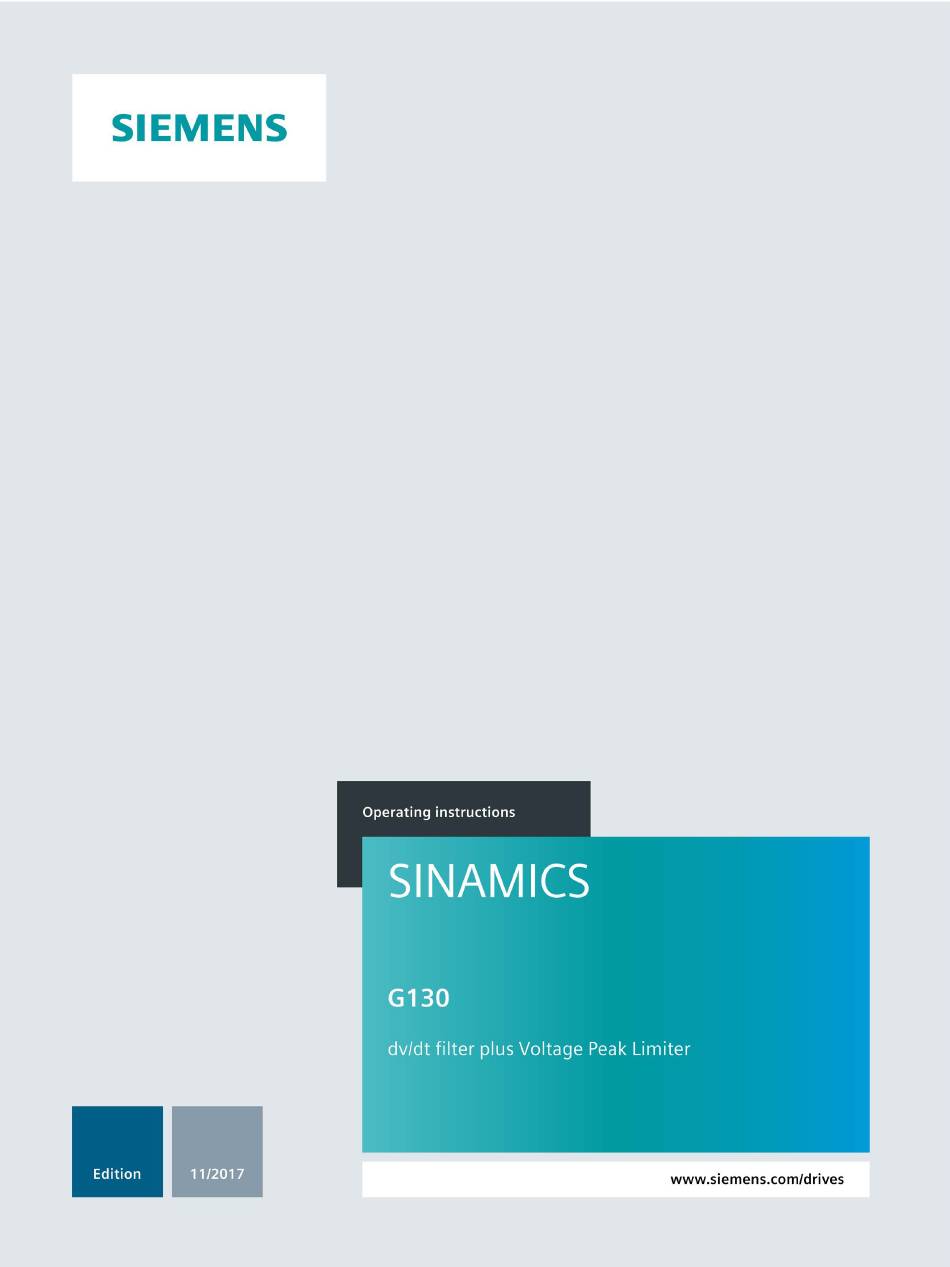

  • Page 3 ___________________ Safety information ___________________ General ___________________ SINAMICS Mechanical installation ___________________ Electrical installation SINAMICS G130 dV/dt filter plus Voltage Peak ___________________ Limiter Maintenance and servicing ___________________ Technical specifications Operating Instructions Firmware version V5.1 11/2017 A5E00692302A...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5: Table Of Contents

    Table of contents Safety information ........................... 5 General safety instructions ....................... 5 Handling electrostatic sensitive devices (ESD) ..............10 General ..............................11 Mechanical installation .......................... 17 Electrical installation..........................23 Maintenance and servicing ........................27 Technical specifications ........................29 dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 6 Table of contents dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 7: Safety Information

    Safety information General safety instructions WARNING Electric shock and danger to life due to other energy sources Touching live components can result in death or serious injury. • Only work on electrical equipment if you are appropriately qualified. • Always observe the country-specific safety rules for all work. Generally, the following steps apply when establishing safety: 1.
  • Page 8 Safety information 1.1 General safety instructions WARNING Electric shock due to equipment damage Improper handling may cause damage to equipment. For damaged devices, hazardous voltages can be present at the enclosure or at exposed components; if touched, this can result in death or severe injury. •...
  • Page 9 • If you come closer than around 2 m to such components, switch off any radio devices or mobile phones. • Use the "SIEMENS Industry Online Support App" only on equipment that has already been switched off. WARNING Motor fire in the event of insulation overload There is a greater load on the motor insulation as result of a ground fault in an IT system.
  • Page 10 Safety information 1.1 General safety instructions WARNING Fire due to inadequate ventilation clearances Inadequate ventilation clearances can cause overheating of components with subsequent fire and smoke. This can cause severe injury or even death. This can also result in increased downtime and reduced service lives for devices/systems. •...
  • Page 11 Safety information 1.1 General safety instructions Note Important safety instructions for Safety Integrated functions If you want to use Safety Integrated functions, you must observe the safety instructions in the Safety Integrated manuals. dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 12: Handling Electrostatic Sensitive Devices (Esd)

    Safety information 1.2 Handling electrostatic sensitive devices (ESD) Handling electrostatic sensitive devices (ESD) Electrostatic sensitive devices (ESD) are individual components, integrated circuits, modules or devices that may be damaged by either electric fields or electrostatic discharge. NOTICE Damage through electric fields or electrostatic discharge Electric fields or electrostatic discharge can cause malfunctions through damaged individual components, integrated circuits, modules or devices.
  • Page 13: General

    General Description The dv/dt filter plus voltage peak limiter comprises two components: the dv/dt reactor and the Voltage Peak Limiter, which cuts off the voltage peaks and returns the energy to the DC link. The dv/dt filters plus Voltage Peak Limiter must be used for motors for which the proof voltage of the insulation system is unknown or insufficient.
  • Page 14 When using components that have not been released, damage or malfunctions can occur at the devices or the system itself. • Only use dv/dt filters that SIEMENS has released for operation with SINAMICS. NOTICE Damage to the dv/dt filter by exceeding the maximum output frequency The maximum permissible output frequency when using a dv/dt filter is 150 Hz.
  • Page 15 General Assignment of dv/dt filter plus Voltage Peak Limiter and Power Module Table 2- 1 Assignment of dv/dt filter plus Voltage Peak Limiter and Power Module Power Module Unit rating of the Power Module Matching dv/dt filter plus Voltage Peak Limiter Line voltage 3 AC 380 ...
  • Page 16 General Table 2- 2 Max. pulse frequency when a dv/dt filter is used in units with a rated pulse frequency of 2 kHz Article no. Power [kW] Output current for a Max. pulse frequency when a dv/dt filter is used 6SL3310-...
  • Page 17 General Components The article numbers of the individual components (dv/dt reactor and Voltage Peak Limiter) are listed in the following table: Table 2- 4 dv/dt filter plus Voltage Peak Limiter, article number of the individual components dv/dt filter plus Voltage Peak Limiter dv/dt reactor Voltage Peak Limiter Line voltage 3 AC 380 V ...
  • Page 18 General Figure 2-1 Limiting the rate of voltage rise and the voltage peaks by means of the motor reactor and dv/dt filter plus Voltage Peak Limiter dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 19: Mechanical Installation

    Mechanical installation When the dv/dt filter plus Voltage Peak Limiter is installed in a cabinet, it must be positioned near the Power Module. Dimension drawing Figure 3-1 Dimension drawing, dv/dt reactor dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 20 Mechanical installation Table 3- 1 Dimensions of du/dt reactor, line voltage 3 AC 380 V - 480 V (all values in mm) 6SL3000- 2DE32-6CA0 2DE35-0CA0 2DE38-4CA0 2DE41-4DA0 10.5 x 14 14 x 18 14 x 18 14 x 18 152.5 152.5 hmax M10 (12 x 18)
  • Page 21 Mechanical installation Table 3- 3 Dimensions of dv/dt reactor, line voltage 3-phase 500 - 600 VAC and 660 - 690 VAC, Part 2 (all values in mm) 6SL3000- 2DH34-1CA0 2DH35-8CA0 2DH38-1DA0 14 x 18 14 x 18 14 x 18 152.5 152.5 hmax...
  • Page 22 Mechanical installation Figure 3-2 Dimension drawing of the Voltage Peak Limiter, type 1 Figure 3-3 Dimension drawing of the Voltage Peak Limiter, type 2 dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 23 Mechanical installation Figure 3-4 Dimension drawing of the Voltage Peak Limiter, type 3 dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 25: Electrical Installation

    Electrical installation Interface overview Figure 4-1 Interface overview, Voltage Peak Limiter, type 1 Figure 4-2 Interface overview, Voltage Peak Limiter, type 2 dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 26 Electrical installation Figure 4-3 Interface overview, Voltage Peak Limiter, type 3 Connection When connecting the dv/dt reactor and Voltage Peak Limiter, you must take into account the following conditions to ensure that it functions correctly: ● Control cables must be routed separately from power cables. Power cables are the motor cable or the connecting cables from the DC link of the Power Module (terminals DCPS/DCNS) to the Voltage Peak Limiter.
  • Page 27 Electrical installation Connection overview Figure 4-4 Connecting a dv/dt filter plus Voltage Peak Limiter for versions with one dv/dt reactor Figure 4-5 Connecting a dv/dt filter plus Voltage Peak Limiter for versions with two dv/dt reactors dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 28 Electrical installation Cable cross-sections Table 4- 1 Cable cross-sections for connections between the dv/dt filter plus Voltage Peak Limiter and Power Module dv/dt filter plus Voltage Peak Connection to the DC link Connection between dv/dt reactor and Volt- Limiter (DCPS/DCNS) age Peak Limiter [mm²] (1U2, 1V2, 1W2) [mm²]...
  • Page 29: Maintenance And Servicing

    Maintenance and servicing Maintenance and servicing are not carried out for the dv/dt reactor and the Voltage Peak Limiter. In the case of an error, full replacement of the dv/dt filter is necessary. dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 30 Maintenance and servicing dV/dt filter plus Voltage Peak Limiter Operating Instructions, 11/2017, A5E00692302A...
  • Page 31: Technical Specifications

    Technical specifications General technical data Table 6- 1 General technical data Output frequency 0 ... 150 Hz Product standard EN 61800-5-1 Ambient conditions Storage Transport Operation Ambient temperature -25 ... +70 °C -25 ... +70 °C 0 ... +50 °C Relative air humidity (con- 5 ...
  • Page 32 Technical specifications Detailed technical data Table 6- 2 Technical data for the dv/dt filter plus Voltage Peak Limiter, 3 AC 380 V ... 480 V Article number 6SL3000- 2DE32-6AA0 2DE35-0AA0 2DE38-4AA0 2DE41-4AA0 Suitable for Power Module 6SL3310- 1GE32-1AA3 1GE33-1AA3 1GE36-1AA3 1GE41-0AA3 1GE32-6AA3 1GE33-8AA3...
  • Page 33 Technical specifications Table 6- 3 Technical data for the dv/dt filter plus Voltage Peak Limiter, 3 AC 500 V ... 600 V, part 1 Article number 6SL3000- 2DH32-2AA0 2DH33-3AA0 2DH34-1AA0 2DH35-8AA0 Suitable for Power Module 6SL3310- 1GF31-8AA3 1GF32-6AA3 1GF34-1AA3 1GF34-7AA3 1GF32-2AA3 1GF33-3AA3 1GF35-8AA3...
  • Page 34 Technical specifications Table 6- 4 Technical data for the dv/dt filter plus Voltage Peak Limiter, 3 AC 500 V ... 600 V, part 2 Article number 6SL3000- 2DH38-1AA0 Suitable for Power Module 6SL3310- 1GF37-4AA3 1GF38-1AA3 Unit rating of the Power Module thmax Degree of protection...
  • Page 35 Technical specifications Table 6- 5 Technical data for the dv/dt filter plus Voltage Peak Limiter, 3 AC 660 V ... 690 V, part 1 Article number 6SL3000- 2DH31-0AA0 2DH31-5AA0 2DH32-2AA0 2DH33-3AA0 Suitable for Power Module 6SL3310- 1GH28-5AA3 1GH31-2AA3 1GH31-8AA3 1GH32-6AA3 1GH31-0AA3 1GH31-5AA3 1GH32-2AA3...
  • Page 36 Technical specifications Table 6- 6 Technical data for the dv/dt filter plus Voltage Peak Limiter, 3 AC 660 V ... 690 V, part 2 Article number 6SL3000- 2DH34-1AA0 2DH35-8AA0 2DH38-1AA0 Suitable for Power Module 6SL3310- 1GH34-1AA3 1GH34-7AA3 1GH37-4AA3 1GH35-8AA3 1GH38-1AA3 Unit rating of the Power Module thmax...
