Power Adapter; Usb Power Cable; Usb - TiePie Handyscope HS6 DIFF Series User Manual

8.1.1

Power adapter

The Handyscope HS6 DIFF comes with an external power adapter that can be
connected to any mains power net that supplies 100 – 240 V
external power adapter can be connected to the dedicated power connector.
8.1.2

USB power cable

A special USB external power cable is supplied with the Handyscope HS6 DIFF
that can be used instead of a power adapter. One end of this cable can be con-
nected to a second USB port on the computer, the other end can be plugged in
the dedicated power connector at the rear of the instrument. The power for the
instrument will then be taken from two USB ports.
8.2

USB

The Handyscope HS6 DIFF is equipped with a USB 3.0 Super speed (5 Gbit/s) in-
terface with a fixed cable with type A plug. It will also work on a computer with a
USB 2.0 interface, but will then operate at 480 Mbit/s.
30
Chapter 8

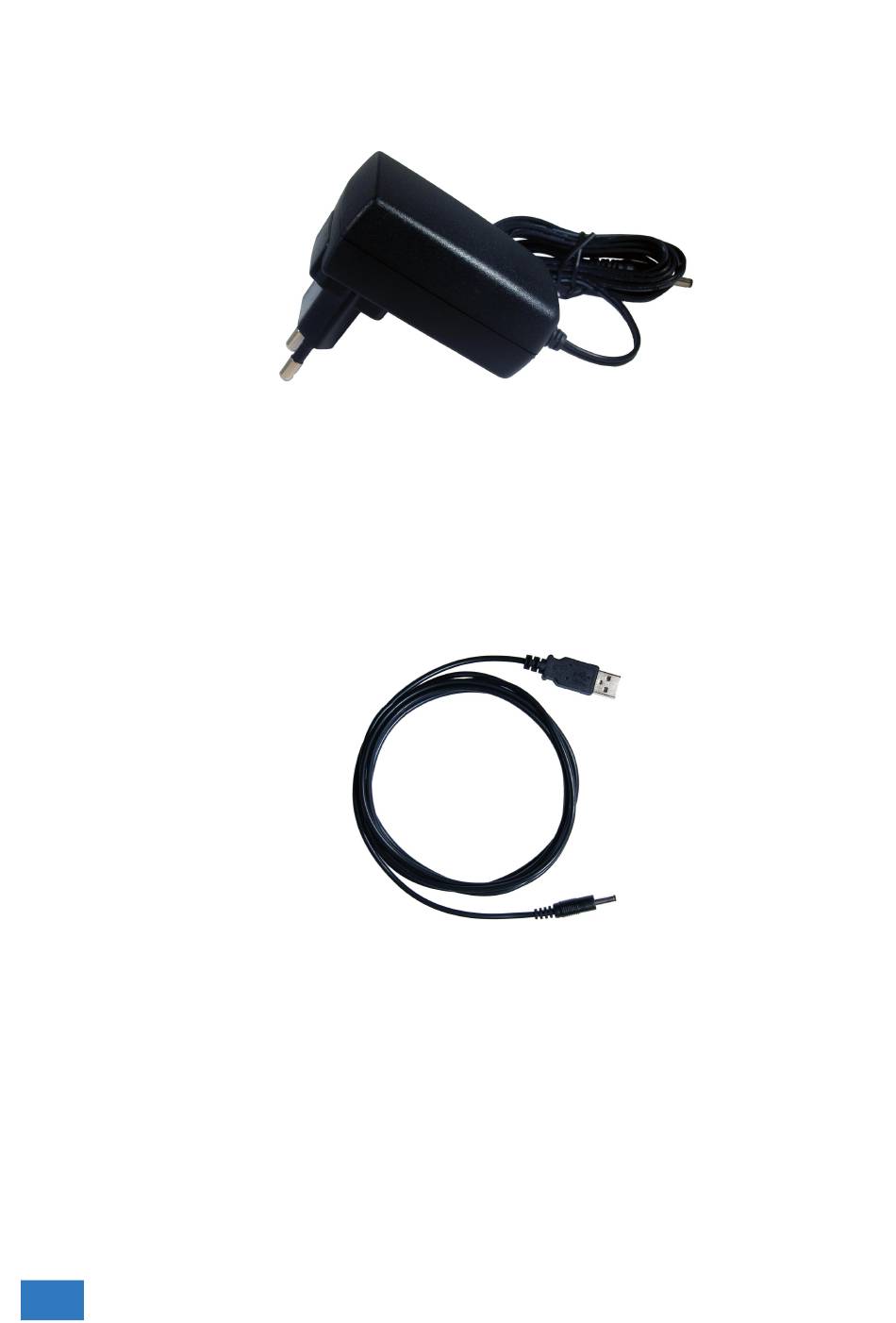

Figure 8.3: Power adapter
Figure 8.4: USB power cable
