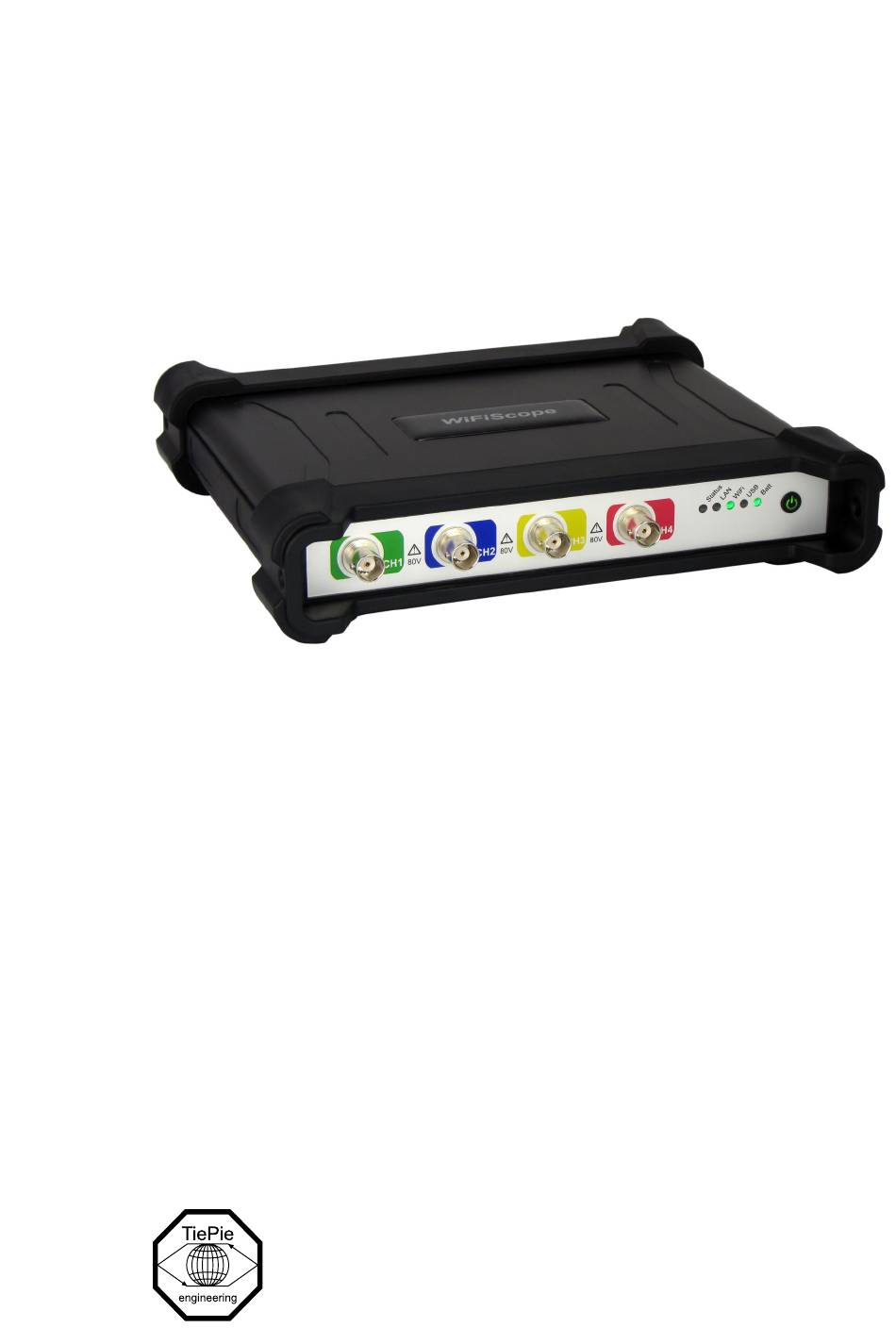

  • Page 1 WiFiScope WS6 User manual Network WiFi Battery power TiePie engineering...
  • Page 2 ATTENTION! Measuring directly on the line voltage can be very dangerous. The outside of the BNC connectors at the WiFiScope WS6 are connected with the ground of the computer. Use a good isolation transformer or a differential probe when measuring at the line voltage or at grounded power supplies! A short-circuit current will flow if the ground of the WiFiScope WS6 is connected...

  • Page 3: Table Of Contents

    Contents Welcome Safety Declaration of conformity Introduction Sampling ....... . Sampling rate .
  • Page 4 Front panel Channel input connectors ..... . Power/Mode button ......Status indicators .

  • Page 5: Welcome

    Welcome Wireless measuring has now become a reality with the WiFiScope WS6. If a large distance needs to be bridged between the measuring instrument and the PC, the WiFiScope WS6 is the solution for this. Fast measurements and high speed data acquisition are now possible wherever the WiFiScope WS6 is located in the world.
  • Page 6 Chapter 1...

  • Page 7: Safety

    Use a good isolation transformer or a differential probe when measuring at the line voltage or at grounded power supplies! A short-circuit current will flow if the ground of the WiFiScope WS6 is con- nected to a positive voltage. This short-circuit current can damage both the WiFiScope WS6 and the computer.

  • Page 9: Declaration Of Conformity

    8601 WL Sneek The Netherlands EC Declaration of conformity We declare, on our own responsibility, that the product WiFiScope WS6-1000(XM/E/S) WiFiScope WS6-500(XM/S) WiFiScope WS6-200(XM/S) for which this declaration is valid, is in compliance with EC directive 2011/65/EU (the RoHS directive)
  • Page 10 In order to avoid release of such substances into the environment and to reduce the use of natural resources, recycle the WiFiScope WS6 in an appropriate system that will ensure that most of the materials are reused or recycled appropriately.

  • Page 11: Introduction

    It can be connected to the computer via USB, wired ethernet and WiFi. When used via WiFi, the WiFiScope WS6 can be connected to an existing WiFi network or can act as access point to create its own WiFi network.
  • Page 12 ≤ 5 MSa/s when connected to USB 2.0 ≤ 3.125 MSa/s when connected to USB 2.0, measuring 3 or 4 channels These maximum streaming rates are only achieved when using the WiFiScope WS6 via its USB interface. When used as wired network instrument, maximum stream- ing rates may be lower, depending on network speed and load.

  • Page 13: Sampling

    Resistance can be shown in meter displays and can also be plotted versus time in a graph, creating an Ohm scope. With the accompanying software the WiFiScope WS6 can be used as an oscillo- scope, a spectrum analyzer, a true RMS voltmeter or a transient recorder. All in- struments measure by sampling the input signals, digitizing the values, process them, save them and display them.

  • Page 14: Sampling Rate

    Figure 4.2: ”connecting” the samples Sampling rate The rate at which the samples are taken is called the sampling rate, the number of samples per second. A higher sampling rate corresponds to a shorter interval between the samples. As is visible in figure 4.3, with a higher sampling rate, the original signal can be reconstructed much better from the measured samples.
  • Page 15 Multiple of sampling rate 1250 Hz signal -1250 Hz signal -1000 -1000 + 1250 = 250 -1000 - 1250 = -2250 0 + 1250 = 1250 0 - 1250 = -1250 1000 1000 + 1250 = 2250 1000 - 1250 = -250 2000 2000 + 1250 = 3250 2000 - 1250 =...

  • Page 16: Digitizing

    16384 = 24.41 µV. Signal coupling The WiFiScope WS6 has two different settings for the signal coupling: AC and DC. In the setting DC, the signal is directly coupled to the input circuit. All signal com- ponents available in the input signal will arrive at the input circuit and will be mea- sured.

  • Page 17: Probe Compensation

    When measuring DC signals, make sure to set the signal coupling of the input to DC. Probe compensation The WiFiScope WS6 is shipped with a probe for each input channel. These are 1x/10x selectable passive probes. This means that the input signal is passed through directly or 10 times attenuated.
  • Page 18 Figure 4.8: over compensated Chapter 4...

  • Page 19: Driver Installation

    Introduction To operate a WiFiScope WS6 via USB, a driver is required to interface between the measurement software and the instrument. This driver takes care of the low level communication between the computer and the instrument, through USB. When...
  • Page 20 To remove the old driver successfully, it is essential that the WiFiScope WS6 is disconnected from the computer prior to starting the driver install utility. When the WiFiScope WS6 is used with an external power supply, this must be disconnected too.
  • Page 21 Figure 5.3: Driver install: Finished Driver installation...
  • Page 22 Chapter 5...

  • Page 23: Hardware Installation

    • via the USB interface When using the WiFiScope WS6 via its battery, no external power is required. The power consumption of the WiFiScope WS6 depends heavily on the settings of the instrument, when using higher sampling rates the instrument uses more power.

  • Page 24: Charging The Battery

    When storing the WiFiScope WS6 for a long time, it is recommended to first charge the battery to approximately 70 %. Do not store the WiFiScope WS6 for a long time with an empty battery or 100 % fully charged battery, as this may reduce battery capacity.

  • Page 25: Instrument Operation Mode

    To enable it again, a short press on the Power/Mode button is required. When the WiFiScope WS6 is not connected to external power or USB and is not used for two days (network interface disabled), the WiFiScope WS6 switches to ”Shipping mode”, where the network interface is consuming no power at all.

  • Page 26: Connect Via Lan

    In the Multi Channel software, open the Manage instruments dialog and check Seach instruments in local network. When searching the network is checked, the WiFiScope WS6 will appear. To con- nect the software to the WiFiScope WS6 check it and close the dialog with the OK button. Chapter 6...

  • Page 27: Connect Via Wifi

    In the Multi Channel software open the Manage instruments dialog and check Seach instruments in local network. Place a check in front of the detected WiFiScope WS6. It may take a few seconds to discover the instrument. The software will now ask how to connect to the WiFiScope WS6, select Add WifiScope to the ’WiFi’...

  • Page 28: The Computer/Laptop Has No Wifi

    In the Multi Channel software open the Manage instruments dialog and check Seach instruments in local network. Place a check in front of the detected WiFiScope WS6. It may take a few seconds to discover the instrument. If the computer is currently connected to a WiFi network, the software will ask how to connect to the WiFiScope WS6, select Add WifiScope to the...
  • Page 29 Click the WiFi button in the istruments manager to open the WiFiScope WS6 web interface. Login to the web interface (default password = tiepie). In the web interface, connect to the WiFi network using the connect button (and enter its password if required) When successfully connected, close the web interface and disconnect the LAN cable.

  • Page 30: Connect Via Usb

    Connect via USB To use the WiFiScope WS6 via USB, connect the WiFiScope WS6 USB port on the rear panel to the computer via a USB cable. When using the instrument via USB, the network interface must disabled via the Power/Mode button on the front panel of the instrument.

  • Page 31: Combining Instruments

    USB. When used as network instrument (LAN or WiFi), combining is not possible. The CMI (Combine Multiple Instruments) interface that is available by default on the WiFiScope WS6 provides an easy way to couple multiple oscilloscopes to one combined oscilloscope. Figure 7.1: CMI diagram The CMI interface supports automatic recognition of the instrument.
  • Page 32 A 20 channel instrument is easily made by connecting five WiFiScope WS6s to each other. When combining one or more WiFiScope WS6 s with Handyscope HS5 s and/or WiFiScope WS5s, the daisy chained CMI bus must begin or end with a WiFiScope WS6.

  • Page 33: Front Panel

    The Power/Mode button is situated at the right of the front of the instrument. It is used to switch the mode of the WiFiScope WS6 between USB use and LAN or WiFi use. To use the WiFiScope WS6 via LAN or WiFi, the network interface must be enabled, by pressing the Power/Mode button.

  • Page 34: Wifi

    When lit continuously blue, the WiFiScope WS6 is assigned a link local ad- dress. 8.3.3 WiFi When the WiFi indicator is lit, the WiFiScope WS6 is connected to the computer and measuring via a WiFi network. The color indicates how the instrument oper- ates: •...

  • Page 35: Rear Panel

    Figure 9.1: Rear panel Power The WiFiScope WS6 can be powered by its internal battery, via a dedicated power input at the rear panel and via the USB interface. To charge the battery, connect the external power supply. The battery can also be charged via the USB, but only if the USB can deliver enough power to operate the instrument and charge the battery.

  • Page 36: Power Adapter

    Figure 9.3: Power adapter Figure 9.4: USB connector The WiFiScope WS6 is equipped with a USB 3.0 Super speed (5 Gbit/s) interface with a USB 3 type B Super speed socket. It will also work on a computer with a USB 2.0 interface, but will then operate at 480 Mbit/s.

  • Page 37: Extension Connector

    Extension Connector Figure 9.6: Extension connector A 9 pin female D-sub connector is available at the back of the WiFiScope WS6 containing the following signals: Description Description Description EXT 1 (LVTTL) reserved EXT 2 (LVTTL) reserved Power OUT (see description)

  • Page 38: Ventilation Slots

    And below the CMI connectors three smaller ventilation slots are located. Figure 9.8: Ventilation slots Do not block the ventilation slots as this may cause the WiFiScope WS6 becoming too hot. Do not insert objects in the ventilation slot as this may damage the fan.

  • Page 39: Specifications

    To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow extra time for internal temperatures to stabilize. Because of temperature compensated calibration, the WiFiScope WS6 will settle within specified accuracy regardless of the surrounding temperature.

  • Page 40: Acquisition System (Continued)

    10.2 Acquisition system (continued) Maximum streaming rate WS6-1000 WS6-500 WS6-200 8 bit 200 MSa/s 1 100 MSa/s 1 Measuring 1 channel 40 MSa/s 100 MSa/s 2 50 MSa/s 2 Measuring 2 channels 20 MSa/s 50 MSa/s 3 25 MSa/s 3 Measuring 3 or 4 channels 10 MSa/s 12 bit...

  • Page 41: Trigger System

    10.3 Trigger system System Digital, 2 levels Source CH1, CH2, CH3, CH4, digital external, OR Trigger modes Rising edge, falling edge, any edge, inside window, outside window, enter window, exit window, pulse width Level adjustment 0 to 100% of full scale Hysteresis adjustment 0 to 100% of full scale Resolution...

  • Page 42: Probe Calibration

    10.6 Probe calibration Output Extension connector pins 3 (signal) and 6 (ground) Signal Square wave Level -1 V to 1 V Frequency 1 kHz 10.7 Physical Height 44 mm / 1.7” Length 187 mm / 7.4” Width 215 mm / 8.5” Weight 751 g / 26.5 ounce USB cord length...

  • Page 43: Certifications And Compliances

    10.15 Warranty TiePie engineering instruments are designed, manufactured and tested to provide high reliability. In the un- likely event you experience difficulties, the TiePie engineering instruments are fully warranted for two years. This warranty includes All parts and labor (excluding probes and/or measure leads and/or batteries) Warranty on batteries is 6 months.
  • Page 44 Chapter 10...
  • Page 45 If you have any suggestions and/or remarks regarding this manual, please contact: TiePie engineering Koperslagersstraat 37 8601 WL SNEEK The Netherlands Tel.: +31 515 415 416 Fax: +31 515 418 819 E-mail: support@tiepie.nl Site: www.tiepie.com...
  • Page 46 TiePie engineering WiFiScope WS6 instrument manual revision 2.26, November 2019...
