Rear panel

8.1

Power

The Handyscope HS6 DIFF is powered through the USB. If the USB cannot supply
enough power, it is possible to power the instrument externally. The Handyscope
HS6 DIFF has two external power inputs located at the rear of the instrument: the
dedicated power connector and a pin of the 9 pin D-sub extension connector. The
specifications of the dedicated power connector are:
To power the instrument through the extension connector, the power has to be
applied to pin 7 of the extension connector. Pin 6 can be used as ground. The
following minimum and maximum voltages apply to the power inputs:
Note that the externally applied voltage should be higher than the USB voltage to
relieve the USB port.

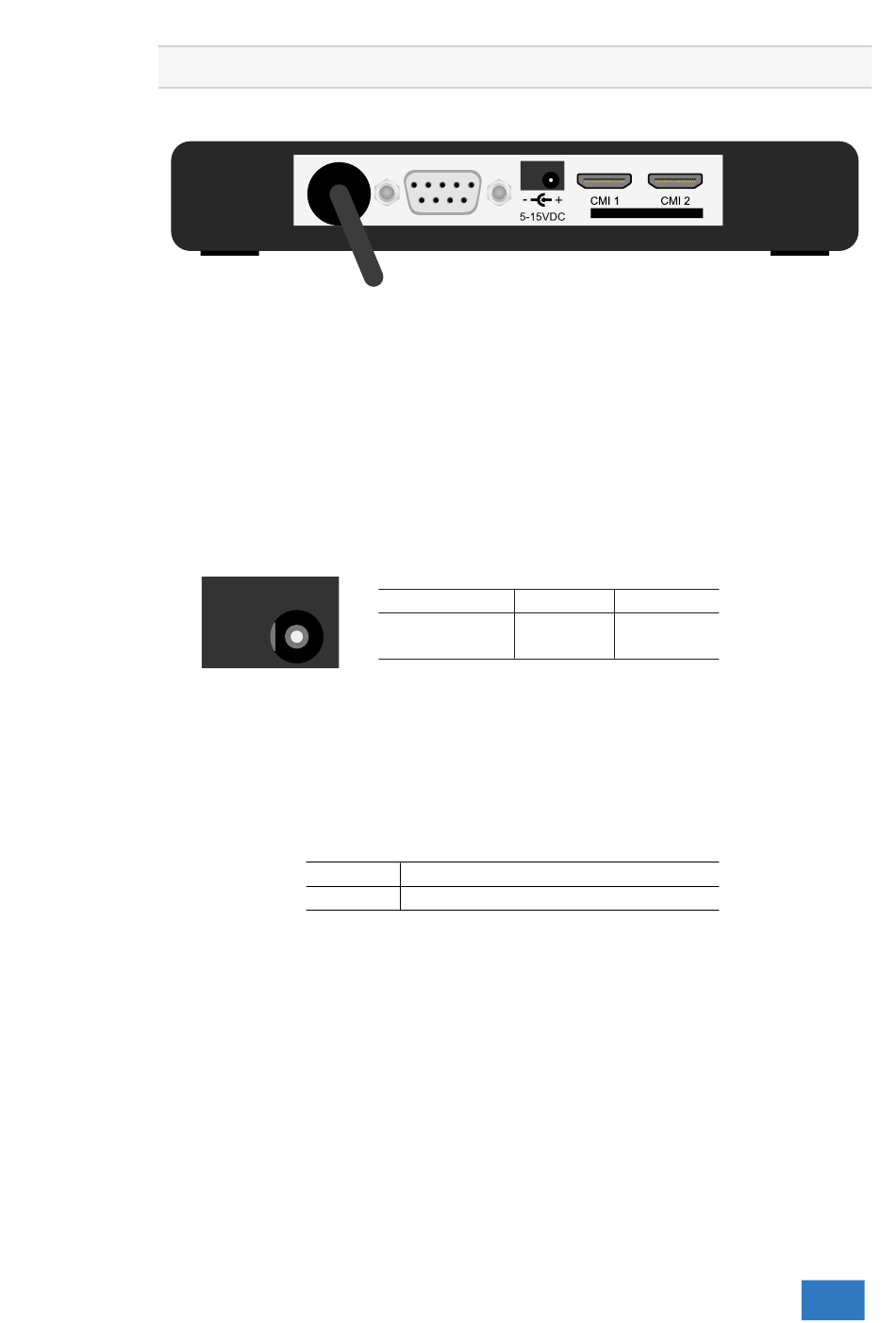

Figure 8.1: Rear panel
Pin
Center pin
Outside bushing
Figure 8.2: Power connector
Minimum 4.5 V / 2 A max.
DC
Maximum 15 V / 1 A max.
DC
Table 8.1: Maximum voltages
Dimension Description
Ø1.3 mm positive
Ø3.5 mm ground
