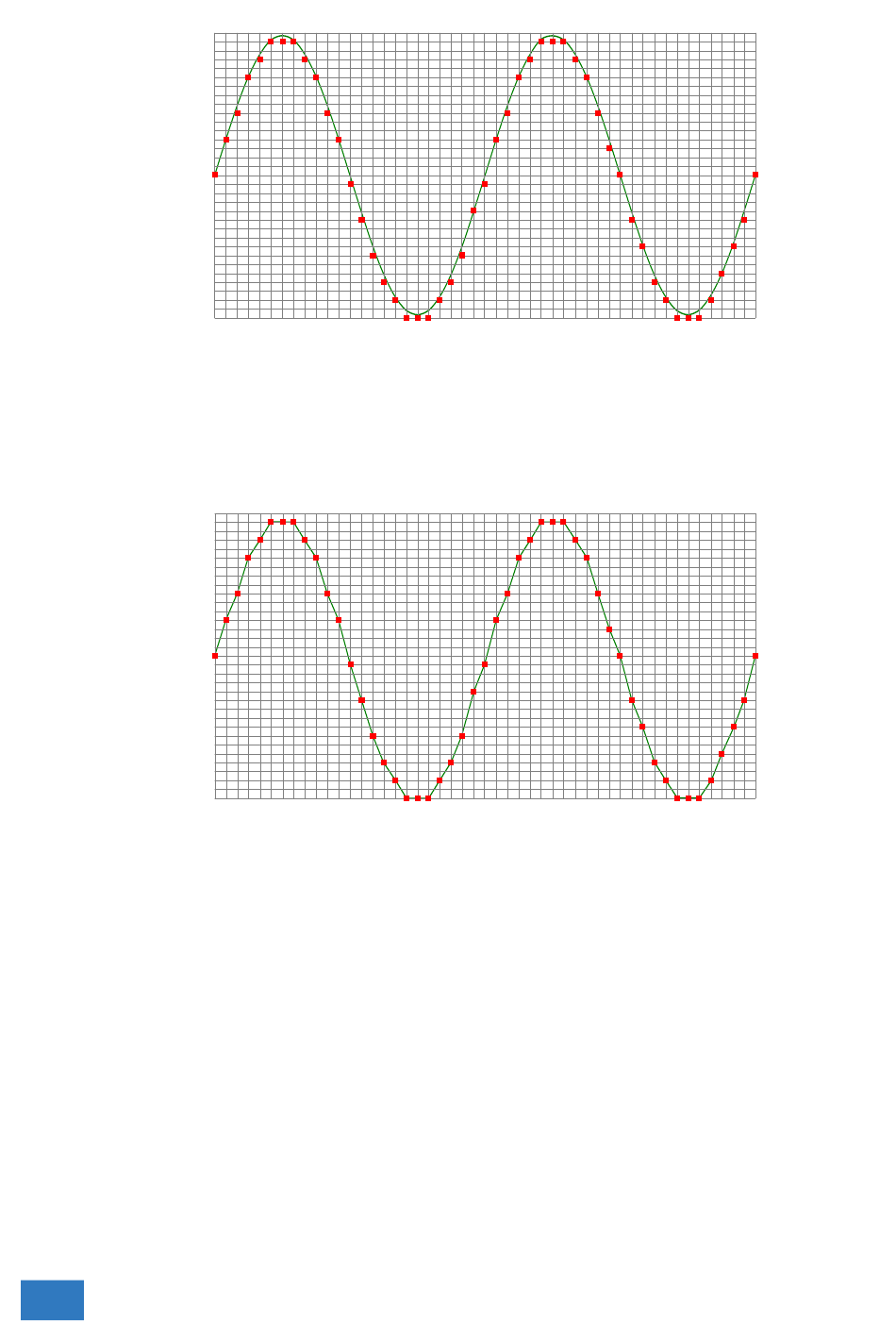

Figure 3.8: Sampling
The sine wave in figure 3.8 is sampled at the dot positions. By connecting the
adjacent samples, the original signal can be reconstructed from the samples. You
can see the result in figure 3.9.
Figure 3.9: "connecting" the samples
3.3

Sampling rate

The rate at which the samples are taken is called the sampling rate, the number
of samples per second. A higher sampling rate corresponds to a shorter interval
between the samples. As is visible in figure 3.10, with a higher sampling rate, the
original signal can be reconstructed much better from the measured samples.
