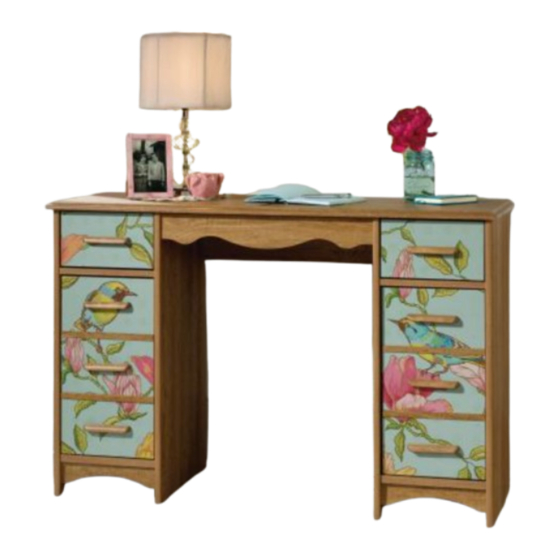

- Page 1 Teknik www.teknikoffice.co.uk The original desktop. Boutique Style Desk Model 5420194 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-22 Hammer Not actual size Skip the power trip. This time. Part Identifi cation RIGHT END (1) TOP (1) ADJUSTABLE SHELF (2) LEFT END (1) BOTTOM (2)
- Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. D144 D950 D144...
- Page 4 Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. 35GC DRAWER RIGHT - 2 35GA CABINET RIGHT - 2 35GB CABINET LEFT - 2 35GD DRAWER LEFT - 2 BI-CAM DOWEL - 4 10A SLIDE CAM - 4 HIDDEN CAM - 28 CAM DOWEL - 20...
- Page 5 Step 1 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Push twenty-eight HIDDEN CAMS (1F) into the å ENDS (A and B), UPRIGHTS (C and D), BOTTOMS (G), DOOR PANELS (I, J, K, L, M, and N ) and BRACES (Q).
- Page 6 Step 2 Fasten the CABINET RIGHTS (35GA) to the RIGHT END (A) å and LEFT UPRIGHT (D) and the CABINET LEFTS (35GB) to the LEFT END (B) and RIGHT UPRIGHT (C). Use eight GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #3. Roller end GOLD 5/16"...
- Page 7 Step 3 Fasten the ENDS (A and B) to the BOTTOMS (G). Tighten å four HIDDEN CAMS. Rounded edge h o l i t h f a c S u r These holes must be here. Rounded edge S u r f a c H I D D E N...
- Page 8 Step 4 Insert four METAL PINS (1R) into the short edges of the å BRACES (Q). Fasten the BRACES (Q) to the ENDS (A and B). Tighten å two HIDDEN CAMS. NOTE: Be sure the PINS in the BRACES insert into the å...
- Page 9 Step 5 Fasten the UPRIGHTS (C and D) to the BRACES (Q) and å BOTTOMS (G). Tighten six HIDDEN CAMS. NOTE: Be sure the PINS in the BRACES insert into the å holes in the UPRIGHTS. Maximum Arrow 210 degrees Minimum 190 degrees Rounded edge...
- Page 10 Step 6 Fasten six METAL BRACKETS (4G) to the SKIRTS (R). Use å six BLACK 9/16" LARGE HEAD SCREWS (1S). Fasten the SKIRTS (R) to the ENDS (A and B), UPRIGHTS å (C and D), and BOTTOMS (G). Use six BLACK 9/16" LARGE HEAD SCREWS (1S).
- Page 11 Step 7 Fasten the VALANCE (P) and MODESTY PANEL (E) to å the UPRIGHTS (C and D). Use eight BLACK 1-15/16" FLAT HEAD SCREWS (113S). 113S BLACK 1-15/16" FLAT HEAD SCREW (8 used in this step) Curved edge Finished edge Page 11...
- Page 12 Step 8 Fasten the TOP (F) to the ENDS (A and B) and UPRIGHTS å (C and D). Tighten eight HIDDEN CAMS. Don't worry. It isn't Rome. This can be built in a day. Maximum Arrow 210 degrees Minimum 190 degrees S u r f a c i t h...
- Page 13 Step 9 Carefully turn your unit over onto its front edges. Lay the å Caution BACKS (H) over the two box openings. Do not stand the unit upright without the Make equal margins along all four edges of the BACKS (H). å...
- Page 14 Step 10 1. Fill the two outside holes in the LEFT UPPER DOOR PANEL (I) 1/4 to 1/2 full with å GLUE (54M). 2. Insert two WOOD DOWELS (30F) into the holes. Wipe away the excess GLUE. å Insert a BI-CAM DOWEL (25F) into the center hole of the LEFT UPPER DOOR PANEL (I).
- Page 15 Step 11 1. Fill the two outside holes in the RIGHT UPPER DOOR PANEL (L) 1/4 to 1/2 full å with GLUE (54M). 2. Insert two WOOD DOWELS (30F) into the holes. Wipe away the excess GLUE. å Insert a BI-CAM DOWEL (25F) into the center hole of the RIGHT UPPER DOOR PANEL (L) 3.
- Page 16 Step 12 Carefully fl ip the doors over. Tighten eight HIDDEN å CAMS. Wipe away the excess glue. First, slide a HINGE BRACKET (48H) into the L shaped å clip underneath the HINGE (54H). Second, swing the other end of it up until it snaps into the HINGE as shown in the right diagram.
- Page 17 Step 13 Carefully stand your unit upright. å Fasten the LEFT DOOR PANELS (I and K) to the LEFT å END (B). Use the screws in the HINGES BRACKETS. Fasten three PULLS (132K) to the DOOR PANELS (I, J, å and K).
- Page 18 Step 14 Refer to the enlarged diagram to identify the parts on å the HINGES. The DOORS may need some adjustments. Follow the text å below to make needed adjustments. Mounting screw (depth) DOOR ADJUSTMENTS: å To adjust the DOORS from side to side (horizontal) turn the adjusting screw in or out.
- Page 19 Step 15 The tabs should insert freely With the palm of your into the slots. Gently tilt the hand, tap the DRAWER DRAWER SIDES side to side BOTTOM down into until the tabs slip into the slots. the groove. fi n i s h r f a D950...
- Page 20 Step 16 Insert a SLIDE CAM (10A) into the DRAWER å SIDES (D16 and D17). Fasten a DRAWER RIGHT (35GC) to the DRAWER RIGHT å SIDE (D16) and a DRAWER LEFT (35GD) to the DRAWER LEFT SIDE (D17). Use four GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #3.
- Page 21 Step 17 Push the RUBBER SLEEVES (2R) over the METAL PINS (1R). Insert the METAL å PINS into the hole locations of your choice in the ENDS (A and B) and If you're doing this to UPRIGHTS (C and D). Set the ADJUSTABLE SHELVES (O) onto the METAL PINS. help a friend, don't leave without a bite.
- Page 22 Step 18 To make adjustments to the drawers, loosen SCREW #3 in the å SLIDES a 1/4 turn, then turn the CAM clockwise or counter- clockwise. Notice how the drawer raises or lowers as you turn the CAM. The higher the screw in the oblong hole, the higher your drawer front will be.
- Page 23 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves and drawers. •...
