GE Arize Element Top Light Installation Manual page 5

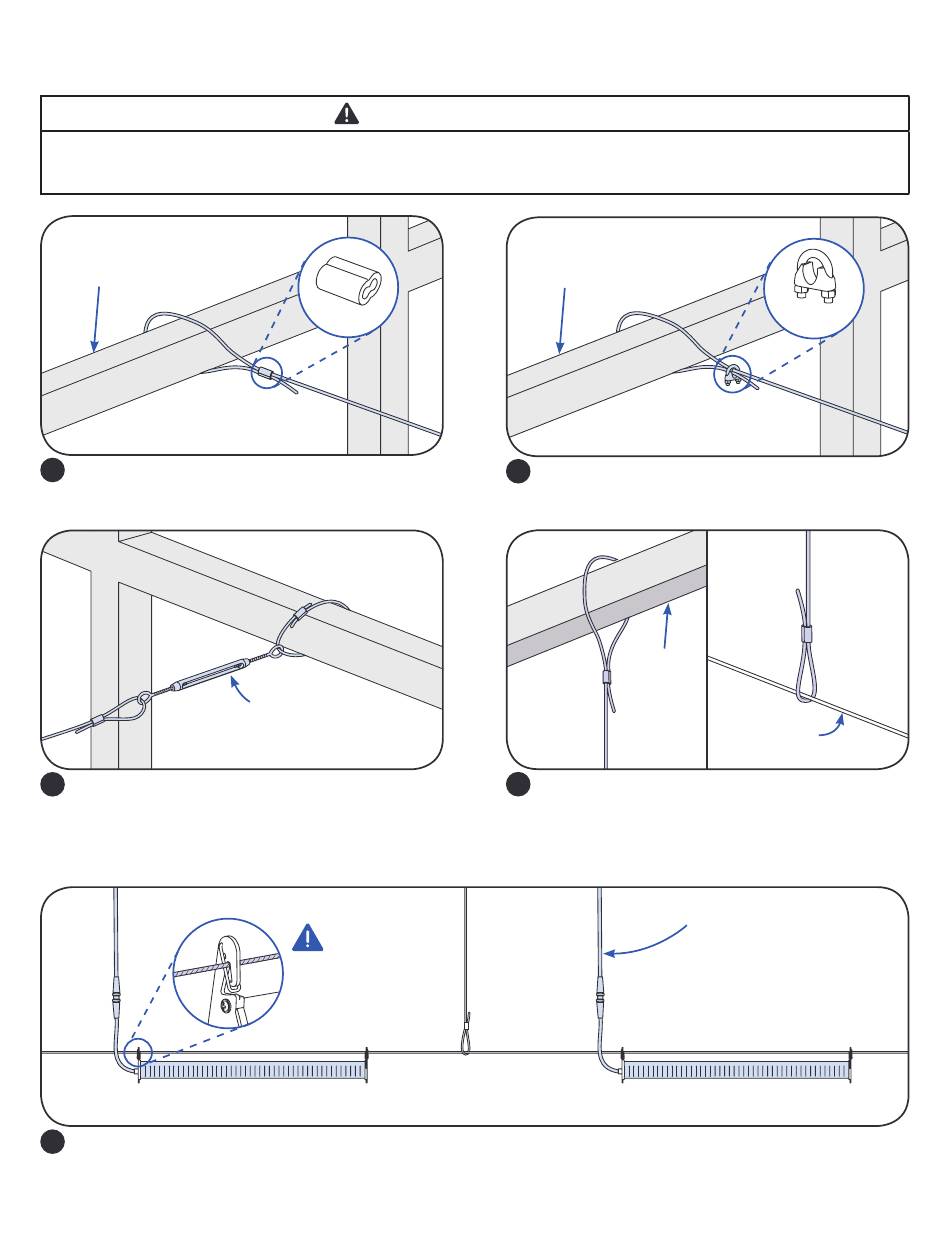

Option A Installation Steps
• Installer is responsible for suspension cable assembly.
• Test cable with at least 5x luminaires weight.
Structural member
1a
Loop one end of cable around a structural
member and secure with a stop sleeve.
2
Loosen the turnbuckle and secure it to a structural
member. Secure opposite end of cable to turnbuckle.
Tighten turnbuckle to reduce slack in cable.
4
Hang light engines on horizontal cable and position them evenly along cable.
Connect light engines to drivers directly or by using inter-connection cables (see next section for details).
ATTENTION / ATTENTION
Stop sleeve
Attach turnbuckle and tighten
Ensure cable is
secured by spring
clips at each end of
the light fixture.
• L'installateur est responsable de l'assemblage du câble de
suspension.
• Tester le câble avec au moins 5 fois le poids des luminaires.
Structural member
1b
Loop one end of cable around a structural
member and secure with a wire clamp.
3
Secure upper end of support cables to a structural
member at intervals of approximately 16 ft. Secure
lower end to horizontal cable. See Installation
Overview diagram above for reference.
5
Wire Clamp
Structural
member
Horizontal
cable
Inter-connection cable to driver
