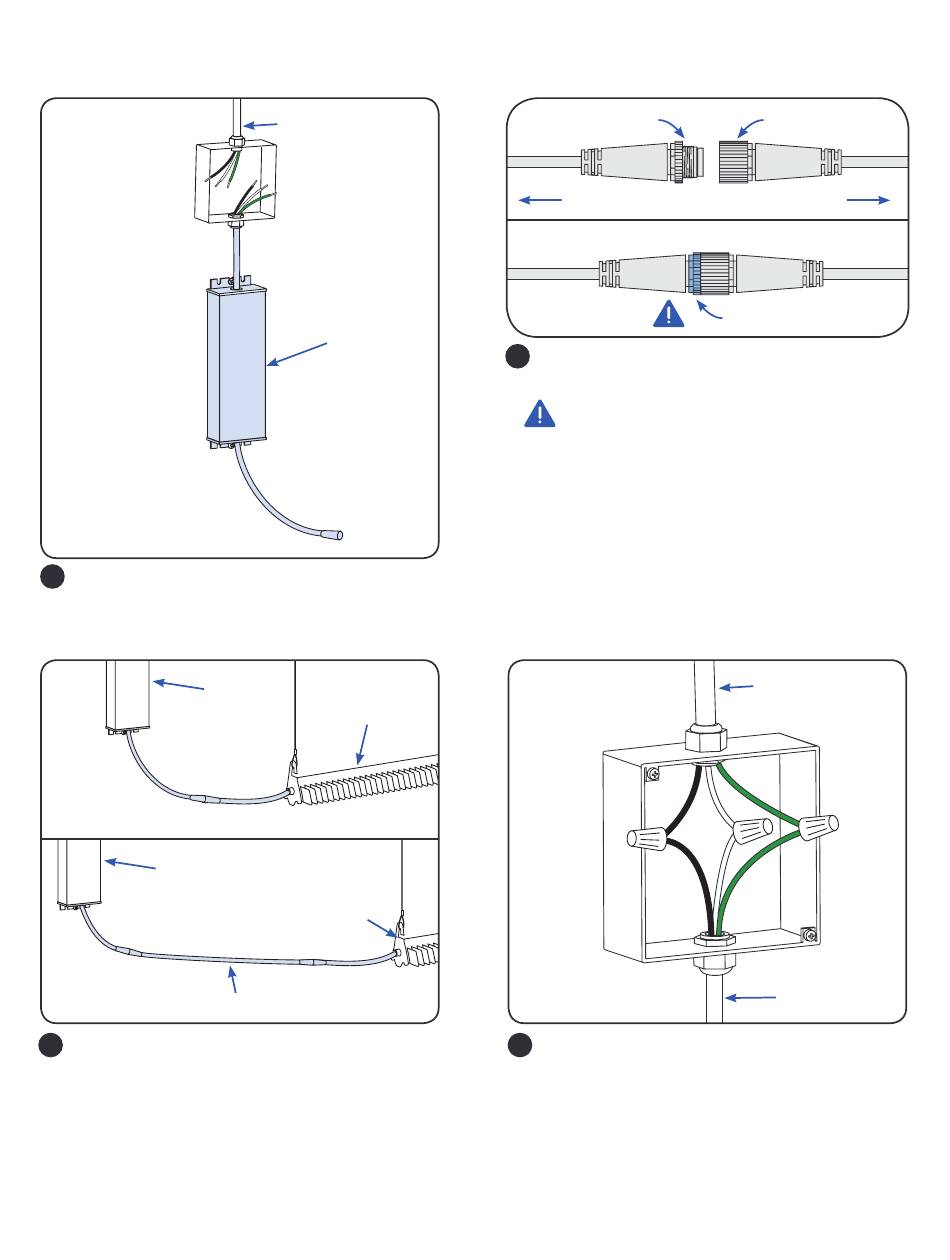

Electrical Connections
1
Connect driver(s) to junction box.
Driver
Option A
Driver
Option B
6' or 12' inter-connection cable
3
Option A: Connect driver output directly to
luminaire.
Option B: Connect driver output to luminaire
using inter-connection cable.
AC line
Driver
Luminaire
Luminaire
Male
Light module
2
Mate male connector from module with fe-
male connector from DC output of driver.
Secure blue lock nut by turning
counterclockwise until tight ensuring water
tight seal and good connection.
4
Connect the green wire to the incoming ground
conductor. Connect the black wire to Line 1
and white wires to the Neutral or Line 2 of the
incoming AC line.
8
Female
Driver
Secure locknut
AC line
To driver input
