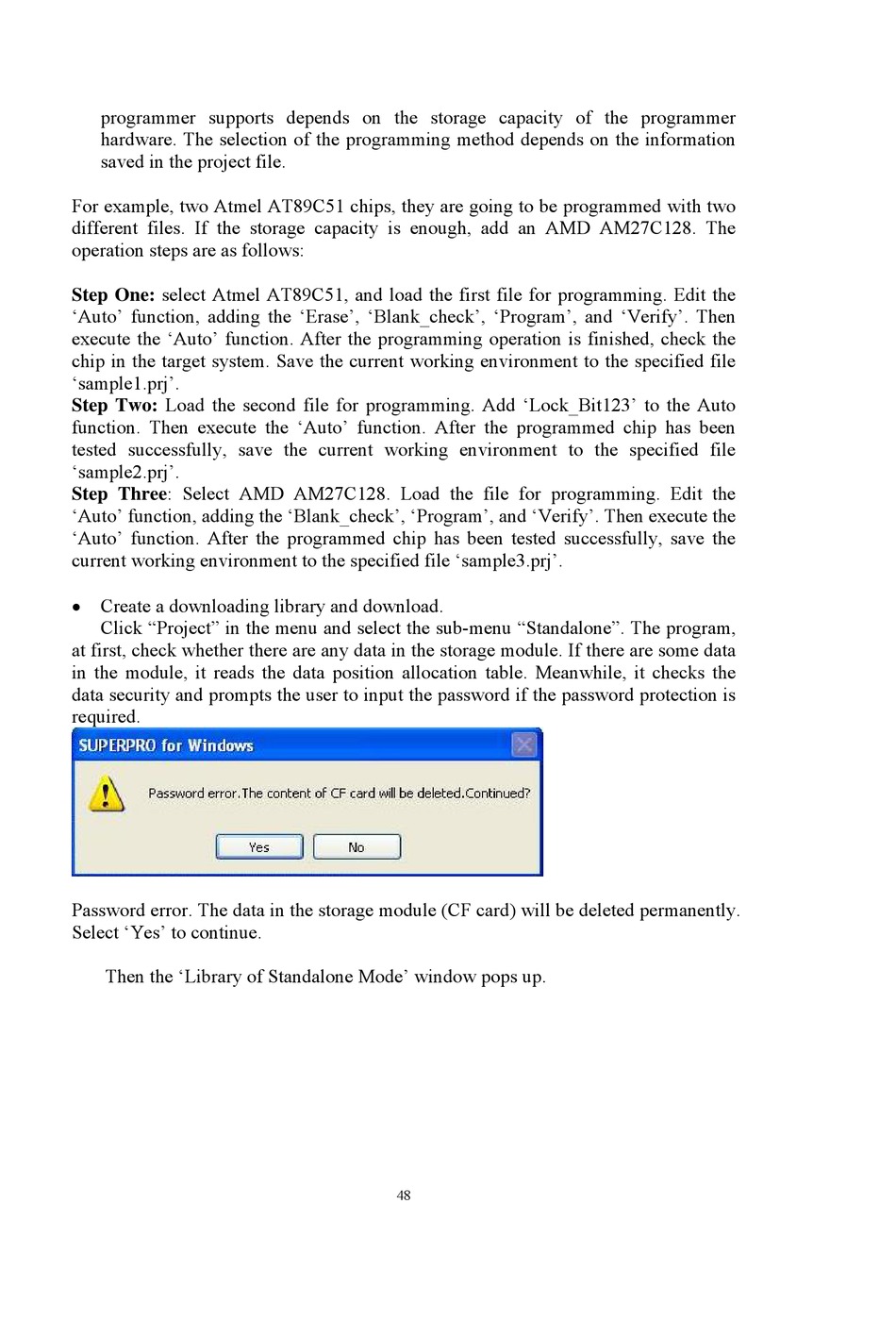

programmer supports depends on the storage capacity of the programmer
hardware. The selection of the programming method depends on the information
saved in the project file.
For example, two Atmel AT89C51 chips, they are going to be programmed with two
different files. If the storage capacity is enough, add an AMD AM27C128. The
operation steps are as follows:
Step One: select Atmel AT89C51, and load the first file for programming. Edit the
'Auto' function, adding the 'Erase', 'Blank_check', 'Program', and 'Verify'. Then
execute the 'Auto' function. After the programming operation is finished, check the
chip in the target system. Save the current working environment to the specified file
'sample1.prj'.
Step Two: Load the second file for programming. Add 'Lock_Bit123' to the Auto
function. Then execute the 'Auto' function. After the programmed chip has been
tested successfully, save the current working environment to the specified file
'sample2.prj'.
Step Three: Select AMD AM27C128. Load the file for programming. Edit the
'Auto' function, adding the 'Blank_check', 'Program', and 'Verify'. Then execute the
'Auto' function. After the programmed chip has been tested successfully, save the
current working environment to the specified file 'sample3.prj'.
Create a downloading library and download.
Click "Project" in the menu and select the sub-menu "Standalone". The program,
at first, check whether there are any data in the storage module. If there are some data
in the module, it reads the data position allocation table. Meanwhile, it checks the
data security and prompts the user to input the password if the password protection is
required.
Password error. The data in the storage module (CF card) will be deleted permanently.
Select 'Yes' to continue.
Then the 'Library of Standalone Mode' window pops up.
48
