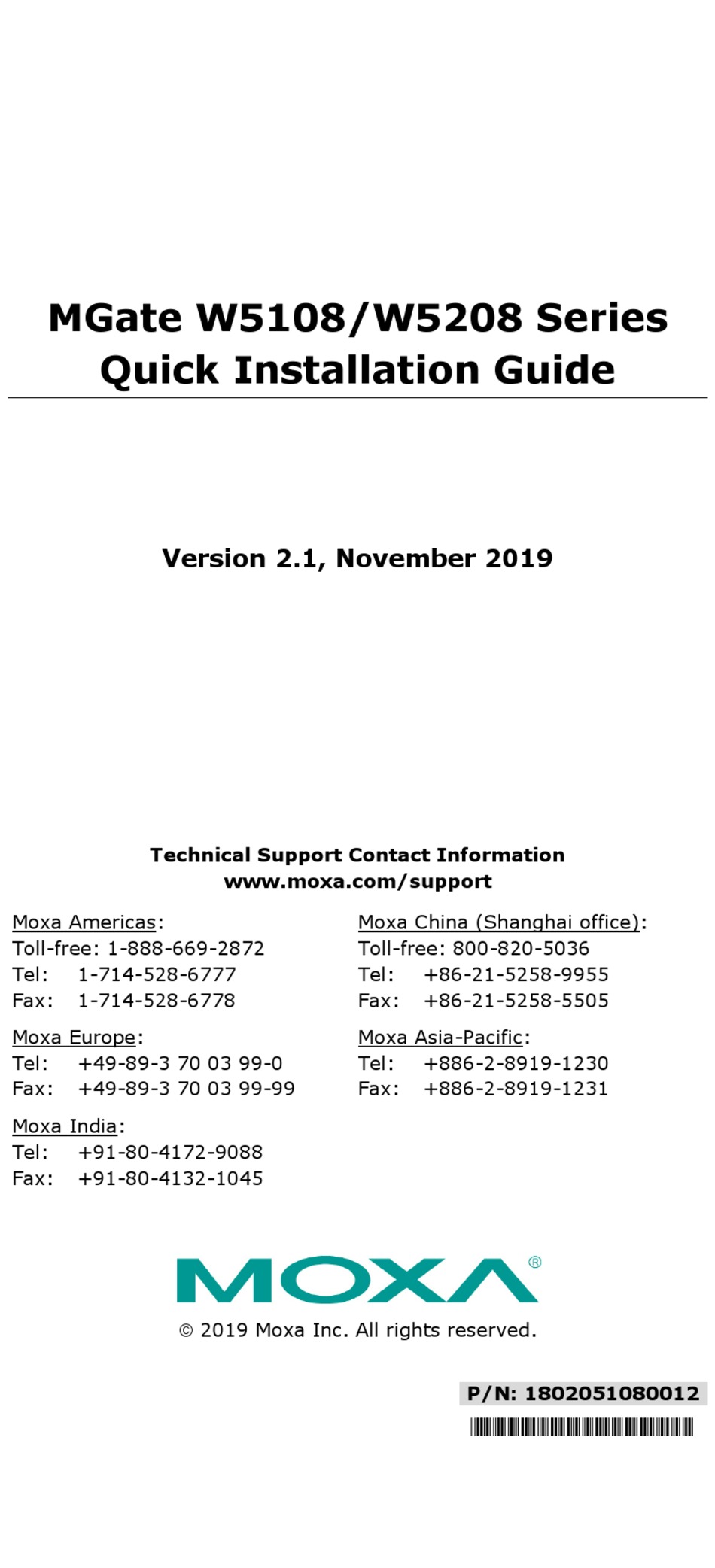

MGate W5108/W5208 Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Version 2.1, November 2019
Technical Support Contact Information
www.moxa.com/support
2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802051080012
*1802051080012*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies MGate W5108 Series
Summary of Contents for Moxa Technologies MGate W5108 Series
- Page 1 MGate W5108/W5208 Series Quick Installation Guide Version 2.1, November 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:...
- Page 2 Overview The MGate W5108/W5208 series of gateways comes with one or two serial ports, making them an ideal choice for connecting Modbus/DNP3 serial devices to a wireless LAN. With IEEE 802.11a/b/g/n support, you can use fewer cables in difficult wiring environments, and for secure data transmission, the MGate W5108/W5208 series of gateways supports WEP/WPA/WPA2.
- Page 3 MGate W5108 MGate W5208 - 3 -...
- Page 4 Reset Button—Depress the Reset button continuously for 5 sec. to load factory defaults. The reset button is used to load factory defaults. Depress the reset button for five seconds using a pointed object, such as a straightened paper clip. Release the reset button when the Ready LED stops blinking. LED Indicators Name Color...
- Page 5 Wall or Cabinet Mounting Two metal plates are provided for mounting the unit on a wall or inside a cabinet. Attach the plates to the unit’s rear panel with screws. With the plates attached, use screws to mount the unit on a wall.
- Page 6 For detailed information about DSU, refer to the MGate W5108/W5208 User’s Manual, which can be downloaded from Moxa’s website at http://www.moxa.com. Pin Assignments RJ45 (LAN) – – – – DB9 Male (RS-232/422/485) RS-422/ RS-232 RS-485-2W RS-485-4W TxD-(A) – TxD+(B) – RxD+(B) Data+(B) RxD-(A)
- Page 7 Specifications Power Input 9 to 60 VDC Power Consumption 9 to 60 VDC, 500 mA (max.) Operating Temperature Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) IECEx and ATEX Information 1.
