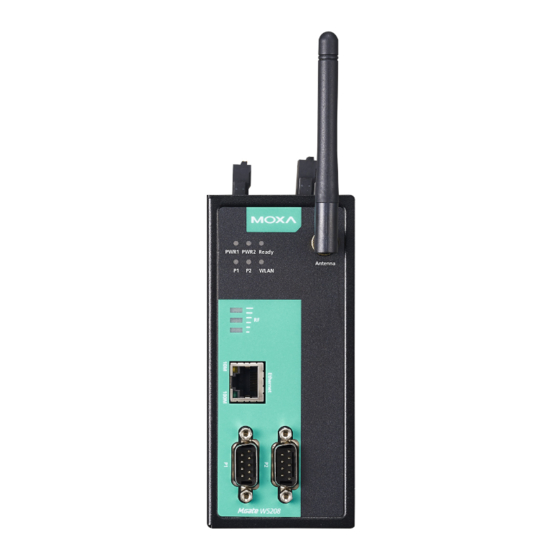

MGate W5108/W5208 Series
Modbus/DNP3 Gateway User's Manual
Edition 2.0, February 2017
www.moxa.com/product
© 2017 Moxa Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGATE W5108 series and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies MGATE W5108 series

Summary of Contents for Moxa Technologies MGATE W5108 series

  • Page 1 MGate W5108/W5208 Series Modbus/DNP3 Gateway User’s Manual Edition 2.0, February 2017 www.moxa.com/product © 2017 Moxa Inc. All rights reserved.
  • Page 2 MGate W5108/W5208 Series Modbus/DNP3 Gateway User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2017 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................1-1 Overview ............................1-2 Package Checklist ..........................1-2 Product Features ..........................1-3 Getting Started ..........................2-1 Connecting the Power ......................... 2-2 Connecting Serial Devices ........................2-2 RS-485 Termination and Pull High/Low Resistors ................2-2 First Time Configuration ....................... 2-3 Installing the Software .........................

  • Page 4: Introduction

    Introduction Welcome to the MGate W5108/W5208 series WiFi Modbus/DNP3 gateways, which are used to connect Modbus or DNP3 serial devices to a wireless LAN. The MGate W5108/5208 series gateway is an ideal choice for connecting the Modbus/DNP3 serial devices to a wireless LAN.

  • Page 5: Overview

    MGate W5108/W5208 Series Introduction Overview The MGate W5108/W5208 wireless Modbus/DNP3 protocol gateways provide maximum flexibility for integrating industrial Modbus/DNP3 networks of all types and sizes. The MGate W5108/W5208 gateways are designed to integrate Modbus TCP, ASCII, and RTU devices in almost any master and slave combination, including serial master to serial slave, or simultaneous serial and Ethernet masters.

  • Page 6: Product Features

    MGate W5108/W5208 Series Introduction Product Features • Retrieve Modbus/DNP3 serial data through an 802.11 network • Serial tunneling communication (supports TCP Server/Client modes) • Slave mode supports 16 TCP masters and up to 31 or 62 serial slaves at the same time •...

  • Page 7: Getting Started

    Getting Started This chapter provides basic instructions for installing the MGate W5108/W5208. The following topics are covered in this chapter:  Connecting the Power  Connecting Serial Devices  RS-485 Termination and Pull High/Low Resistors  First Time Configuration  Installing the Software ...

  • Page 8: Connecting The Power

    MGate W5108/W5208 Series Getting Started Connecting the Power The unit can be powered by connecting a power source to the terminal block. 1. We recommend using 24 to 16 AWG wire. Strip 9 to 10 mm of insulation off the end of the wire before inserting it into the terminal block hole.

  • Page 9: First Time Configuration

    MGate W5108/W5208 Series Getting Started First Time Configuration To configure the gateway for the first time, use an Ethernet cable to connect the 10/100BaseT Ethernet port located on the front panel to a PC. The unit’s Link LED will light up to indicate a live Ethernet connection. To connect to the MGate to the web console, open a web browser and enter the MGate gateway's IP address.

  • Page 10: Led Indicators

    MGate W5108/W5208 Series Getting Started You should also observe the following common wiring rules: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communication wiring and power wiring in the same wire conduit.

  • Page 11: Dimensions

    MGate W5108/W5208 Series Getting Started Dimensions MGate W5108...

  • Page 12: Mgate W5208

    MGate W5108/W5208 Series Getting Started MGate W5208 Adjustable Pull High/Low Resistors for the RS-485 Port In some critical environments, you may need to add termination resistors to prevent the reflection of serial signals. When using termination resistors, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted.

  • Page 13: Pin Assignments

    MGate W5108/W5208 Series Getting Started Pin Assignments The MGate W5108/W5208 uses DB9 serial ports to connect to Modbus RTU/ASCII or DNP3 devices. Each port supports three serial interfaces that select by software: RS-232, RS-422, and RS-485 (both 2 and 4-wire). RJ45 (Ethernet) Ethernet –...

  • Page 14: I/O Wiring Diagram

    MGate W5108/W5208 Series Getting Started I/O Wiring Diagram DI Dry Contact DI Wet Contact DO (Sink) Mounting the Unit 1. Connect the power adaptor. Connect the 12–48 VDC power line or DIN-rail power supply to the MGate W5108/W5208 device’s terminal block. 2.

  • Page 15: Specifications

    MGate W5108/W5208 Series Getting Started Specifications Ethernet Interface Protocols: Modbus TCP, DNP3, TCP Server/Client modes supported Number of Ports: 1 Speed: 10/100 Mbps, Auto MDI/MDIX Connector: 8-pin RJ45 Magnetic Isolation Protection: 1.5 kV (built-in) Serial Interface Protocols: Modbus RTU/ASCII Master/Slave, DNP3 Number of Ports: MGate W5108: 1 MGate W5208: 2...
  • Page 16 MGate W5108/W5208 Series Getting Started 5 GHz • 802.11a: 6 to 36 Mbps, Typ.15 (±1.5 dBm) 48 Mbps, Typ. 15 (±1.5 dBm) 54 Mbps, Typ. 14 (±1.5 dBm) • 802.11n (20/40 MHz): MCS0-3: Typ. 15 dBm (± 1.5 dBm) MCS4-5: Typ. 14 dBm (± 1.5 dBm) MCS6-7: Typ.
  • Page 17 MGate W5108/W5208 Series Getting Started • 802.11n (40MHz): -85 dBm @ MCS0 -84 dBm @ MCS1 -81 dBm @ MCS2 -77 dBm @ MCS3 -75 dBm @ MCS4 -70 dBm @ MCS5 -69 dBm @ MCS6 -67 dBm @ MCS7 Spread Spectrum and Modulation (Typical): OFDM (54, 48, 36, 24, 18, 12, 9, 6 Mbps) OFDM (MCS0, MCS1, MCS2, MCS3 MCS4, MCS5, MCS6, MCS7)

  • Page 18: Physical Characteristics

    MGate W5108/W5208 Series Getting Started Software Configuration Options: Web console, Serial console, Telnet console Utilities: Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 Network protocols: TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMP (v1, v2, v3), Private MIB, ARP, Telnet...

  • Page 19: Microsd Card

    MGate W5108/W5208 Series Getting Started Reliability MTBF (mean time between failures): 668,518 hrs Alarm Functions: SMS, relay, e-mail Alert Tools: Built-in buzzer Warranty Warranty Period: 5 years Details: See www.moxa.com/warranty microSD Card The MGate W5108/W5208 series gateway is equipped a microSD card slot for easy configuration. The microSD card can be used to store an MGate’s system configuration settings and the MGate’s system log.
  • Page 20 MGate W5108/W5208 Series Getting Started The MGate gateway will halt the write action if any of the above conditions exists. The MGate’s Ready LED will flash and the beeper will sound to inform the user of the write failure. If you are replacing the microSD card, the microSD card will be synchronized with the configurations stored on the MGate device.

  • Page 21: Device Search Utility

    Device Search Utility The following topics are covered in this chapter:  Installing the Software  Starting Device Search Utility (DSU)  Connecting to the Unit  Broadcast Search  Search IP  Locate  Upgrading the Firmware...

  • Page 22: Installing The Software

    MGate W5108/W5208 Series Device Search Utility Installing the Software The following instructions explain how to install the Device Search Utility (abbreviated DSU), a utility for configuring and monitoring MGate W5108/W5208 units over the network. 1. Insert the Document and Software CD into the CD-ROM drive. Locate and run the following setup program to begin the installation process: dsu_setup_[Version]_Build_[DateTime].exe The latest version might be named dsu_setup_Ver2.0_Build_xxxxxxxx.exe, for example:...
  • Page 23 MGate W5108/W5208 Series Device Search Utility 4. When the Select Additional Tasks window appears, click Next to continue. You may select Create a desktop icon if you would like a shortcut to DSU on your desktop. 5. Click Install to start copying the software files.
  • Page 24 MGate W5108/W5208 Series Device Search Utility 6. A progress bar will appear. The procedure should take only a few seconds to complete. 7. A message will indicate that DSU is successfully installed. You may choose to run it immediately by selecting Launch DSU.

  • Page 25: Starting Device Search Utility (Dsu)

    MGate W5108/W5208 Series Device Search Utility Starting Device Search Utility (DSU) DSU is a Windows-based utility that is used to configure the MGate W5108/W5208 Series. Before running DSU, make sure that your PC and the MGate W5108/W5208 are connected to the same network. Alternatively, the MGate W5108/W5208 Series may be connected directly to the PC for configuration purposes.

  • Page 26: Broadcast Search

    MGate W5108/W5208 Series Device Search Utility Broadcast Search Click Search and a new Search window will pop up.
  • Page 27 MGate W5108/W5208 Series Device Search Utility When the search is complete, every MGate W5108/W5208 found on the LAN will appear in the DSU window. The MAC address, IP address, and Firmware version of each unit will be shown. Select the one you would like to configure.

  • Page 28: Search Ip

    MGate W5108/W5208 Series Device Search Utility Search IP Click Search IP if you know the IP address of the unit and wish to connect to it directly. Enter the unit’s IP address and click OK. If the search is successful, the unit will be listed in the DSU window. Right click the unit to open a popup list of possible actions, or double click a unit to open the web console.

  • Page 29: Upgrading The Firmware

    MGate W5108/W5208 Series Device Search Utility The Assign IP function allows you to change the unit’s IP addresses. Use the Un-Lock function to execute Import, Export, and Upgrade actions. The default account and password are Admin and Moxa. To Import or Export the configuration file, click the icons to Import the configuration file from a laptop or Export the currently used unit’s configuration file to a laptop.

  • Page 30: Web Console Configuration

    Web Console Configuration The MGate W5108/W5208 provides a web console for easy configuration through a web browser such as Microsoft Internet Explorer or Google Chrome. The following topics are covered in this chapter:  Overview  Basic Settings  Network Settings ...

  • Page 31: Overview

    MGate W5108/W5208 Series Web Console Configuration Overview To connect to the MGate web console, open a web browser and enter the MGate gateway’s IP address. http://<MGate IP address> The default IP addresses is 192.168.127.254. If you are unable to log in to the unit, you can use the DSU to first search for the unit.

  • Page 32: Network Settings

    MGate W5108/W5208 Series Web Console Configuration Network Settings General Settings The Network tab is where the unit’s network settings are configured. You can modify the IP Configuration, IP Address, Netmask, Default Gateway, and DNS. Parameter Value Notes IP configuration Static IP, DHCP, BootP, or Select “Static IP”...

  • Page 33: Wlan Settings

    MGate W5108/W5208 Series Web Console Configuration WLAN Settings The MGate can operate in Ad-hoc mode or Infrastructure Mode. For all wireless networking devices, there are two network types for communication with another wireless device. Devices that are configured for Ad-hoc Mode automatically detect and communicate directly with each other and do not require a wireless access point (AP) or gateway.
  • Page 34 MGate W5108/W5208 Series Web Console Configuration Parameter Value Notes Authentication Open System, Shared Key, This field specifies how wireless devices will be WPA, WPA-PSK, WPA2, authenticated. If a RADIUS server is used, this setting WPA2-PSK must match the setting on the RADIUS server. Open System: The MGate will simply announce a desire to associate with another station or access point.
  • Page 35 MGate W5108/W5208 Series Web Console Configuration Parameter Value Notes Encryption Disable, WEP, TKIP, AES-CCMP This field specifies the type of encryption to use during wireless communication. Different encryption methods are available depending on the Authentication setting. Also, each encryption method has its own set of parameters that may also require configuration.
  • Page 36 MGate W5108/W5208 Series Web Console Configuration Parameter Value Notes WEP key source Manual, Generate WEP keys by This field specifies whether the WEP key will be passphrase generated manually or through a user-specified passphrase. A passphrase is equivalent to a free-text password that will be used to generate the WEP key.

  • Page 37: Serial Settings

    MGate W5108/W5208 Series Web Console Configuration Parameter Value Notes Trusted Server (Text) This field is available for PEAP, TLS, and TTLS EAP Certificate. methods only. It displays information on the trusted server certificate that is installed on the MGate. To install a trusted server certificate, visit the corresponding page in the System Management >...

  • Page 38: Protocol Settings

    MGate W5108/W5208 Series Web Console Configuration Protocol Settings Detailed protocol settings for the communication protocols used by the gateway. Protocol Assignment The MGate W5108/W5208 series gateways support three kinds of communication protocols: Modbus, DNP3, and Raw TCP. For the MGate W5208 series, two serial ports can be set to different protocols. In Modbus mode, the MGate converts Modbus RTU/ASCII to Modbus TCP through the WiFi interface.
  • Page 39 MGate W5108/W5208 Series Web Console Configuration Modbus Protocol Choose from 4 detailed settings: Mode, Slave ID Map, Priority Control, and Advanced Settings. Mode Click on one of the serial ports to select the role of the Modbus serial device connected to that port. The following detailed Modbus settings page will appear when you click on one of the serial ports.
  • Page 40 MGate W5108/W5208 Series Web Console Configuration Parameters Description Inter-character timeout Use this function to determine the timeout interval between characters for Modbus (only for Modbus RTU) devices that cannot receive Rx signals within an expected time interval. If the response is timed out, all received data will be discarded. The MGate W5108/W5208 will automatically determine the timeout interval if the timeout value is set to 0.
  • Page 41 MGate W5108/W5208 Series Web Console Configuration How Slave ID Map is Defined The slave ID map consists of entries (channels), the range of virtual ID versus real ID, and the destination of the serial port. Setting Value Notes This specifies the range of IDs that will be routed to the (numeric range from selected set of slave devices.

  • Page 42: Priority Control

    MGate W5108/W5208 Series Web Console Configuration Priority Control The Priority Control tab is where emergency requests are enabled and configured. Priority control is designed for requests that are sent to Modbus RTU/ASCII slaves. Since Modbus RTU/ASCII slaves cannot handle multiple requests, the Modbus gateway must send each request individually and wait for the response before sending the next request.
  • Page 43 MGate W5108/W5208 Series Web Console Configuration Parameter Value Initial delay 0-30000 ms Modbus TCP exception Enable or Disable Modbus TCP listen port 1-65535 Modbus TCP response timeout 10-120000 ms Self-Slave ID for digital I/O control 1-255 Initial Delay Some Modbus slaves may take more time to boot up than other devices. For certain environments, this may cause the entire system to suffer from repeated exceptions during the initial boot-up.

  • Page 44: Dnp3 Protocol

    MGate W5108/W5208 Series Web Console Configuration DNP3 Protocol The MGate W5108/W5208 series gateways support DNP3 protocols. The MGate converts Outstation and Master’s data between DNP3 IP and DNP3 serial. If the serial port is connecting with an Outstation device, set the operation mode of the port as Outstation.
  • Page 45 MGate W5108/W5208 Series Web Console Configuration Similarly, for DNP3 packet frames coming from the serial side, you need to assign the DNP3 device’s address and IP address. The default IP address is 192.168.1.1; modify the IP address based on your DNP3 equipment settings.

  • Page 46: Raw Tcp Socket

    MGate W5108/W5208 Series Web Console Configuration Raw TCP Socket The MGate W5108/W5208 series gateways support a raw data transmission mechanism for user-developed programs. It includes TCP Server mode and TCP Client mode. The timing for using these two modes depends on whether the connection is initiated from the gateway or from the network host.
  • Page 47 MGate W5108/W5208 Series Web Console Configuration Parameters Value Description TCP alive check time Default: 7 minutes This field specifies how long the MGate will wait for a 0~99 minutes response to “keep alive” packets before closing the TCP connection. The MGate checks connection status by sending periodic “keep alive”...
  • Page 48 MGate W5108/W5208 Series Web Console Configuration Parameters Value Description Connection goes down always low, This field specifies what happens to the RTS and DTR RTS/DTR always high signals when the Ethernet connection goes down. For some applications, serial devices need to know the Ethernet link status through RTS or DTR signals sent through the serial port.

  • Page 49: System Management

    MGate W5108/W5208 Series Web Console Configuration Parameters Value Description Force transmit 0 to 65535 ms This field controls data packing by the amount of time that elapses between bits of data. When using this field, make sure that Inactivity time is disabled or set to a larger value.
  • Page 50 MGate W5108/W5208 Series Web Console Configuration These settings are used to restrict access to the module by IP address. Only IP addresses on the list will be allowed access to the device. You may add a specific address or range of addresses by using a combination of IP address and netmask, as follows: To allow access to a specific IP address Enter the IP address in the corresponding field;...
  • Page 51 MGate W5108/W5208 Series Web Console Configuration Email Alert Settings Parameters Description Mail server The mail server’s domain name or IP address. User name This field is for your mail server’s user name, if required. Password This field is for your mail server’s password, if required. From e-mail address This is the e-mail address from which automatic e-mail warnings will be sent.
  • Page 52 MGate W5108/W5208 Series Web Console Configuration SNMP Agent Settings Parameters Description SNMP To enable the SNMP Agent function, select the Enable option, and enter a community name (e.g., public). Contact name The optional SNMP contact information usually includes an emergency contact name and telephone or pager number.
  • Page 53 MGate W5108/W5208 Series Web Console Configuration LLDP Parameters Description Message transmit Default is 30 seconds. The allowable range is from 5 through 32,768 seconds. interval Misc. Settings This page includes console settings, password, RADIUS Server, and User Table. Console Settings Parameters Value Description...

  • Page 54: Load Factory Default

    MGate W5108/W5208 Series Web Console Configuration ATTENTION DO NOT turn off the MGate power before the firmware upgrade progress completes. The MGate will be erasing the old firmware to make room for the new firmware to flash memory. If you power off the MGate and terminate the progress, the flash memory will contain corrupted firmware and the MGate will fail to boot.

  • Page 55: System Monitoring

    MGate W5108/W5208 Series Web Console Configuration Click Submit to restore the unit to factory default values. ATTENTION Load Default will completely reset the configuration of the unit, and all of the parameters you have saved will be discarded. Do not use this function unless you are sure you want to completely reset your unit. Certificate Use this function to load the Ethernet SSL certificate.

  • Page 56: System Status

    MGate W5108/W5208 Series Web Console Configuration Serial Port Error Count The Serial Port Error Count page is located under Serial Status in the System Monitoring folder. On this page, you can view the current frame number, parity, overrun, and break errors for each serial port. Serial Port Settings The Serial Port Settings page is located under Serial Status in the System Monitoring folder.

  • Page 57: System Log

    MGate W5108/W5208 Series Web Console Configuration System Log Relay Status The MGate gateway includes a built-in relay circuit that is triggered in the event of a power failure or if the Ethernet link is down. You can view the relay status on this page. When a warning event occurs, the relay circuit will activate the warning device, such as a beeper.
  • Page 58 MGate W5108/W5208 Series Web Console Configuration LLDP Table The page displays LLDP related information, including Port, Neighbor ID, Neighbor Port, Neighbor Port Description, and Neighbor System. WLAN status The WLAN status can be checked on this page, including IP address, SSID, Channel, security setting, etc. 4-29...

  • Page 59: Protocol Status

    MGate W5108/W5208 Series Web Console Configuration Protocol Status The MGate W5108/W5208 series gateways now support Modbus/DNP3/Raw data traffic monitoring. For troubleshooting or management purposes, you can monitor the protocol’s data passing through the MGate W5108/W5208 on the network. Rather than simply echoing the data, this traffic monitoring function shows the data in an intelligent, easy-to-understand format with clearly designated fields, including source, type, destination, contents, and more.

  • Page 60: Mxconfig

    MGate W5108/W5208 Series Web Console Configuration MXconfig Moxa’s MXconfig is a comprehensive Windows-based utility that is used to install, configure, and maintain multiple Moxa devices in industrial networks. This suite of useful tools helps users set the IP addresses of multiple devices with one click, configure the redundant protocols and VLAN settings, modify multiple network configurations of multiple Moxa devices, upload firmware to multiple devices, export/import configuration files, copy configuration settings across devices, easily link to web and telnet consoles, and test device connectivity.

  • Page 61: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 62 MGate W5108/W5208 Series Federal Communication Commission Interference Statement Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1.
