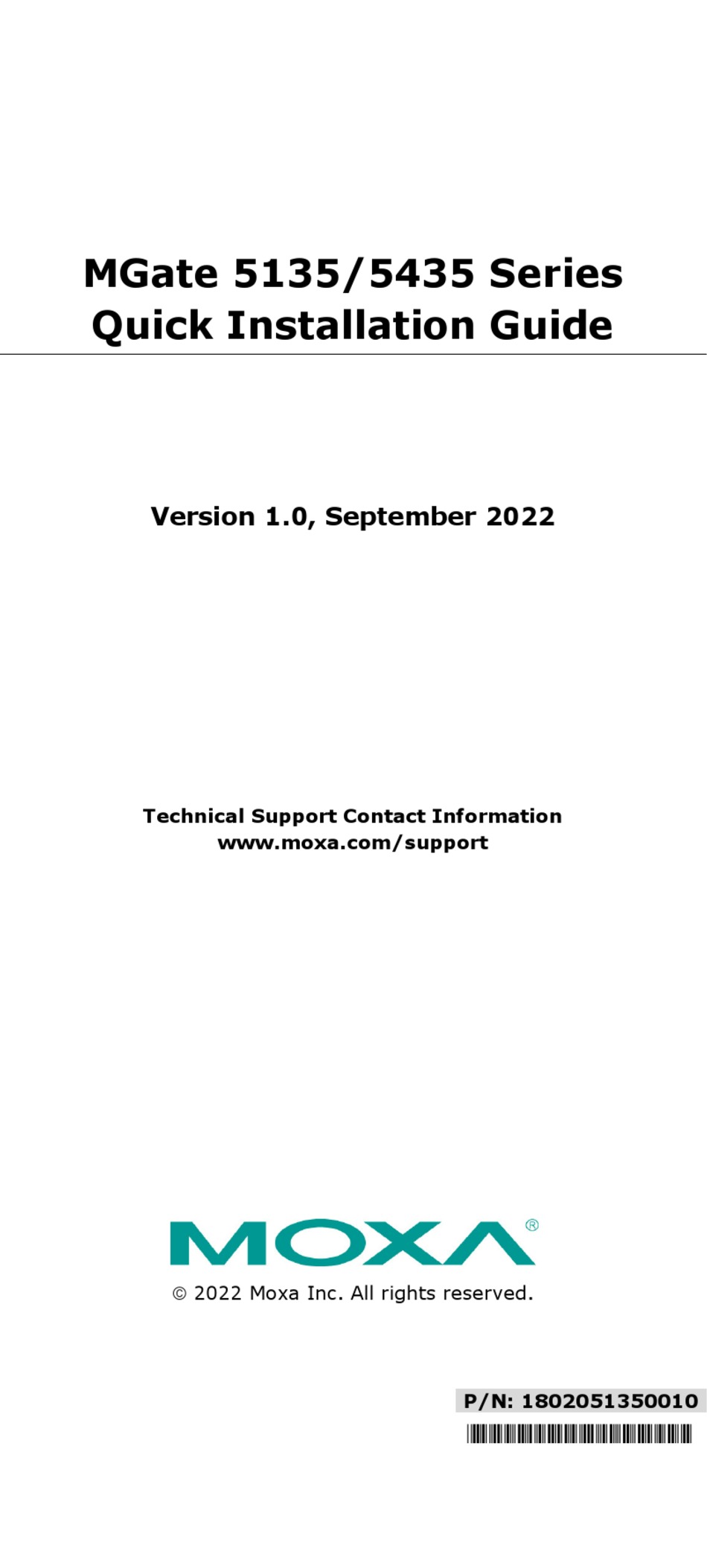

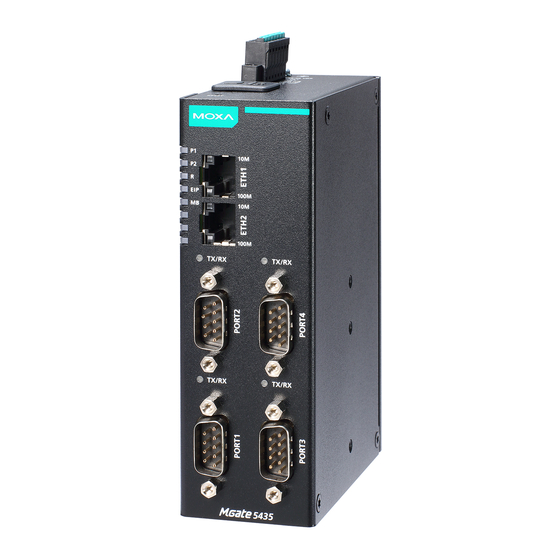

MGate 5135/5435 Series
Quick Installation Guide
Version 1.0, September 2022
Technical Support Contact Information
www.moxa.com/support
 2022 Moxa Inc. All rights reserved.
P/N: 1802051350010
*1802051350010*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGate 5135 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies MGate 5135 Series

  • Page 1 MGate 5135/5435 Series Quick Installation Guide Version 1.0, September 2022 Technical Support Contact Information www.moxa.com/support  2022 Moxa Inc. All rights reserved. P/N: 1802051350010 *1802051350010*...
  • Page 2 Overview The MGate 5135/5435 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications. Package Checklist Before installing the MGate 5135/5435, verify that the package contains the following items: • 1 MGate 5135 or MGate 5435 gateway • Quick installation guide (printed) •...
  • Page 3 Color Description 4. TCP connection failed (only for Modbus TCP). Steady ON: Ethernet link on at 100Mbps. Green Blinking: Data transmitting at 100Mbps. ETH 1, ETH 2 Steady ON: Ethernet link on at 10Mbps. Amber Blinking: Data transmitting at 10Mbps. Ethernet is not connected.
  • Page 4 Hardware Installation Procedure 1. Connect the power adapter. Connect the 12 to 48 VDC power line or DIN-rail power supply to the terminal block of the MGate 5135/5435 device. 2. Use a Modbus serial cable to connect the MGate to a Modbus slave device.
  • Page 5 Input 1 Specifications Power Parameters Power Input 12 to 48 VDC Power Consumption MGate 5135 Series: 455 mA max. MGate 5435 Series: 455 mA max. Relays Contact Current Rating Resistive load: 2 A @ 30 VDC Environmental Limits Operating Standard models: -10 to 60°C (14 to 140°F) Temperature Wide temp.
  • Page 6 Weight MGate 5135 Series: 294 g (0.65 lb) MGate 5435 Series: 403 g (0.89 lb) Reliability Alert Tools Built-in buzzer and RTC MTBF MGate 5135 Series: 1,240,821 hrs. MGate 5435 Series: 689,989 hrs. ATTENTION Power terminal plug wiring size is 28-14 AWG, tighten to 1.7 in-lbs, wire Min.
