MGate 5105-MB-EIP

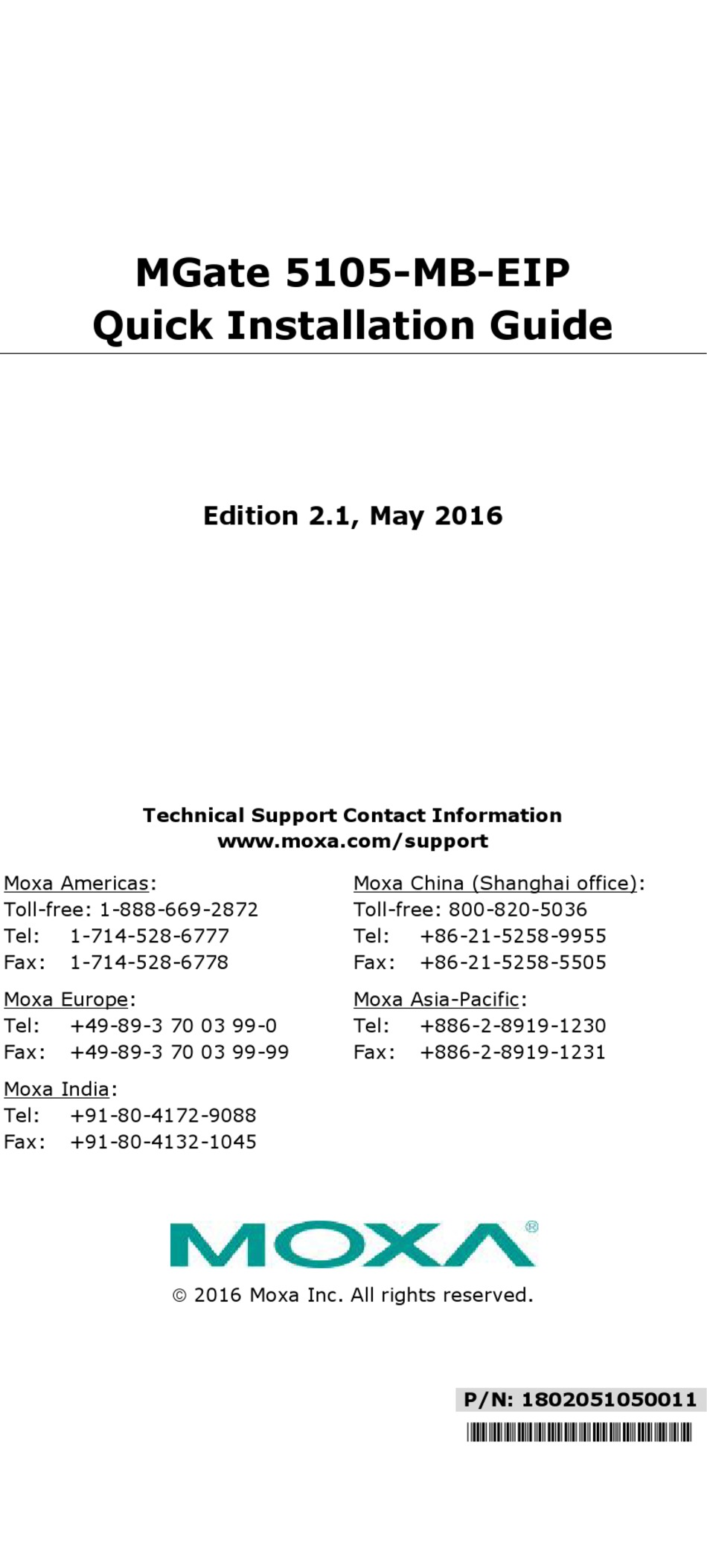

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Edition 2.1, May 2016
Technical Support Contact Information
www.moxa.com/support
2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802051050011
*1802051050011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies MGate 5105-MB-EIP
Summary of Contents for Moxa Technologies MGate 5105-MB-EIP
- Page 1 MGate 5105-MB-EIP Quick Installation Guide Edition 2.1, May 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

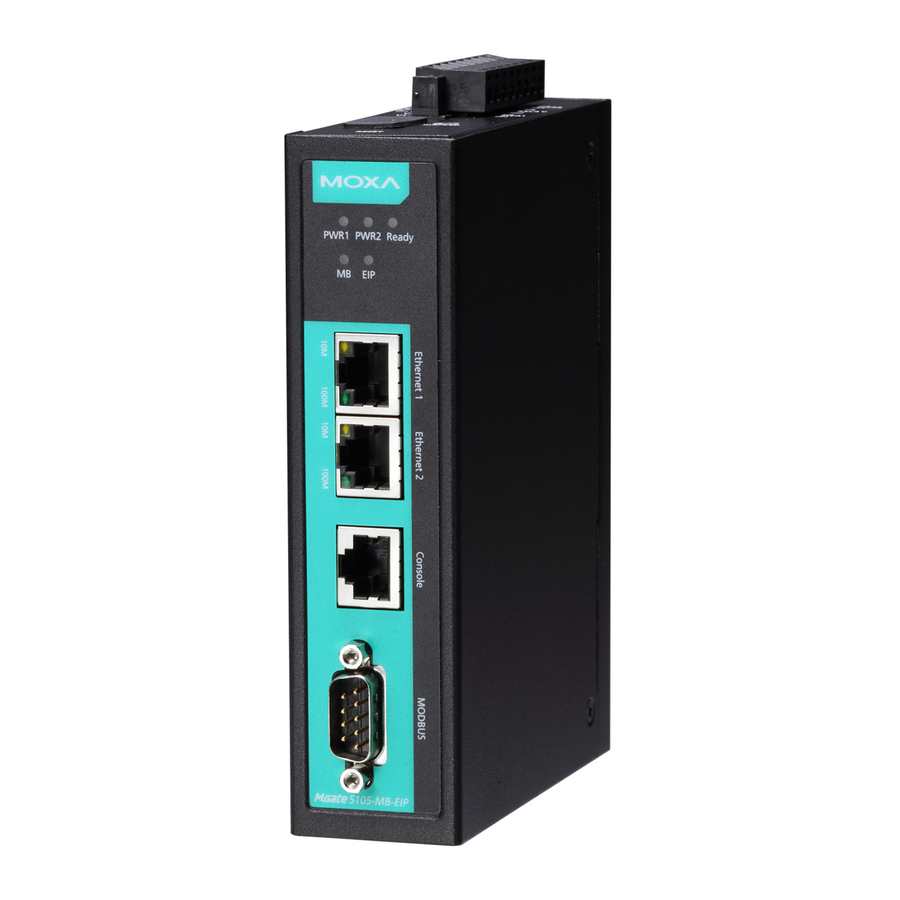

- Page 2 Overview The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications. Package Checklist Before installing the MGate 5105-MB-EIP, verify that the package contains the following items: • 1 MGate 5105-MB-EIP gateway • RJ45 to DB9 cable (for console use) •...
- Page 3 Hardware Introduction LED Indicators Color Description Power is off or a fault condition exists Steady: Power is on, and the MGate is functioning normally Green Blinking: The MGate has been located by the MGate Manager’s Location function Ready Steady: Power is on, and the MGate is booting up Blinking slowly: Indicates an IP conflict, or the DHCP or BOOTP server is not responding properly Flashing quickly: microSD card failed...
- Page 4 3. Use an Ethernet cable to connect the MGate to the EtherNet/IP controller. 4. The MGate 5105-MB-EIP is designed to be attached to a DIN rail or mounted on a wall. For DIN-rail mounting, push down the spring and properly attach it to the DIN rail until it “snaps” into place. For wall mounting, install the wall-mount kit (optional) first and then screw the device onto the wall.
- Page 5 Software Installation Information To install MGate Manager, insert the MGate Documentation and Software CD into your PC’s CD-ROM drive. Then, run the following setup program to begin the installation process from the “Software” directory: MGM_Setup_[Version]_Build_[DateTime].exe The filename of the latest version may have the following format: MGM_Setup_Verx.x.x_Build_xxxxxxxx.exe.
- Page 6 Power Input and Relay Output Pinouts Shielded Power Power N.O. Common N.C. Power Power Ground Input 2 Input 2 Input 1 Input 1 Specifications Power Requirements Power Input 12 to 48 VDC Power Consumption 455 mA @ 12 VDC, 125 mA @ 48 VDC Operating Temperature Standard models: 0 to 60°C (32 to 140°F)
- Page 7 • The equipment must be suitable for use in Class I, Division 2, Groups A, B, C, D, or nonhazardous locations only. • WARNING - EXPLOSION HAZARD - Do not disconnect equipment unless power has been switched off or the area is known to be nonhazardous.
